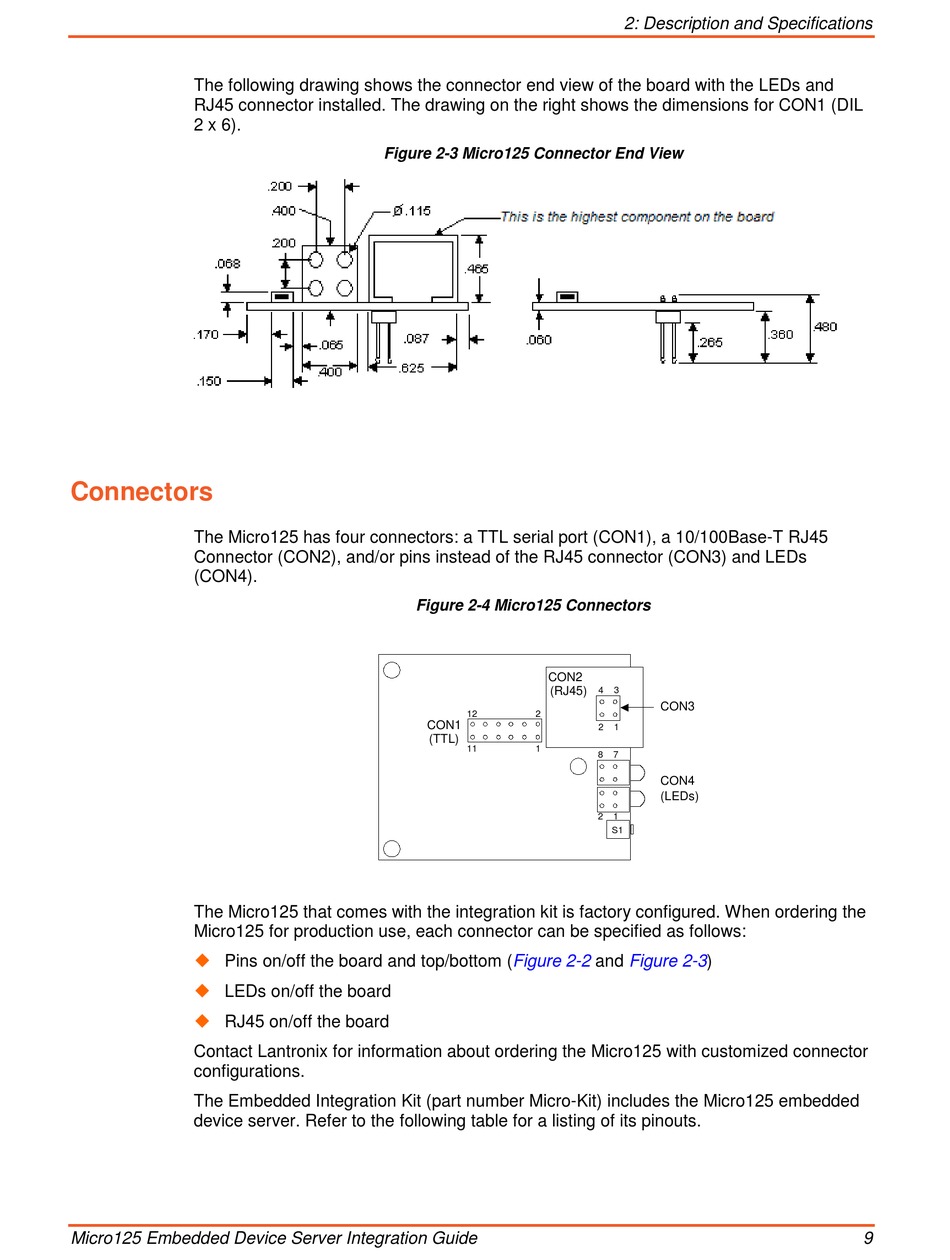

The following drawing shows the connector end view of the board with the LEDs and
RJ45 connector installed. The drawing on the right shows the dimensions for CON1 (DIL
2 x 6).

Connectors

The Micro125 has four connectors: a TTL serial port (CON1), a 10/100Base-T RJ45
Connector (CON2), and/or pins instead of the RJ45 connector (CON3) and LEDs
(CON4).
The Micro125 that comes with the integration kit is factory configured. When ordering the
Micro125 for production use, each connector can be specified as follows:

Pins on/off the board and top/bottom

LEDs on/off the board

RJ45 on/off the board
Contact Lantronix for information about ordering the Micro125 with customized connector
configurations.
The Embedded Integration Kit (part number Micro-Kit) includes the Micro125 embedded
device server. Refer to the following table for a listing of its pinouts.
Micro125 Embedded Device Server Integration Guide

Figure 2-3 Micro125 Connector End View

Figure 2-4 Micro125 Connectors

CON2
(RJ45)
12 2
CON1
(TTL)
11 1
(Figure 2-2
2: Description and Specifications
4 3
CON3
2 1
8 7
CON4
(LEDs)
2 1
S1
and Figure 2-3)
