Product Information Label; Technical Specifications; Figure 2-7 Product Label; Table 2-3 Micro125 Technical Specifications - Lantronix Micro125 Integration Manual

Product Information Label

The product information label contains important information about your specific unit,
such as its product number, revision number, manufacturing date and mac address.
Revision Number

Technical Specifications

Category
CPU, Memory
Firmware
Serial Interface
Serial Line Formats
Board Dimensions
Weight
Modem Control
Flow Control
Network Interface
Compatibility
Power Requirements
Protocols Supported
LEDs
Management
Security
Internal Web Server
Temperature
Micro125 Embedded Device Server Integration Guide

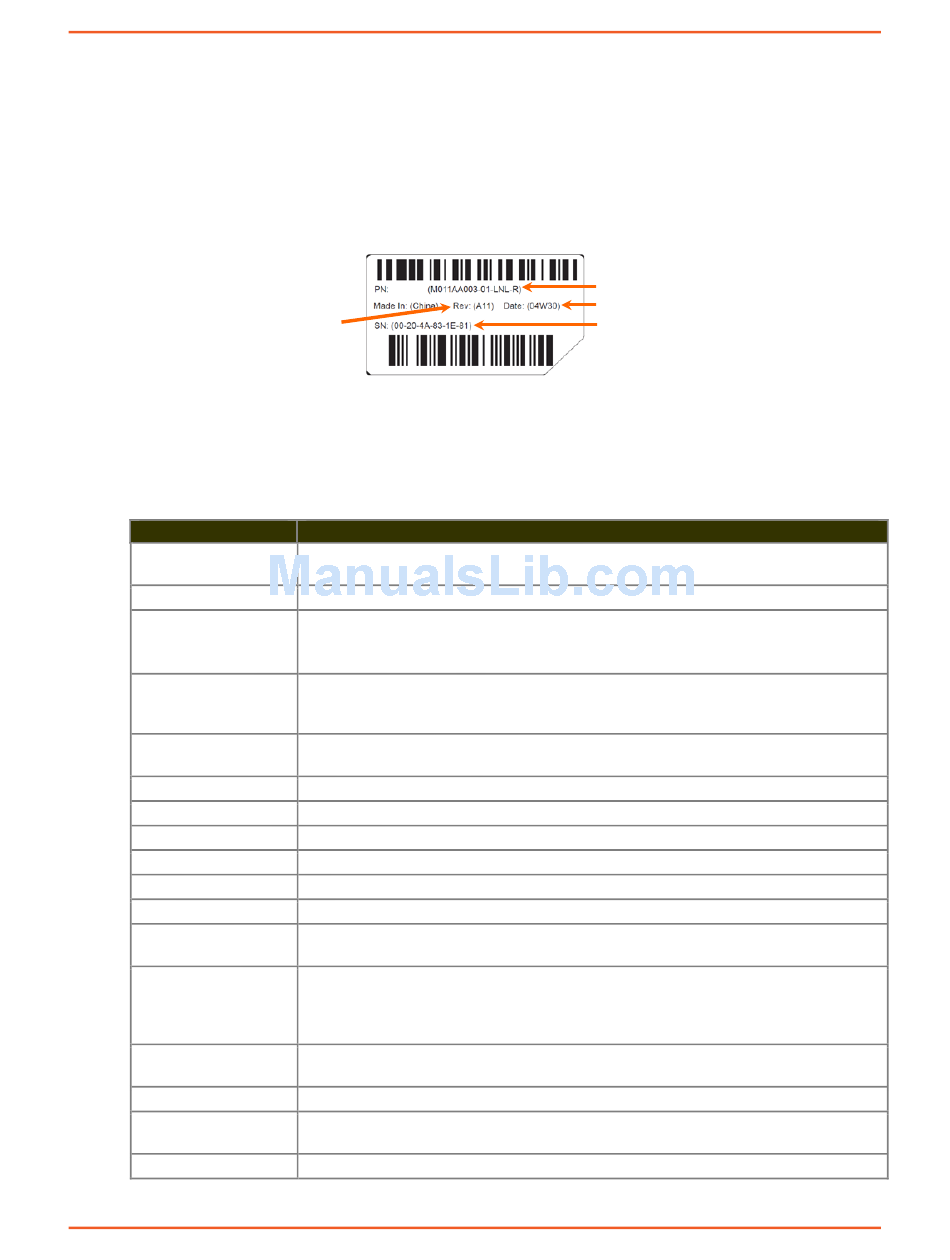

Figure 2-7 Product Label

Table 2-3 Micro125 Technical Specifications

Description
Lantronix DSTni-EX 186 CPU, 256-Kbyte zero wait state SRAM, 512-Kbyte flash,
16-Kbyte boot ROM
Upgradeable via TFTP and serial port
2 TTL serial interfaces (Asynchronous).
5V-level input signals. 3.3 V-level output signals. Through-hole plated pins, DIL.
Note: the reset input is 3.3V tolerant.
Data bits: 7 or 8
Stop bits: 1 or 2
Parity: odd, even, none
Height: 1.575in (40.00 mm)
Width: 1.935in (49.15 mm)
0.7 ounces
DTR, RTS, CTS, DCD
XON/XOFF (software), CTS/RTS (hardware), None
RJ45 (10/100Base-T) Ethernet
Ethernet: Version 2.0/IEEE 802.3
5VDC (±5%) regulated @ 210mA
ARP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, and
HTTP
Channel 1 (solid Green = idle, blink = active)
Channel 2 (solid Yellow = idle, blink = active)
Diagnostics (Red, in combination with Channel 1)
Network Link (Green)
Internal web server, SNMP (read only)
Serial login, Telnet login
Password protection, optional Rijndael 256-bit encryption
Serves static Web pages and Java applets
Storage capacity: 384 Kbytes
Standard Temperature Operating Range: 0° to 70°C (32° to 158°F)
2: Description and Specifications
Part Number
Manufacturing Date
MAC Address
(See Drawing)
