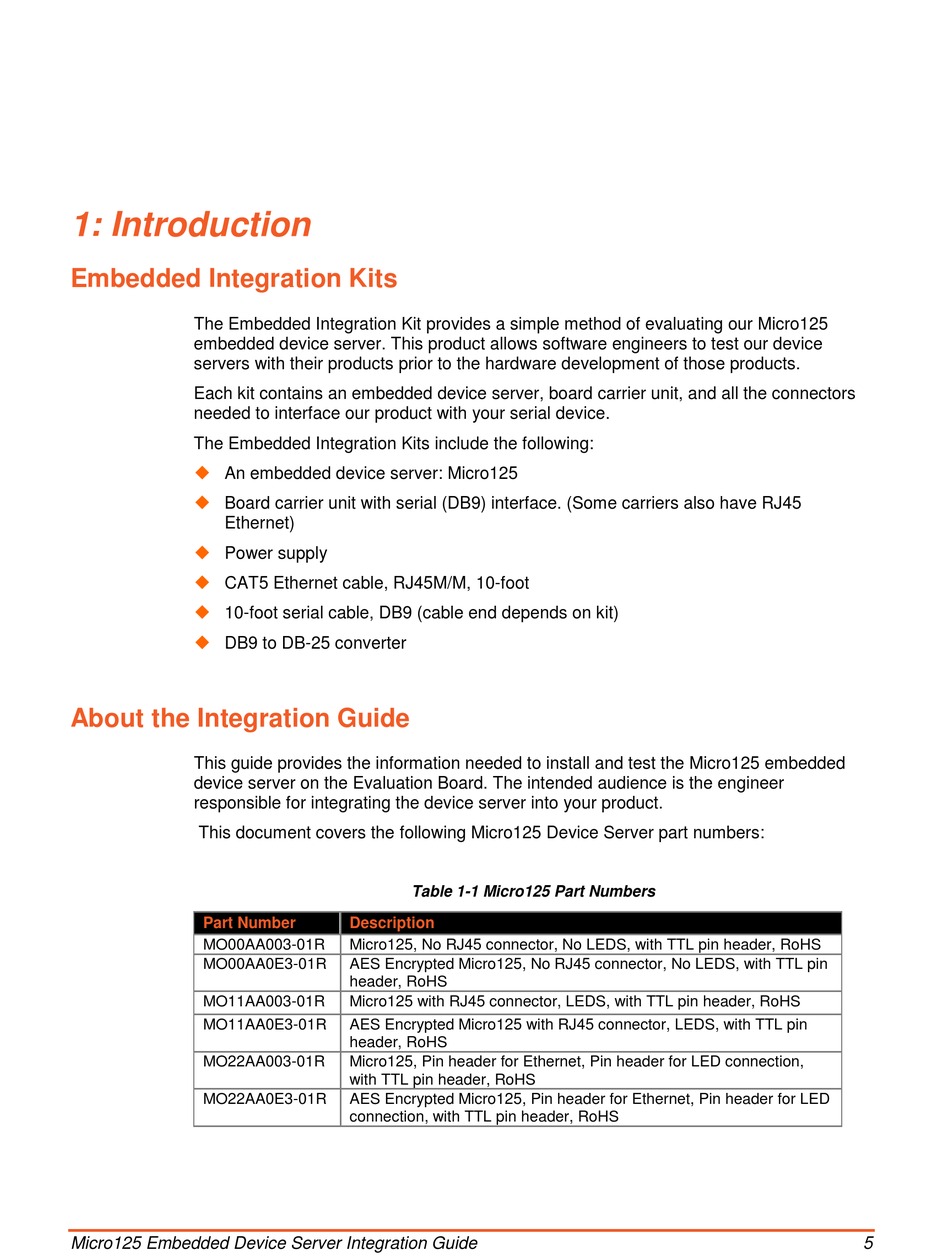

1: Introduction; 1: Introduction Embedded Integration Kits; About The Integration Guide; Table 1-1 Micro125 Part Numbers - Lantronix Micro125 Integration Manual

1: Introduction

Embedded Integration Kits
The Embedded Integration Kit provides a simple method of evaluating our Micro125
embedded device server. This product allows software engineers to test our device
servers with their products prior to the hardware development of those products.
Each kit contains an embedded device server, board carrier unit, and all the connectors
needed to interface our product with your serial device.
The Embedded Integration Kits include the following:

An embedded device server: Micro125

Board carrier unit with serial (DB9) interface. (Some carriers also have RJ45
Ethernet)

Power supply

CAT5 Ethernet cable, RJ45M/M, 10-foot

10-foot serial cable, DB9 (cable end depends on kit)

DB9 to DB-25 converter

About the Integration Guide

This guide provides the information needed to install and test the Micro125 embedded
device server on the Evaluation Board. The intended audience is the engineer
responsible for integrating the device server into your product.
This document covers the following Micro125 Device Server part numbers:
Part Number
MO00AA003-01R
MO00AA0E3-01R
MO11AA003-01R
MO11AA0E3-01R
MO22AA003-01R
MO22AA0E3-01R
Micro125 Embedded Device Server Integration Guide

Table 1-1 Micro125 Part Numbers

Description
Micro125, No RJ45 connector, No LEDS, with TTL pin header, RoHS
AES Encrypted Micro125, No RJ45 connector, No LEDS, with TTL pin
header, RoHS
Micro125 with RJ45 connector, LEDS, with TTL pin header, RoHS
AES Encrypted Micro125 with RJ45 connector, LEDS, with TTL pin
header, RoHS
Micro125, Pin header for Ethernet, Pin header for LED connection,
with TTL pin header, RoHS
AES Encrypted Micro125, Pin header for Ethernet, Pin header for LED
connection, with TTL pin header, RoHS
