4: Test Bed

The Micro125 Embedded Integration Kit includes a test bed (carrier board) that provides
serial connections to the device server. The Micro125 device server provides a network
10/100Base-T RJ45. The test bed contains a power LED, TTL to RS-232 and RS-232 to
TTL conversion hardware, a 3-pin connector for the second serial port, and mounting
hardware for the Micro125.
The test bed allows software engineers to immediately begin developing and testing
software applications for the device server, rather than delaying the process until the
hardware interface for their product is complete.

Board Layout

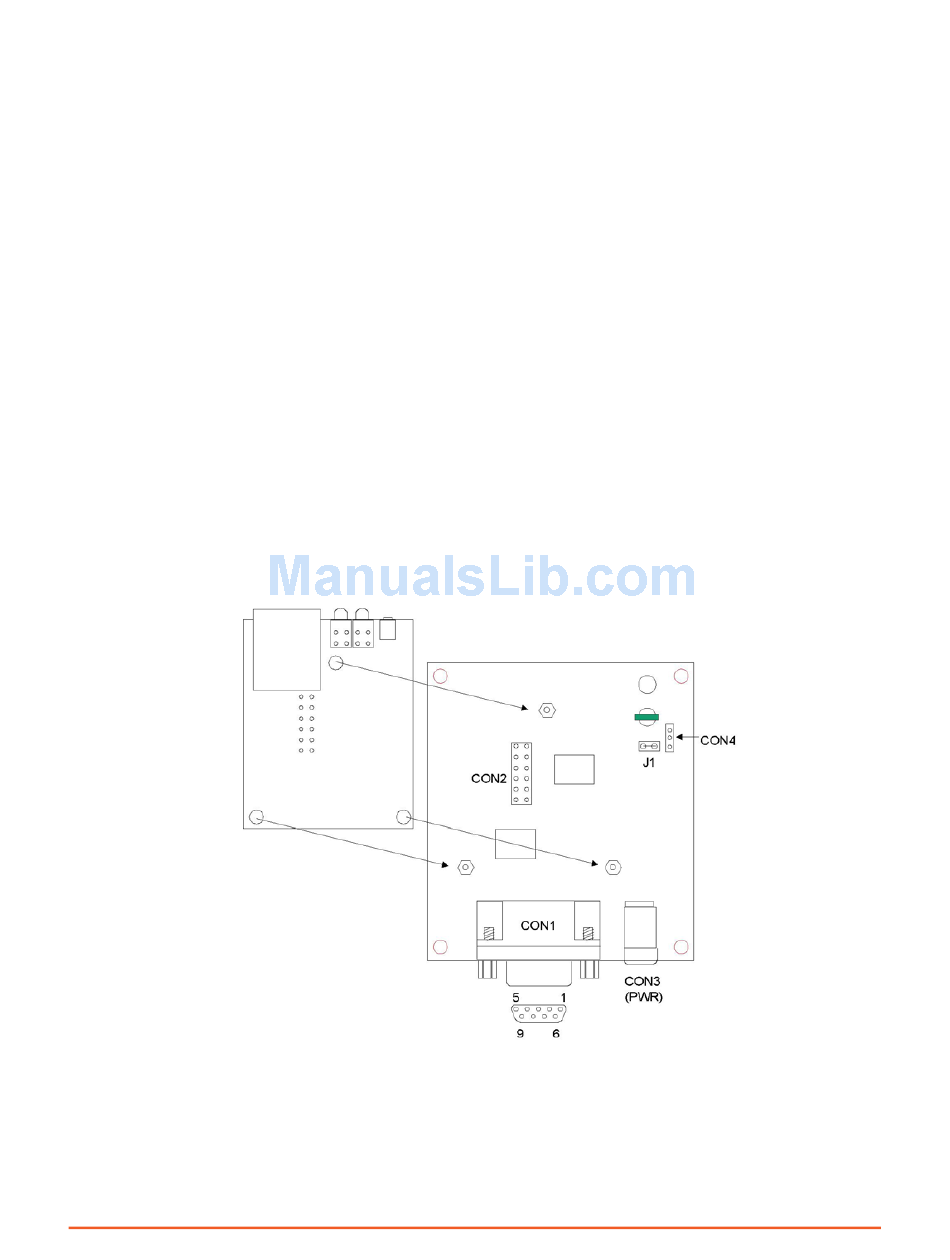

Install the Micro125 onto the carrier board as shown below.
Micro125 Embedded Device Server Integration Guide

Figure 4-1 Carrier Board
