Layout and Dimensions

The Micro125 integrates into products quickly and easily. Serial interfacing is
accomplished via a TTL connector, and for Ethernet access, an optional RJ45
(10/100Base-T) connector is available. The orientation of its interface pins can be
specified to fit your product. It requires 5 volts DC of regulated power with maximum
current of 210mA.

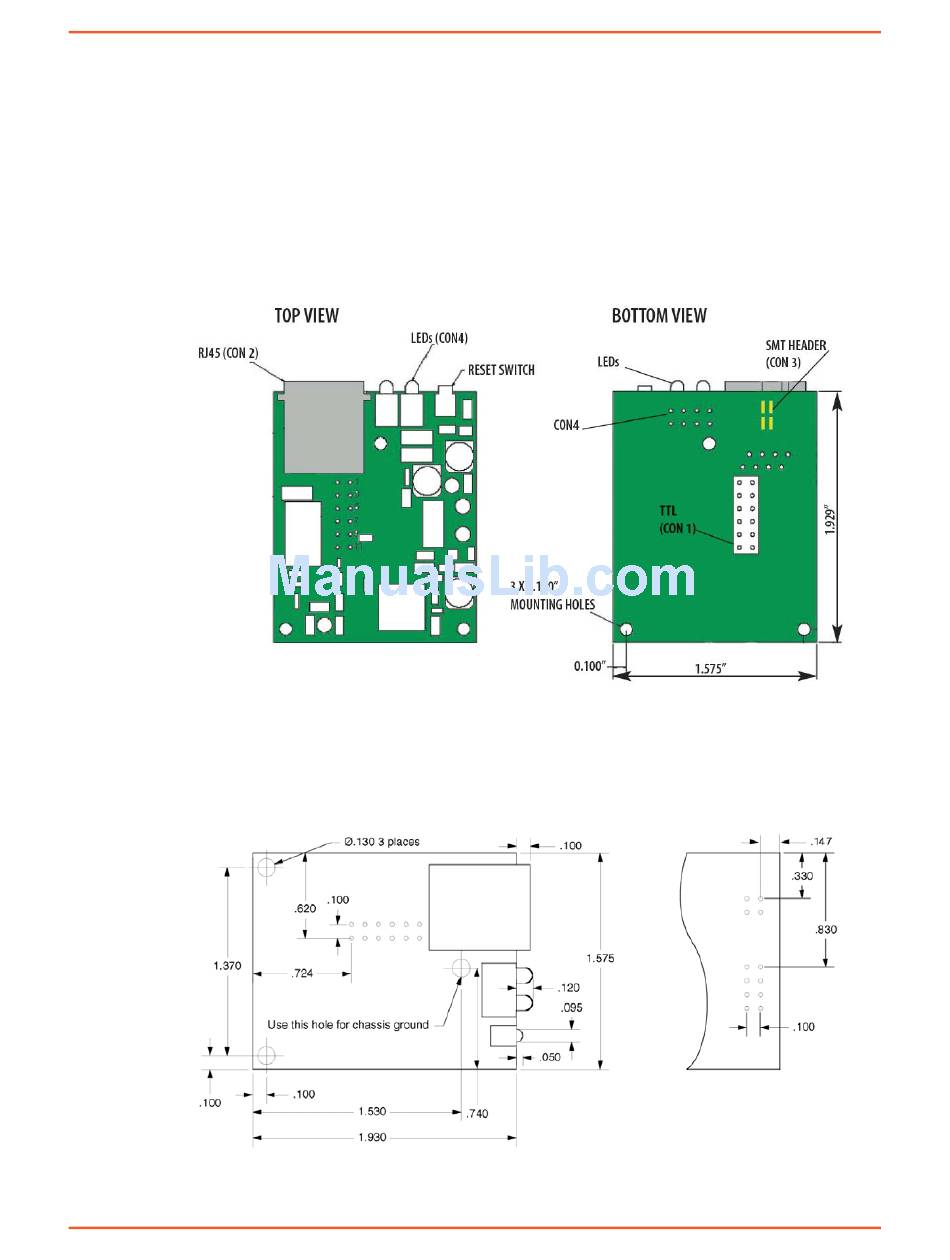

The following drawing is a top view of the Micro125.
Micro125 Embedded Device Server Integration Guide

Figure 2-1 Micro125 Board Layout

Figure 2-2 Micro125 Top View
