NOTE: For FECG connection, use Fetal, Fet/Mat, and Reference connectors on the PS320 simulator. For MECG
connection, use Fet/Mat, Maternal, and Reference connectors on the PS320 simulator.
2. Turn on the monitor unit and the PS320 fetal simulator.
3. The PS320 default settings (see below) are active. Use PS320 front panel keys to change the fetal ECG rate/
amplitude, maternal ECG rate/amplitude, TOCO level and sensitivity if necessary. Press the Enter key to
confirm selections.
PS320 default settings:
US1 = 150 BPM (static), US2 = NORMAL, FETAL ECG = 150 BPM (Sensitivity 1 µV), MAT. ECG = 80 BPM
(Sensitivity 1 µV), TOCO = 00 (Sensitivity 5 µV)
4. For additional settings, use the Main, Sub, and Scrolls keys of PS320 front panel to access the different
parameters to set. Press Enter to confirm the selection and make the change.
5. Use the View key at any time to see the currently-active settings on the PS320 unit.
NOTE: For detailed information about operating the PS320 fetal simulator, refer to the PS320 user's manual
available to download at Fluke
© 2013 by General Electric Company. All rights reserved.

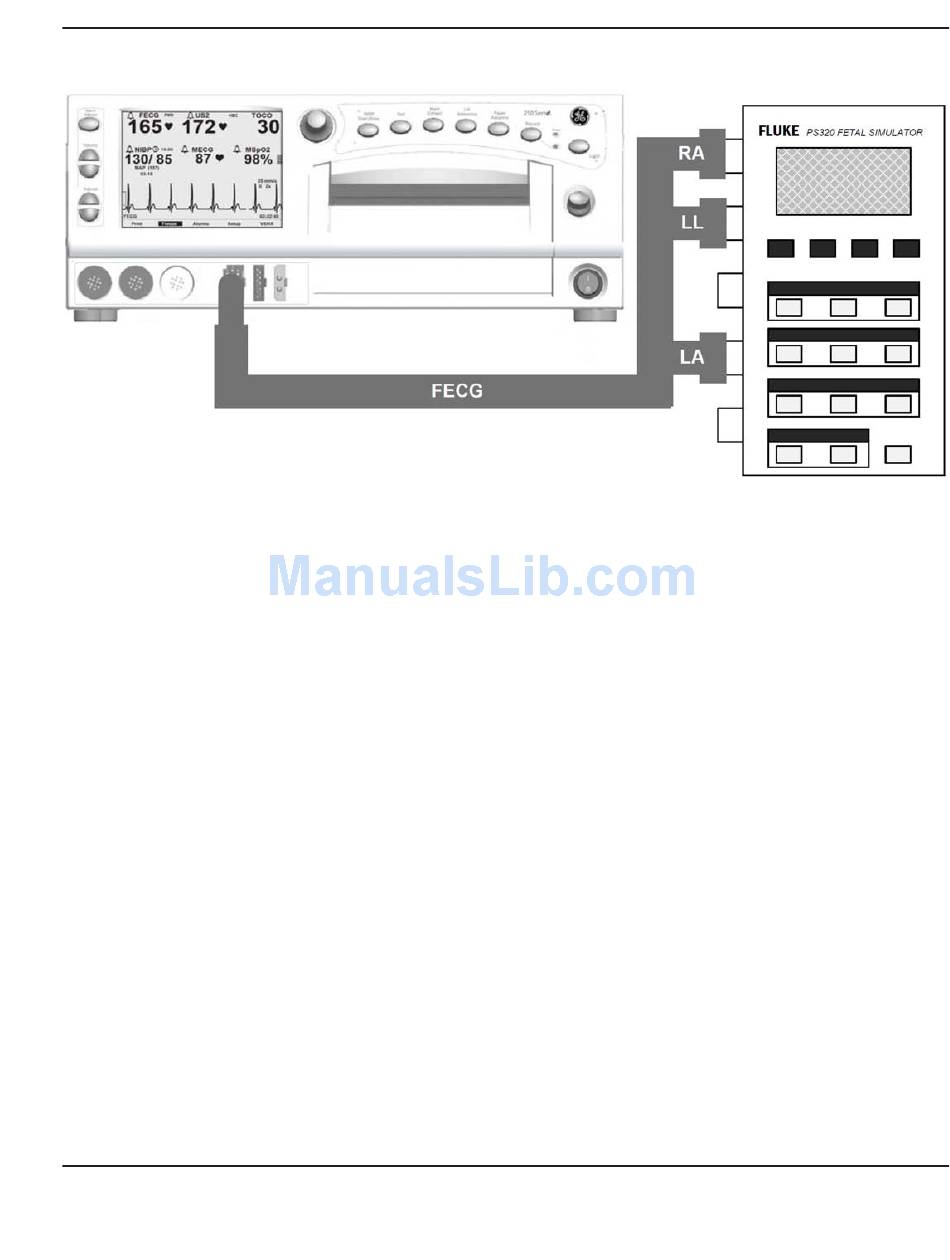

Figure D-1 PS320 Setup
®
Biomedical website (www.flukebiomedical.com).
Appendix D: PS320 Fetal Simulator Setup
2036947-001
151
