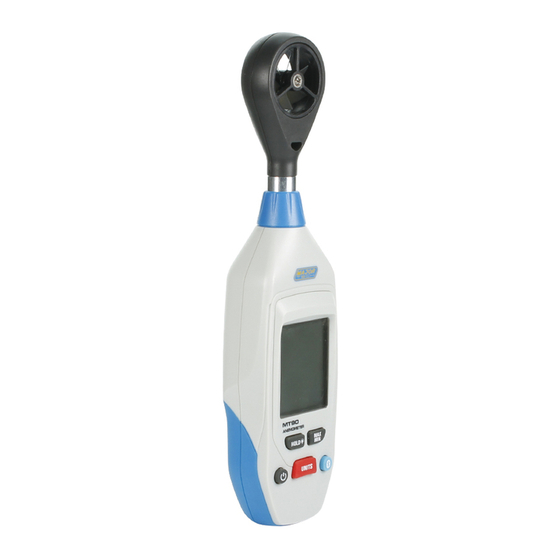

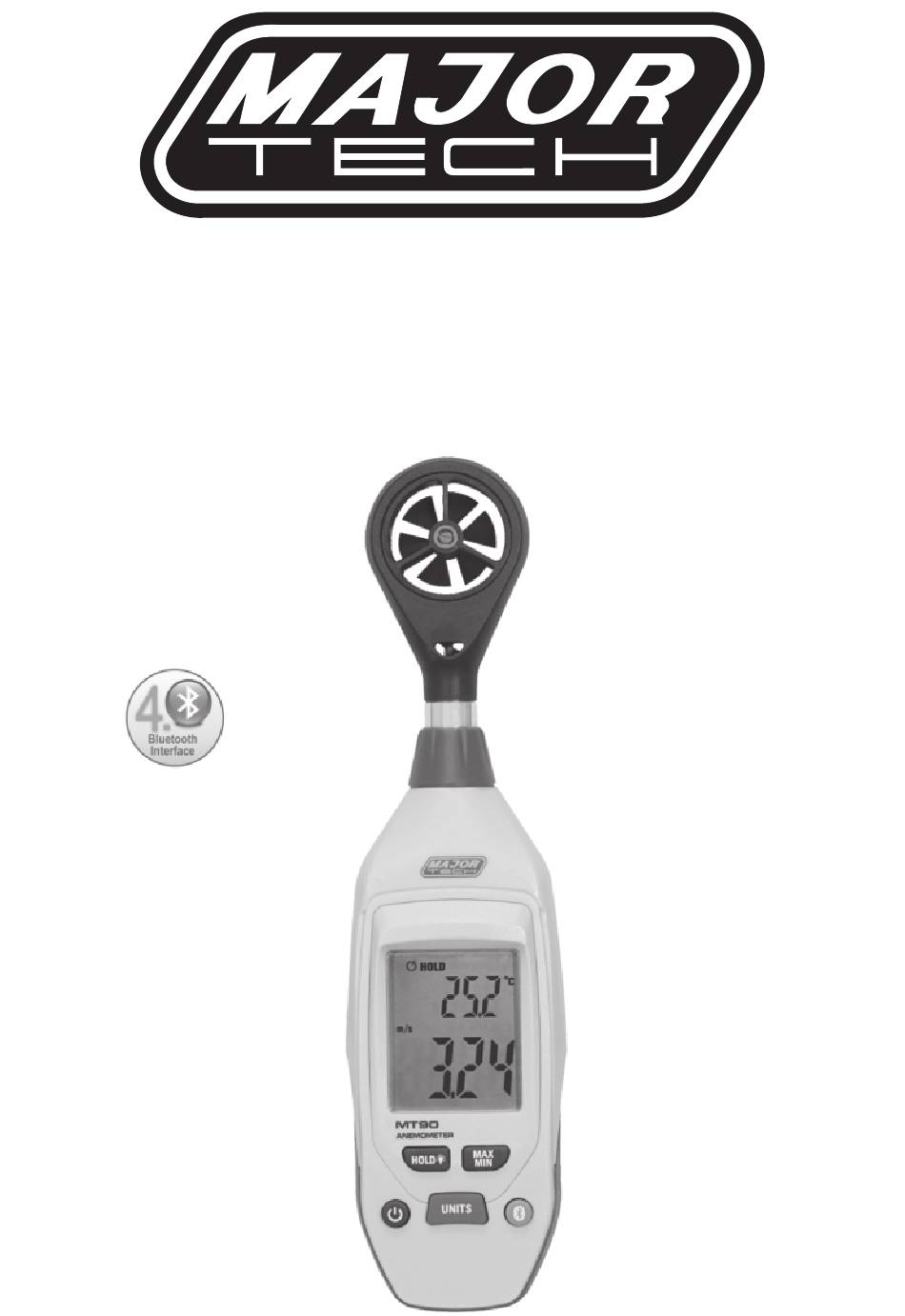

- Page 1 INSTRUCTION MANUAL MT90 MINI THERMO-ANEMOMETER...
- Page 2 Contents Page no 1. Introduction.........2 2. Features..........2 3. Display Layout........2 4. Meter Description......... 2 5. Button Description........3 6. Operation and Settings......3 7. Specifications........4...
- Page 3 1. Introduction Thank you for purchasing the Thermo-Anemometer. The MT90 is professionally designed with a completely modern look. This instrument is equipped with Bluetooth making it easy to transfer the measured data to user's smart phone. Fast, easy, accurate measurement and data analysis.
- Page 4 5. Button Description Power on/off, Auto-power off Power on: Press the button ‘ ’ to switch power on, system has a default auto power off. Hold down the button to switch the power on and disable auto power off function. Hold down the button again to enable the auto power off function .
- Page 5 MAX/MIN/AVG reading Press the MAX/MIN button for the first time, the instrument will enter Max tracking mode, the tracked max reading will display on the LCD. Press the MAX/MIN button for the second time, the instrument will enter MIN tracking mode, the tracked min reading will display on the LCD.
- Page 6 7. Specifications Air Velocity Range Resolution Accuracy 1.10-25.00m/s 0.01m/s ± (3%+0.30m/s) km/h 4.0-90.0km/h 0.1km/h ± (3%+1.0km/h) ft/min 220-4920ft/min 1ft/min ± (3%+40ft/m) 2.5-56.0MPH 0.1MPH ± (3%+0.4MPH) knots 2.2-48.0knots 0.1 knots ± (3%+0.4knots) Air temperature -10~60°C (14~140°F) 0.1°C/°F 2.0°C(4.0°F) Function Range Velocity measuring units m/s, ft/min, km/h, MPH, knots Temperature measuring units °C, °F...
- Page 8 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
