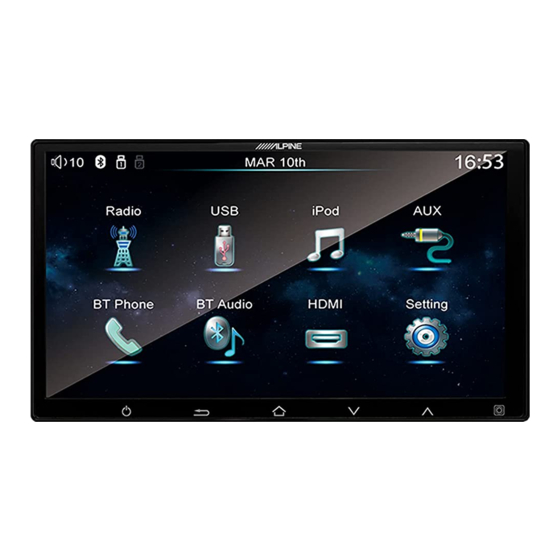

- Page 1 MULTIMEDIA STATION iXE-W400E OWNER'S MANUAL Please read before using this equipment. ALPINE ELECTRONICS OF ASIA PACIFIC CO.,LTD. 555 Rasa Tower 1,Unit 2061-2062 Phaholyothin Road,Chatuchak Bangkok,Thalland...
-
Page 2: Table Of Contents
Contents WARNING WARNING............CAUTION............NOTICE............4 Getting Started Accessory list..........Location of Controls........Power on or power off........Function description of remote control button............Function summary..........Radio..............USB..............9-11 USB/Music..........9-10 USB/Video..........10-11 USB/Picture..........iPod..............AUX..............Hands Free Phone Control......13-14 Bluetooth Audio.......... -
Page 3: Warning
Failure to do so may cause personal injury or damage Excessive volume levels that obscure sounds such to the product. Return it to your authorized Alpine as emergency vehicle sirens or road warning signals dealer or the nearest Alpine Service Centre for (train crossings, etc.) can be dangerous and may... -
Page 4: Notice
• Avoid usage or storage in the following locations: Installation Location Anywhere in the car exposed to direct sunlight or Make sure the iXE-W400E will not be installed in high temperatures. a location subjected to: Anywhere the possibility of high humidity or corrosive substances are present. - Page 5 The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is under licence. Other trademarks and trade names are those of their respective owners.
-
Page 6: Getting Started
Power on or power off Getting Started Some functions of the main unit shall not work while the car is moving. Please make sure to park your car Accessory list in a safe place and pull up the parking brake before you perform these operations. -
Page 7: Function Description Of Remote Control Button
Function description of remote control button Power Off/On Mute Volume Up Volume Down REW：Frequence backward step by step (Radio mode) ; last folder catalog (USB mode) . FF：Frequence forward step by step (Radio mode); next folder catalog (USB mode). Play/Pause Previous Track Next Track Home... -
Page 8: Function Summary
Function Summary Radio Multimedia is designed to present multiple Click to enter radio interface. functions possessed by multiple connected devices, and provide users with diversified utility functions. Display the radio frequency. Step backward: Move up to a frequency. Step forward: Move down to a frequency. Search back to a frequency accompanying valid Radio radio signal. -
Page 9: Usb
USB/Music Click to enter USB music (list) interface. Click to play music, video and picture files via USB. Choose file type through buttons on the left side of USB interface (blue highlight represents current type): Music Video Picture 10 11 Display the song album cover. -
Page 10: Usb/Video
Play mode: Click it to unfold the playing mode USB/Video menu, and select your favorite playing mode. (Blue color indicates the current mode) Click to enter USB video (list) interface. Click it to go into video playing interface/list. Click it to go into picture display interface/list. Current folder directory: Click it to get back to upper-level catalog containing video files. -
Page 11: Usb/Picture
USB/Picture Shrinkage play: Single click this area to turn to fullscreen play or wait 6 seconds to get to Click to enter USB picture (list) interface. fullscreen automatically. Fullscreen play: Single 2 click this area or press the return key on the front pannel to get back to shrinkage play interface (list);... -
Page 12: Ipod
iPod Click to enter iPod interface. Click to enter AUX interface; audio output will operate after connection of audio device. Double-finger operation Play list Swipe up/down: Volume up/down. Performer Album Song Genre Track Down Play/Pause the song Track up Random play and stop Loop play, single play on a loop, stop loop. -
Page 13: Hands Free Phone Control
Functions of BT phone are only usable under the Click icon to enter BT phone. status of bluetooth connection. iXE-W400E can set up point-to-point connection select 【Bluetooth Setting】 , and click Click icon with the mobile phone's bluetooth to enjoy handfree communication. -
Page 14: Bluetooth Audio
Phone book Click it to display received call list. BT Phone Click to enter the page of Phone Book. Click it to display dialed numbers list. Click it to display missed call list. Click it to clear the call records. Bluetooth Audio Click to enter bluetooth music play. -
Page 15: Hdmi
Notice: HDMI ①Please use the standard connection cable and adapter that match your mobile phone to assure The system support HDMI mirroring when you your normal use. connect the unit and the device which supports HDMI ②It is batter that using Samsung S5 to connect output function , such as DTV, Android,smartphone. -
Page 16: Setting
Key Sound: Beep available on operation panel Setting and direction control button with high, mid and low volume level and defaults to “mid”, Click to enter setting menu. OFF: Close beep on the button. FM Frequency: Stepping setting of radio. 50KHz: 50KHz for FM stepping;... - Page 17 Audio Pre-out: Speaker output setting, When selecting RCA IN, press the button ON: Audio output from Pre-out (no output of lower right corner to enter camera setting screen. host speaker) OFF: Audio output from host speaker (defaulted) Clock When Standby: Click button 【ON】 to make digital clock display on the screen while standby;...
-
Page 18: Setting
Steering Key Setting: Click Enter on right side “ ” to open direction control screen; click “Enter” again to enter direction control learning screen; long press direction control button to start learning by choosing the function button on the screen; the corresponding function button will exhibit 4)Camera Interrupt: When clicking 【MUTE】... -
Page 19: Description Of Reversing Function
Note: Description of reversing function In case the car body is inclined based on the fact that there have several passengers sitting in the 1. When Camera Setting is RCA IN in ,then car and/or the luggage in the trunk is too heavy or camera video screen will appear when the vehicle placed unevenly and/or the road surface is poor, rolls back, see the following figure:... -
Page 20: Appendix
Appendix Supported USB file list Video File File Format *.avi Supported file *.wmv extension *mp4 MPEG-1;MPEG-2;MPEG-4;H.264;H.263;Sorenson H263 Supported MPEG-1;MPEG-2;MPEG-4;H.264;H.263 video codec MPEG-1;MPEG-2;MPEG-4;H.264;H.263;Sorenson H263 MPEG,MP3,PCM,AAC.FLAC Supported Mp3, PCM,AAC,MPEG,AAC_PURE audio codec ACC,MPEG,MP3,PCM,AAC_PURE Video bitrate BitRate:40MpbsFrameRate:30fpsResolution:1080P limitation MPEG-1N/AMPEG-2simple(L0,L1,L2,L3)advancedsimple(L0,L1,L2,L3,L4,L5)MPEG-4simple Video profile (L0,L1,L2,L3)advancedsimple(L0,L1,L2,L3,L4,L5)H.264baseline(<=L4.1)Extend(<=L4.1)mian lever (<=L4.1)High(<=L4.1)High 10(<=L4.1)H.263BaselineSorenson H263N/ARVN/A MP38K~320KCOOK8K ~ 96KAPE800K~1.MKFLAC64K ~ 16.2MAAC<320KVORVISunlimited Audio bitrate limitation... - Page 21 96KAPE800K~1.MKFLAC64K ~ 16.2MAAC<320KVORVISunlimitedMP232K~912KLPCM(WAV) Audio bitrate limitation 64K~9.216M 8KHZ/16KHZ/32KHZ/11KHZ/22KHZ/44KHZ/12KHZ/24KHZK/48KHZ 8 ~ 96KHZ Sample rate limitation 8KHZ/16KHZ/32KHZ/11KHZ/22KHZ/44KHZ/12KHZ/24KHZ/48KHZ48KHZ/96KHZ/192KHZ 8 ~ 96KHZ Image Files JPEG File Format *.jpg,*jpeg Supported file extension *.gif baseline: unlimitation,progressive: wide x heigh<4096 x 4096,file size < 20M Limitation static GIF size < 20M,resolution: wide x heigh<4096 x 4096 21-EN...
-
Page 22: Connections
Connections Orange illumination EXT-AMP To amplifier or equalizer (Blue/White) Steering Remote 1 AD In-put 1 (Purple) Steering Remote 2 AD In-put 2 (Yellow) Steering Remote GND Ground (Black) REMOTE OUT REMO(Remote turn-on)lead (White/Brown) REVERSE Reverse Lead (Orange/White) P.ANT To power antenna (Blue) PARKING BRAKE To the parking brake... -
Page 23: Connections
Ground Lead (Black) Illumination Connect this lead to a good chassis ground on To illumination the vehicle.Make sure the connection is made REMO (Remote Turn-On) Lead (Blue/White) to bare metal and is securely fastened using Connect this lead to the remote turn-on lead of the sheet metal screw provided. -
Page 24: Installation And Connections
Installation and Connections Before installing or connecting the unit, please read KEEP SMALL OBJECTS SUCH AS SCREWS OUT the following and pages 6 to 10 of this manual OF THE REACH OF CHILDREN. thoroughly for proper use. Swallowing them may result in serious injury. If swallowed,consult a physician immediately. -
Page 25: Precautions
(e.g. amplifier) having RCA connectors. You may need an adaptor to connect other units. If so, please contact your authorised Alpine dealer for assistance. • Be sure to connect the speaker (–) leads to the speaker (–) terminal. Never connect left and right channel speaker cables to each other or to the vehicle body.
