Vega VEGASON 61 Operating Instructions Manual

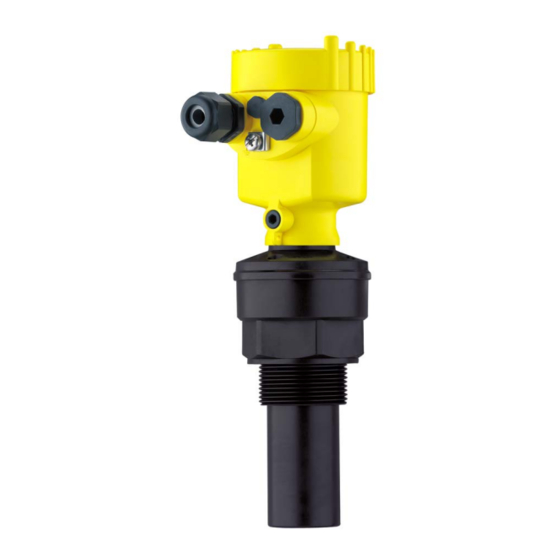

Ultrasonic sensor for continuous level measurement 4...20 ma/hart- two-wire
Hide thumbs Also See for VEGASON 61:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual

Operating Instructions

Ultrasonic sensor for continuous level
measurement
VEGASON 61
4 ... 20 mA/HART - two-wire
Document ID: 28775

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGASON 61 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGASON 61

Summary of Contents for Vega VEGASON 61

  • Page 1: Operating Instructions

    Operating Instructions Ultrasonic sensor for continuous level measurement VEGASON 61 4 … 20 mA/HART - two-wire Document ID: 28775...

  • Page 2: Table Of Contents

    Parameter adjustment with PACTware ................36 7.3 Parameter adjustment with AMS™ and PDM ..............37 Saving the parameter adjustment data ................38 8 Maintenance and fault rectification 8.1 Maintenance ........................39 Rectify faults ........................39 Exchanging the electronics module ................40 VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 3 • 27835 - Display and adjustment module PLICSCOM • 32628 - Interface adapter VEGACONNECT • 27720 - External indication VEGADIS 61 • 34296 - Protective cover • 30176 - Electronics module VEGASON series 60 Editing status: 2014-09-29 VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 4: About This Document

    This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 5: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use VEGASON 61 is a sensor for continuous level measurement. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Safety Label On The Instrument

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfill this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 7: Product Description

    The scope of delivery encompasses: • VEGASON 61 ultrasonic sensor • Documentation – this operating instructions manual – Safety Manual 28983 "VEGASON 61, 62 - 4 … 20 mA/HART" (optional) – Operating instructions manual 27835 "Display and adjustment module PLICSCOM" (optional) – Supplementary instructions manual 31708 "Heating for display and adjustment module PLICSCOM" (optional) –...

  • Page 8: Principle Of Operation

    Principle of operation Application area VEGASON 61 is an ultrasonic sensor for continuous level measure- ment. It is suitable for liquids and solids in virtually all industries, particularly in the water and waste water industry.

  • Page 9: Packaging, Transport And Storage

    Not exposed to corrosive media • Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport temperature see chapter "Supplement - Storage and transport temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 10: Mounting

    Fig. 2: Measures against moisture ingress Measuring range The reference plane for the measuring range is the lower edge of the transducer. Make sure that a minimum distance from the reference plane - the so-called dead zone, in which measurement is not possible - is maintained. The exact value of the dead zone is stated in chapter "Technical data". VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 11: Mounting Instructions

    This influences the measuring result, particularly if the level is very low. With pressures under -0.2 bar (-20 kPa) you should use a different measuring principle, e.g. radar or guided microwave. Mounting instructions Screwing in Screw VEGASON 61 into the mounting socket with an appropriate spanner applied to the hexagon of the process fitting. Max. torque see chapter "Technical data". VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 12 In vessels with conical bottom it can be advantageous to mount the sensor in the center of the vessel, as measurement is then possible down to the lowest point of the vessel bottom. VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 13 10 mm (0.394 in) out of the socket. Fig. 7: Recommended socket mounting If the reflective properties of the medium are good, you can mount VEGASON 61 on sockets which are higher than the length of the transducer. You will find recommended values for socket heights in the following illustration. The socket end should be smooth and burr-free, if possible also rounded.
  • Page 14 Vessel installations such as for example, ladders, limit switches, heat- ing spirals, struts etc. can cause false echoes that interfere with the useful echo. Make sure when planning your measuring site that the ultrasonic signals have a "clear view" to the measured product. In case of existing vessel installations, a false echo storage should be carried out during setup. VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 15 If there are agitators in the vessel, a false signal storage should be carried out with the agitators in motion. This ensures that the interfer- ing reflections from the agitators are saved with the blades in different positions. Fig. 12: Agitators Do not mount the instruments in or above the filling stream. Make sure Inflowing medium that you detect the product surface, not the inflowing product. VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 16 (TDR). Standpipe measurement By using a standpipe (surge or bypass tube), the influence of vessel installations, foam generation and turbulence is excluded. Standpipes must extend all the way down to the requested min. level, as measurement is only possible within the tube. VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 17 Fig. 14: Standpipe in the tank Vent hole: ø 5 … 10 mm (0.197 … 0.394 in) VEGASON 61 can be used from tube diameters of 40 mm (1.575 in). Avoid large gaps and thick welding joints when connecting the tubes.

  • Page 18: Connecting To Power Supply

    The data for power supply are specified in chapter "Technical data". Provide a reliable separation between the supply circuit and the mains circuits according to DIN EN 61140 VDE 0140-1. The VEGA power supply units VEGATRENN 149A Ex, VEGASTAB 690 as well as all VEGAMETs and VEGASCANs meet this requirement. Keep in mind the following additional factors that influence the operat- ing voltage: •...

  • Page 19: Connection Procedure

    5. Insert the cable into the sensor through the cable entry 6. Lift the opening levers of the terminals with a screwdriver (see following illustration) 7. Insert the wire ends into the open terminals according to the wir- ing plan VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 20: Wiring Plan, Single Chamber Housing

    12. Screw the housing lid back on The electrical connection is finished. Wiring plan, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex-ia version. VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 21 Fig. 17: Electronics and terminal compartment, single chamber housing Plug connector for VEGACONNECT (I²C interface) Spring-loaded terminals for connection of the external indication VEGADIS Ground terminal for connection of the cable screen Spring-loaded terminals for voltage supply VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 22: Wiring Plan, Double Chamber Housing

    Fig. 19: Double chamber housing Housing cover, connection compartment Blind plug or plug M12 x 1 for VEGADIS 61 (optional) Housing cover, electronics compartment Filter element for air pressure compensation Cable gland VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 23 Terminal compartment I 2 C Fig. 21: Terminal compartment, double chamber housing Spring-loaded terminals for voltage supply Plug connector for VEGACONNECT (I²C interface) Ground terminal for connection of the cable screen VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 24: Wiring Plan - Version Ip 66/Ip 68 (1 Bar)

    (+) and blue (-) to power supply or to the processing system Shielding Switch-on phase Switch-on phase After connecting VEGASON 61 to power supply or after a voltage recurrence, the instrument carries out a self-check for approx. 30 seconds: •...

  • Page 25: Set Up With The Display And Adjustment Module Plicscom

    4. Screw housing cover with inspection window tightly back on Disassembly is carried out in reverse order. The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 26: Adjustment System

    Adjustment system Fig. 25: Display and adjustment elements LC display Indication of the menu item number Adjustment keys • Key functions [OK] key: VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 27: Setup Steps

    Standard Address 0 Parameter adjustment As VEGASON 61 is a distance measuring instrument, the distance from the sensor to the product surface is measured. To have the real product level displayed, an allocation of the measured distance to the percentage height must be made. To carry out this adjustment, the distance is entered with full and empty vessel.
  • Page 28 Each product has different reflective properties. In addition, there are various interfering factors which have to be taken into account: agitated product surfaces and foam generation (with liquids); dust generation, material cones and echoes from the vessel wall (with VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 29 By activating the appropriate curve, the volume percentage of the vessel is displayed correctly. If the volume should not be displayed in percent but e.g. in l or kg, a scaling can be also set in the menu item "Display". VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 30 The level would then no longer be detectable in this area. Extended setting/Quick The menu item "Extended setting" offers the possibility to optimise level change VEGASON 61 for applications in which the level changes very quickly. To do this, select the function "Quick level change > 1 m/min.". VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 31 Copy sensor data Copy sensor data? Reset Basic adjustment If the function "Reset" is carried out, the sensor resets the values of the following menu items to the reset values (see chart): Function Reset value Sensor address Max. adjustment 0 m(d) Min. adjustment Meas. range end in m(d) Medium Liquid Sensor-specific basic adjustment. Depending on the sensor type, see chapter "Technical data". VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 32: Menu Plan Ultrasonic Sensor

    Menu plan ultrasonic sensor Information: Depending on the version and application, the highlighted menu windows may not always be available. Special parameters are parameters which are set customer-specifically on the service level with the adjustment software PACTware. VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 33 Peak value indicator Meas. reliability Curve selection Echo curve Distance min.: 0.234 m(d) 36 dB Distance max.: 5.385 m(d) Sensor status Echo curve Presentation of the echo curve T-min.: 16.5 °C T-min.: 37.5 °C VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 34: Saving The Parameter Adjustment Data

    They are thus available for multiple use or service purposes. If VEGASON 61 is equipped with a display and adjustment module, the most important data can be read out of the sensor into the display and adjustment module.

  • Page 35: Set Up With Pactware And Other Adjustment Programs

    Fig. 27: Connection via VEGACONNECT externally I²C bus (com.) interface on the sensor I²C connection cable of VEGACONNECT VEGACONNECT USB cable to the PC Necessary components: • VEGASON 61 • PC with PACTware and suitable VEGA DTM VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 36: Parameter Adjustment With Pactware

    Power supply unit or processing system Note: With power supply units with integrated HART resistance (internal resistance approx. 250 Ω), an additional external resistance is not necessary. This applies, e. g. to the VEGA instruments VEGATRENN 149A, VEGADIS 371, VEGAMET 381. Common Ex separators are also usually equipped with a sufficient current limitation resistance. In such cases, VEGACONNECT 4 can be connected parallel to the 4 …...

  • Page 37: Parameter Adjustment With Ams™ And Pdm

    CD from the agency serving you. Parameter adjustment with AMS™ and PDM For VEGA sensors, instrument descriptions for the adjustment programs AMS™ and PDM are available as DD or EDD. The instru- ment descriptions are already implemented in the current versions of AMS™ and PDM. For older versions of AMS™ and PDM, a free-of-charge download is available via Internet. Move via www.vega.com and "Downloads" to "Software". VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 38: Saving The Parameter Adjustment Data

    It is recommended to document or save the parameter adjustment data. That way they are available for multiple use or service purposes. The VEGA DTM Collection and PACTware in the licensed, profession- al version provide suitable tools for systematic project documentation and storage. VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 39: Maintenance And Fault Rectification

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred.

  • Page 40: Exchanging The Electronics Module

    The electronics modules are adapted to the respective sensor and Assignment distinguish also in the signal output or power supply. Software update The software version of VEGASON 61 can be determined as follows: • on the type label of the electronics •...

  • Page 41: How To Proceed If A Repair Is Needed

    8 Maintenance and fault rectification You can view all software histories on our website www.vega.com. Make use of this advantage and get registered for update information via e-mail. The following components are required to update the sensor soft- ware: • Sensor • Voltage supply • VEGACONNECT • PC with PACTware • Current sensor software as file Load sensor software At "www.vega.com/downloads" go to "Software". Select under "plics...
  • Page 42 8 Maintenance and fault rectification • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 43: Dismounting Steps

    WEEE directive. Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 44: Supplement

    Ʋ Bulk solids up to 2 m (6.562 ft) Dead zone 0.25 m (0.82 ft) Reference conditions to measuring accuracy (according to DIN EN 60770-1) Reference conditions according to DIN EN 61298-1 Ʋ Temperature +18 … +30 °C (+64 … +86 °F) VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 45: Ambient Conditions

    Time to output the correct level (with max. 10 % deviation) after a sudden level change. Incl. non-linearity, hysteresis and non-repeatability. Relating to the nominal measuring range. Tested according to the guidelines of German Lloyd, GL directive 2. VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 46 25 mm (0.984 in) with 25 °C (77 °F) Ʋ Diameter approx. 8 mm (0.315 in) Ʋ Colour - standard PE Black Ʋ Colour - standard PUR Blue Ʋ Colour - Ex-version Blue Depending on the version M12 x 1, according to DIN 43650, Harting, 7/8" FF. VEGASON 61 • 4 … 20 mA/HART - two-wire...
  • Page 47 Protection class Functional safety (SIL) Functional safety is already activated on instruments with SIL qualification ex factory. On instru- ments without SIL qualification ex factory, the functional safety must be activated by the user via the display and adjustment module or via PACTware for applications according to SIL. A suitable cable is the prerequisite for maintaining the protection rating. VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 48: Dimensions

    Approvals Instruments with approvals can have different technical specifications depending on the version. For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under www.vega.com via "VEGA Tools" and "Instrument search" as well as via "Downloads" and "Approvals". 10.2 Dimensions Housing in protection IP 66/IP 68 (0.2 bar) ~ 87 mm (3.43")
  • Page 49 ø 74mm ") Fig. 33: VEGASON 61 Dead zone: 0.25 m (0.82 ft) Measuring range: with liquids up to 5 m (16.4 ft), with solids up to 2 m (6.562 ft) VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 50: Information

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 51 Notes VEGASON 61 • 4 … 20 mA/HART - two-wire...

  • Page 52: Information

    Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2014 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
