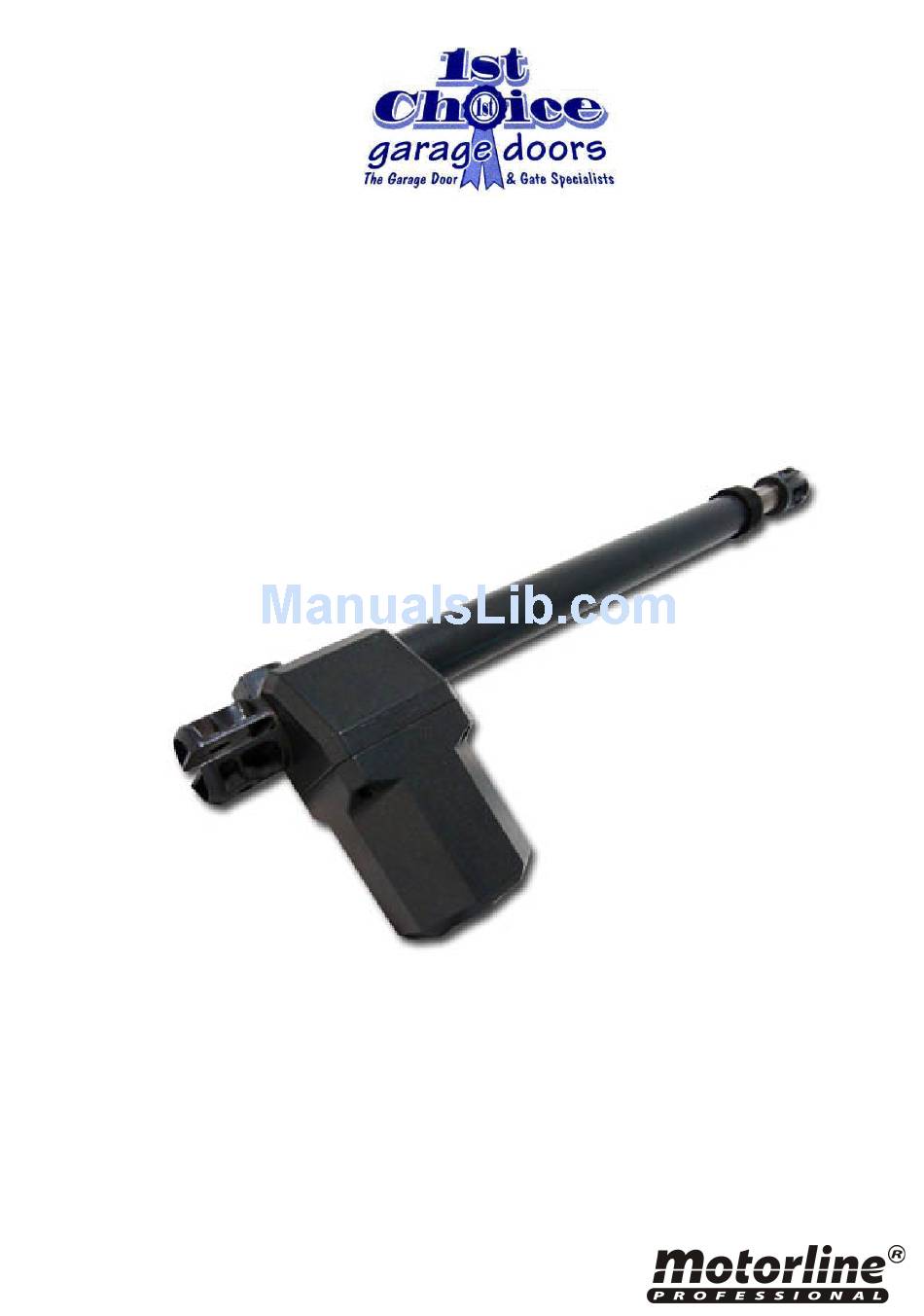

- Page 1 WING 300 / 400 / 600 Operating and installation instructions 1 ...
- Page 2 General safety instructions and checklist This electric gate operator complies with European Directives: 89/336/EEC and 73/23/EEC and subsequent amendments. When installed correctly this electrically operated motor complies with all relevant safety standards. Please ensure the operating manual is fully read and understood before installation and operation. Installation should only be carried out by a competent and qualified person.

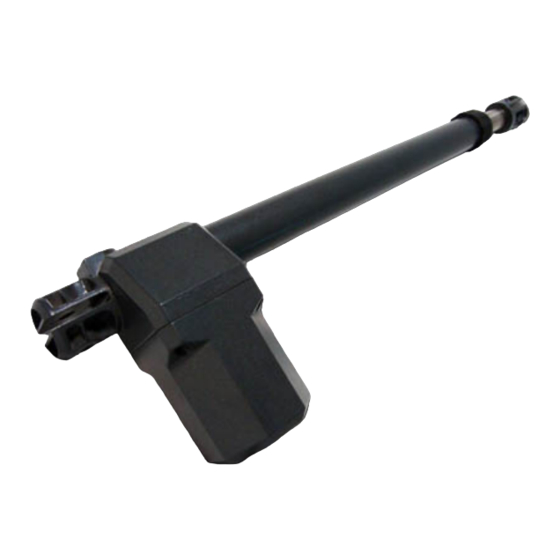

- Page 3 1. Description Maintenance Description of maintenance Schedule Clean and check safety Photocells and functions Monthly Check free movement of gate manually Monthly Clean foliage or insects from gate or control box Monthly The Wing ram is an electro-mechanical gate operator which drives the gate by worm screw drive. The operator is irreversible and locks mechanically in the open and closed position when not in use.
- Page 4 100716 Screw drive 70 100313 Cap Screw M5 x16 Wing 300 – Distance between ram mounting pins, W – 930mm Wing 400 – Distance between ram mounting pins, W – 1130mm Wing 600 – Distance between ram mounting pins, W – 1540mm ...
-
Page 5: Technical Specification
2. Technical Specification WING 300 WING 400 WING 600 Maximum width of gate leaf 3000mm 4000mm 5000mm Maximum weight of leaf 200Kg 200Kg 200Kg Motor Stroke 300mm 400mm 600mm Motor Power 180 W 180 W 180 W Power supply... -
Page 6: Installation Dimensions
Where possible, keep the difference between X and Y to 40mm to avoid jerky movement and speed variations Greater opening angles are possible by reducing dimension Y and increasing dimension X Motor Opening Angle 95° Opening Angle 120° WING 300 WING 400 1130 1130 WING 600 1540 1540 5. - Page 7 3 – Place the Wing motor so that the motor is inclined by 1°. As indicated in Fig. 12 below. With the gate leaf in the closed position and the motor fixed onto rear bracket, turn and slide the screw piston to extend piston to the end of end of stroke.
-
Page 8: Maintenance
7. Commissioning Once the system has been fully fitted and connected to control panel (MC2), the system needs to be fully commissioned and tested. It is recommended to have the swing gates locked into the half open / closed on the first operation, just to ensure that the motor is running the right direction on the first command.
