Axis DVR3 Instruction Manual

Oem style hidden full hd dvr with wifi
Hide thumbs

Advertisement

Table of Contents

DVR3
OEM STYLE HIDDEN FULL HD DVR with WiFi
SPECIFICATIONS
GENERAL
- Display:
- Resolutions:
- Chipset:
- Recording Angle:
- Video Format:
- Video Recording Time:
- Recording Mode:
- Video Signal:
- Memory Support:
- G-Sensor:
- Motion Detection:
- Wifi:
- Seamless loop recording:
- Auto Record:
- Time Overlay:
- Outputs:
- Power Supply:
- Operating Temperature:
- Dimensions (Main Body):
- Cables:
- Mounting:
INSTRUCTION MANUAL
APP Smartphone Connection
(Phone or Navigation Screen)
1920 x 1080p, 1280 x 720p
NT 96638
120°
H264 Compression MOV
3/5/10 minutes
Loop, Auto Overwrite
NTSC/PAL
Up to 32GB Micro SD Card (included)
Yes
Yes
Yes (App to View)
Yes
Yes - After Power On
Yes
RCA (Male)
Hardwire to Vehicle
-30° to 65°
65H x 75W x 75D
350mm Flylead, 2.7m Extension Cable
(Terminates to RCA (M) Power/Ground
Mounts around Mirror Bracket (using 2 sided tape)
1
1
INCLUDED
- 3m Hardware Loom with RCA (M) Out
- 32GB Micro SD Card

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis DVR3

Summary of Contents for Axis DVR3

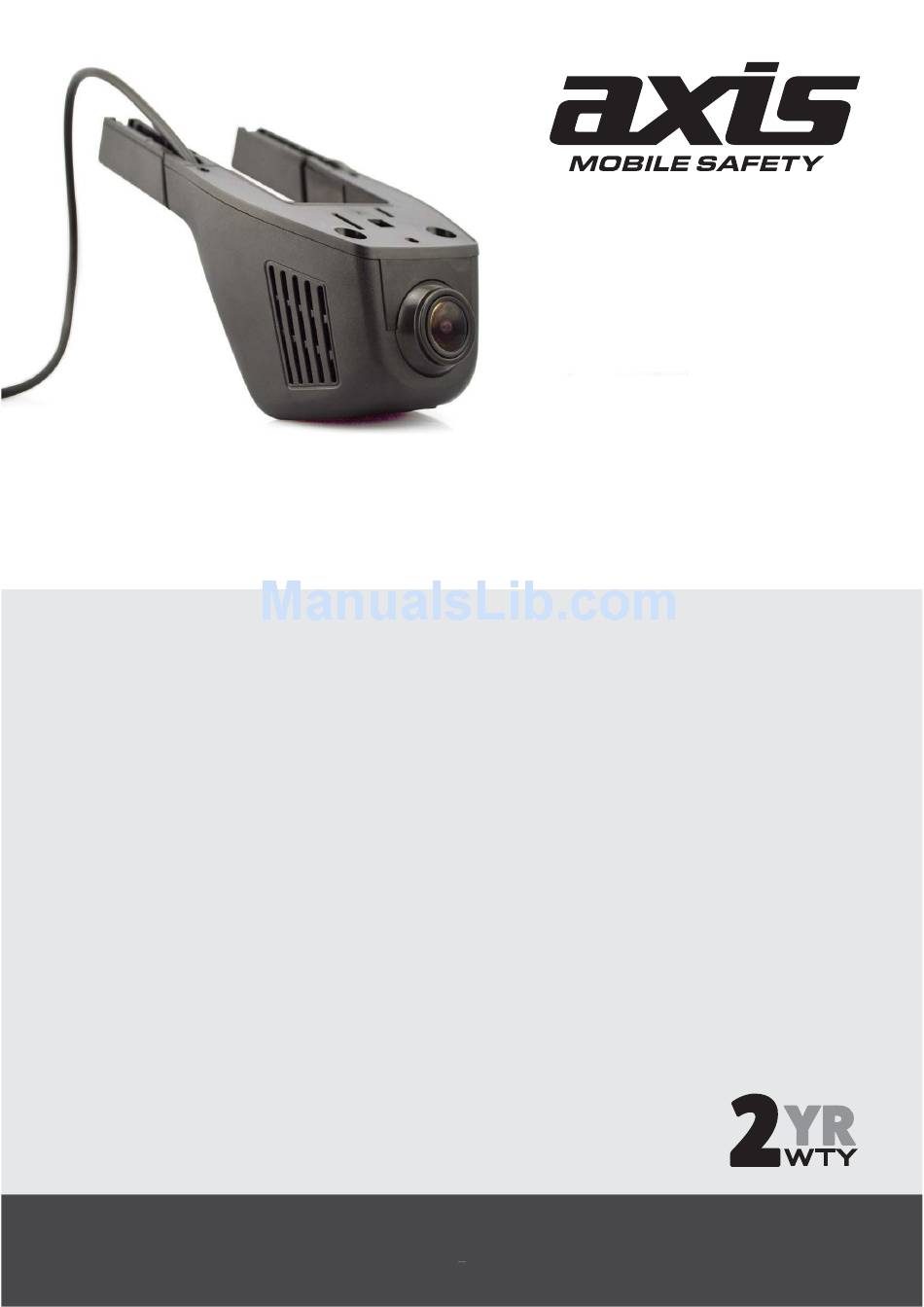

  • Page 1 DVR3 OEM STYLE HIDDEN FULL HD DVR with WiFi SPECIFICATIONS GENERAL INCLUDED - Display: APP Smartphone Connection - 3m Hardware Loom with RCA (M) Out (Phone or Navigation Screen) - 32GB Micro SD Card - Resolutions: 1920 x 1080p, 1280 x 720p...

  • Page 2: Table Of Contents

    CONTENTS INSTALLATION NOTES......................4,5 KEY FEATURES........................5 OPERATING GUIDE........................5 PARAMETERS...........................6 MOBILE APP CONNECTIVITY GUIDE................6, 7 WARRANTY CARD........................8...
  • Page 3 TO USERS: Thank you for purchasing this quality mobile digital video recorder. This product uses high-end components and 1080p video to provide a live HD driving record. The product is constructed especially for automobile use. It is compact, lightweight and can be sympathetically hidden during installation. The product does not contain lithium batteries.

  • Page 4: Installation Notes

    INSTALLATION NOTES 2. Insert TF card in the recorder slot. (Note: Please use a high-speed Micro SD (Class 10 or above) with a capacity of not less than 2MB. A 32GB card is supplied when the unit is purchased. 3. Connect the YELLOW power cable to 12V power supply, RED ACC ignition control, BLACK earth.

  • Page 5: Key Features

    KEY FEATURES WiFi/MENU RESET BUTTON If recording or other functions freeze or become unstable, press to restore the factory settings. The machine will then restart. Some settings may be lost. LIGHTS OPERATING GUIDE Use Automatic Record Function Upon starting the vehicle, the recorder will automatically open the recording function automatically saves the recorded contents to the TF card.

  • Page 6: Parameters

    PARAMETERS Master chip: Novatek NT96658. Screen: APP smart phone connection/phone screen display/use of car DVD navigation screen. Resolution: 1920 x 1080p, 1280 x 720p. Lens Pixels: 1200W Recording Angle: 170° wide angle. Video Format: H.264 compression MOV. Videos: 3/5/10 minutes (default 3 minutes). Recording Mode: Loop recording, automatically overwrite.

  • Page 7: Mobile App Connectivity Guide

    MOBILE APP CONNECTIVITY GUIDE 3. Click to ensure that the APP is installed. Then click the top right corner of the “ten” add button (Figure 3). for your machine MAC address). 5. Enter the initial password: 12345678 and establish the connection (see Figure 4).
  • Page 8 DVR3 JS007WQK...
