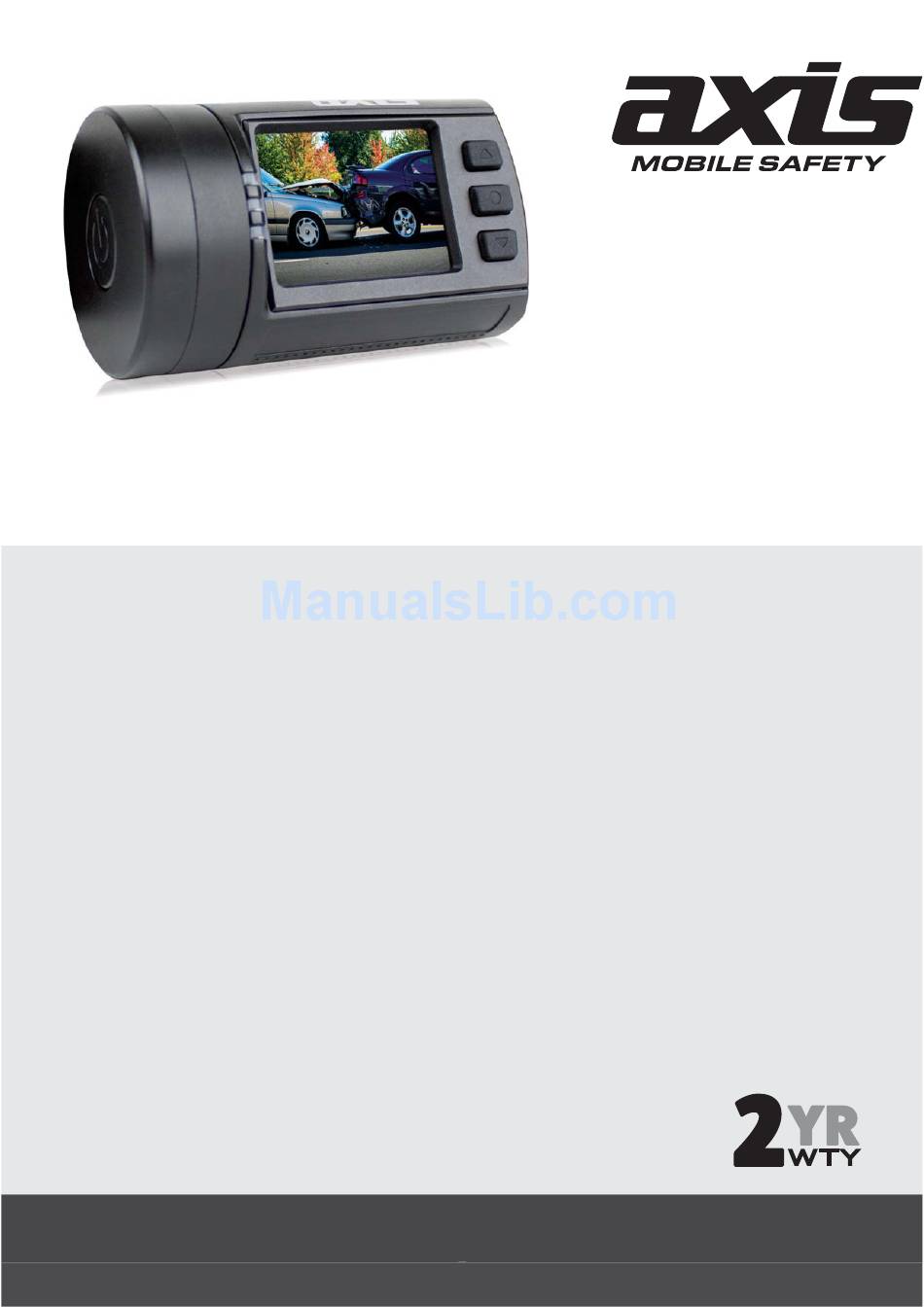

DVR6

COMPACT SUPER HD DVR with GPS & 256GB SUPPORT

SPECIFICATIONS

GENERAL

- Display;

- Chipset:

- Image Sensor:

- Resolutions:

- Lens Viewing Angle:

- Memory Support:

- GPS Function:

- Google Maps Data:

- G-Sensor:

- Motion Detection:

- Lane Departure Warning:

- Seamless loop recording:

- Auto Record:

- Outputs:

- PC Interface:

- Power Supply:

- Battery:

- Dimensions:

- Mounting:

INCLUDED

- 12/24V Car Charger

- Hardwire Power Kit

- GPS Antenna Glass Mount

- Mini USB Lead

INSTRUCTION MANUAL

1.5" TFT LCD

Ambarella A7

4MP CMOS

Super HD 2304x1296p, 2560x1080p,

1920x1080p, 1280x720p 30/60fps

135°

2 x 128GB Micro SD Card (Not Included)

Yes

Route, Speed, G-Sensor Data

Yes

Yes - After Power On

HDMI

USB

12/24V Cig Lead

Built-in Lithium Battery

68W x 39H x 47Dmm (Without Mount)

2 Sided Tape (Included)

1 1

Table of Contents

Need help?

Do you have a question about the DVR6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axis DVR6

Page 1 DVR6 COMPACT SUPER HD DVR with GPS & 256GB SUPPORT SPECIFICATIONS GENERAL - Display; 1.5” TFT LCD - Chipset: Ambarella A7 - Image Sensor: 4MP CMOS - Resolutions: Super HD 2304x1296p, 2560x1080p, 1920x1080p, 1280x720p 30/60fps - Lens Viewing Angle: 135°...
Page 2: Table Of Contents
CONTENTS PRECAUTIONS ...................... 2 QUICK START GUIDE ..................3 UPGRADING ......................3 PRODUCT STRUCTURE ................... 4 OPERATION ......................6 SETTINGS ........................ 8 USER INTERFACE & PLAYER ................. 14 MOUNTING ......................15 POWER SOURCE ....................16 TROUBLESHOOTING ..................17, 18 CODECS ........................18 NOTES ........................
Page 3: Quick Start Guide
QUICK START GUIDE - 1) Plug the cigarette charger into the cigarette socket and connect the DVR6 to the charger. - 2) After the DVR automatically turns on, hold the UP button to access the menu. Press the UP and DOWN buttons to navigate the menu.
Page 4: Product Structure
PRODUCT STRUCTURE 1 - Mount 2 - Top cooling holes 3 - Speaker holes 4 - CPL mounting bar 5 - Lens 6 - Front cooling holes 7 - Bottom cooling holes 8 - Side cooling holes 9 - Power indicator 10 - Recording indicator 11 - GPS/MIC indicator 12 - HDMI output...
Page 5 14 - TFT screen 15 - Mounting contacts 16 - UP button 17 - OK button 18 - DOWN button 19 - MIC holes 20 - MicroUSB port 21 - Card A slot 22 - POWER button 23 - Mount 24 - MicroUSB port 25 - VHB port 26 - Mounting contacts...
Page 6: Operation
OPERATION TURN CAMERA ON/OFF - Turn on by pressing the power button (22) - It receives power eg - when vehicle engine is started. - It loses power eg - when vehicle engine is stopped. - It is in standby for a long time without any button pressed. - When the internal battery runs out if there is no external power supply.
Page 7 PLAYBACK ON TV - When the camera is connected to a TV with a HDMI cable, the camera screen will turn playback on the camera. - To connect a TV for playback via an AV connection, use the customised AV-out cable (optional accessory).
Page 8: Settings
FORMAT CARDS 1. Format both micro SD cards in a computer (FAT32). 2. Put both cards into the DVR6 and turn the DVR6 on. 3. In the settings > ‘choose card’, select card A. 5. Once the format is complete, select card B in the ‘choose card’ setting.
Page 9 PHOTO RESOLUTION - Here you can choose the photo resolution. Higher resolution photos will take more storage space. Options: 13MP (4800 x2700 16:9) 9MP (4000 x2250 16:9) 4MP (2688 x1512 16:9) PHOTO QUALITY and contact. Better quality photos will take more storage space. Options: SUPERFINE FINE...
Page 10 Options: LOOP RECORDING - The DVR6 supports automatic loop recording when the card is full. Here you can set the segment length according to your requirement. If you need a continuous video without any segmentation, please set it to OFF but be aware that the maximum video...
Page 11 15 seconds after the motion stops. Here you can set the detection sensitivity. Options: MIDDLE HIGH GREEN INDICATOR Options: GPS STATUS MIC STATUS G-SENSOR SENSITIVITY - The G-Sensor is used to detect the 3-axis impacting forces. If any impact over the Options: 2.5G 3.5G 4.5G...
Page 12 - The DVR camera can record your driving track and stamp the GPS data on video. Options: LOG ONLY SPEED STAMPING - The DVR6 camera can record your driving speed and stamp the speed data on video. - Please set GPS STAMPING to LOG ONLY or ON if you need speed stamp. Options: KM/H...
Page 13 DATE STAMPING Options: YYMMDD MMDDYY DDMMYY TIME STAMPING Options: 12 HOURS 24 HOURS DATE AND TIME - Here you can set the system date and time. The date/time information will be automatically updated if GPS satellites are connected. 2016/11/11 12:12 time zone date time...
Page 14: User Interface & Player
UI & PLAYER * NOT AVAILABLE...
Page 15: Mounting
MOUNTING CAMERA SPECIFICATIONS The DVR6 camera is designed for easy & quick mounting to your windscreen with the VHB sticker pad. 1) Mount the camera to the mounting bracket with power cable plugged into either the mount or camera body.
Page 16: Power Source
DVR6 to FUSE CONSOLE - The DVR6 camera can be powered by the lighter socket lead or hardwire kit. - The lighter power socket is an easy & fast connecting method. - The hardwire kit is a tidy solution. The 12V leads are connected to the car fuse or vehicle battery and the 5V lead is connected to your camera.
Page 17: Troubleshooting
TROUBLESHOOTING CANT RECORD A VIDEO OR TAKE A PICTURE Please check that there is enough storage space on the MicroSD card, or if you have CAMERA STOPS RECORDING OCCASIONALLY high speed Class 6 or Class 10 MicroSD card. “FILE ERROR” MESSAGE DURING VIDEO OR IMAGE PLAYBACK Corrupt data storage or card may have come to end of cycle life.
Page 18: Codecs
20 seconds, The camera will then auto reset. PROBLEMS PLAYING BACK SD CARD ON COMPUTER * If connecting the SD card from DVR6 into your computer, you may require new codecs to successfully play back recorded high resolution videos. Without the correct codecs, your computer may be unable to correctly decode high resolution recordings.
Page 19: Notes
NOTES...
Page 20 DVR6 JS007WQK...
