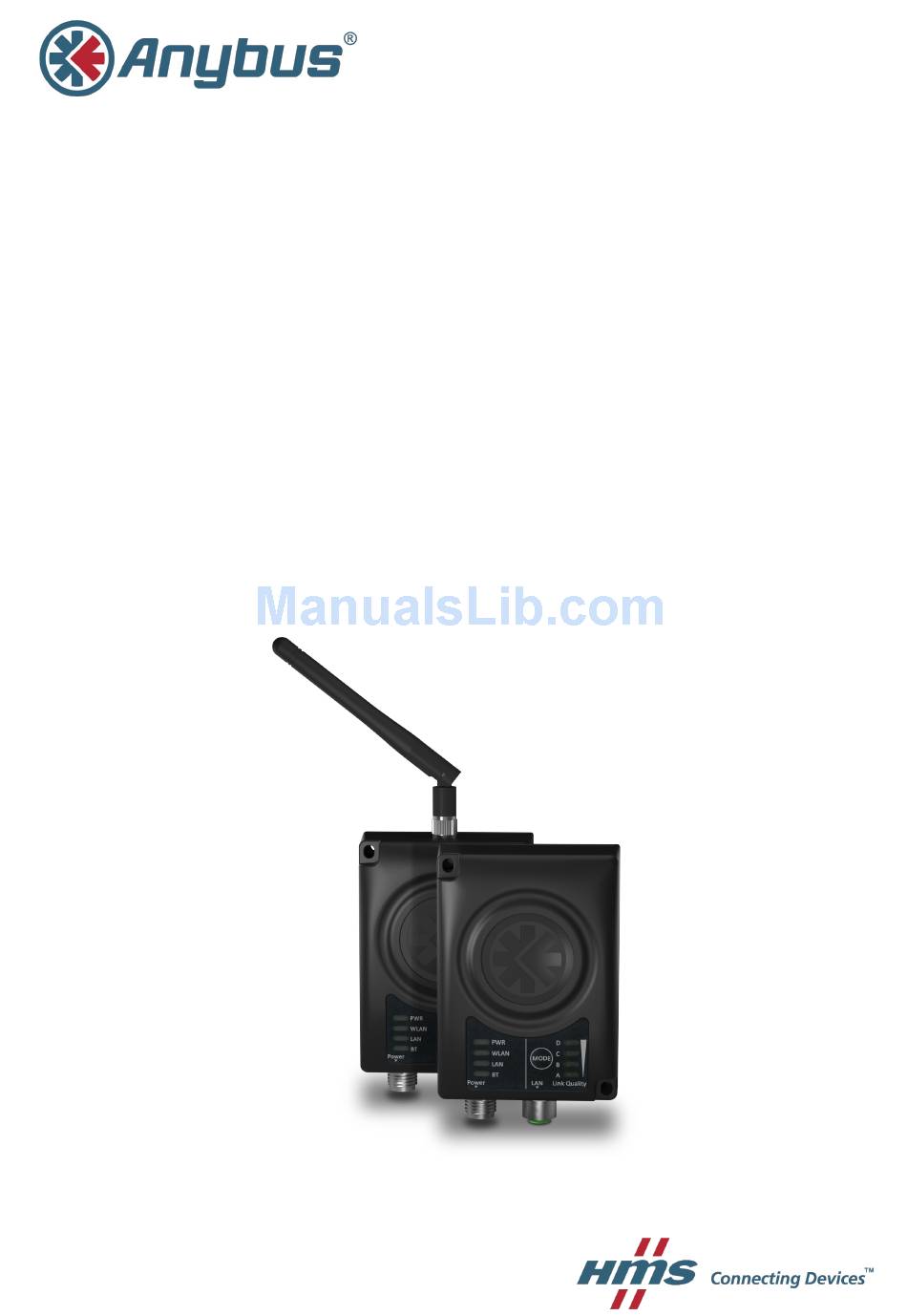

- Page 1 Anybus ® Wireless Bridge II ™ USER MANUAL SCM-1202-032 1.1 ENGLISH...
-
Page 2: Important User Information
HMS Industrial Networks AB has intellectual property rights relating to technology embodied in the product de- scribed in this document. These intellectual property rights may include patents and pending patent applications in the USA and other countries. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 3: Table Of Contents
Easy Config......................... 11 Web Interface ......................12 Factory Restore ......................23 MODE Button ......................24 Configuration Examples ....................25 A Wireless Technology Basics ..................27 B Technical Data........................ 28 Technical Specifications ....................28 Internal Antenna Characteristics ...................29 ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... - Page 4 This page intentionally left blank...
-
Page 5: Preface
Preface 3 (32) Preface About This Document This manual describes how to install and configure Anybus Wireless Bridge II. For additional related documentation and file downloads, please visit the Anybus support web- site at www.anybus.com/support. Related Documents Document Author Document ID... -
Page 6: Conventions
Caution This instruction must be followed to avoid a risk of personal injury. WARNING This instruction must be followed to avoid a risk of death or serious injury. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 7: Product Description
Product Description 5 (32) Product Description Anybus Wireless Bridge II provides wireless communication over WLAN and/or Bluetooth ® wired networks. Typical applications for Anybus Wireless Bridge II include: • Adding wireless cloud connectivity to industrial devices • Accessing devices from a laptop, smartphone or tablet •... -
Page 8: Installation
For optimal reception, wireless devices require a zone between them clear of objects that could otherwise obstruct or reflect the signal. A minimum distance of 50 cm between the devices should also be observed to avoid interference. See also Wireless Technology Basics, p. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 9: Mechanical Installation
Installation 7 (32) Mechanical Installation Anybus Wireless Bridge II can be screw-mounted directly onto a flat surface or mounted on a standard DIN rail using the optional DIN mounting kit. 19.8 67.8 Fig. 1 Installation drawing All measurements are in mm. -
Page 10: Connectors
3 meters. LAN Connector (D-coded female M12) Pin Function Color coding (T568B) Transmit + Orange/White Receive + Green/White Transmit - Orange Receive - Green ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 11: Led Indicators
RSSI/Link Quality 25–50 % RSSI/Link Quality 50–75 % RSSI/Link Quality > 75 % Additional LED indications are used when the unit is in Recovery Mode. Recovery Mode LED Indications, p. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 12: Configuration
10 (32) Configuration General Anybus Wireless Bridge II should normally be configured via the web interface or using one of the pre-configured Easy Config modes. Advanced configuration can be carried out by issuing AT (modem) commands through the web interface or over a Telnet or RAW TCP connection to port 8080. The Help page in the web inter- face includes a list of all supported AT commands. -
Page 13: Easy Config
Mode 4 will listen for 120 seconds, or until it has received a valid configuration from a unit scanning in Mode 5 or 6. The IP address of a client may be changed by the configuration from the access point. Active browser sessions could therefore be lost. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 14: Web Interface
The Save and Reboot button will become enabled If the unit needs to be restarted for a param- eter change to come into effect. To go back to the current configuration without saving changes, click on Cancel All Changes. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... - Page 15 Mode 4 will listen for 120 seconds, or until it has received a valid configuration from a unit scanning in Mode 5 or 6. The IP address of a client may be changed by the configuration from the access point. Active browser sessions could therefore be lost. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1...
-
Page 16: Network Settings
If the static IP address is changed the browser should automatically be redirected to the new address after clicking on Save and Reboot. The automatic redirect function may not be supported by all browsers. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... - Page 17 Enter the WPA2 passkey for the network. Channel Select a specific channel to use when scanning for networks. Which channels are available depend on the Channel Bands setting. Auto = all channels will be scanned (default). ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1...
- Page 18 Layer 3 IP forward (default) = IP data from all devices will be bridged over WLAN. Cloned MAC Address The MAC address to use with Layer 2 cloned MAC only (see above). ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1...
- Page 19 For plain text passwords a combination of upper and lower case letters, numbers, and special characters is recommended. Example of a strong plain text password: uS78_xpa&43 Example of hexadecimal password: 0x000102030405060708090a0b0c0d0e0f101112131415161718191a1b1c1d1e1f Do not use the example passwords above in a real installation! ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1...
- Page 20 (not with third-party devices). PIN codes must consist of 4 to 6 digits. Just Works = Encrypted connection without PIN code. Paired Devices Lists the currently connected Bluetooth devices. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1...
- Page 21 Choose whether to select a Bluetooth device by MAC address or name when connecting manually. NAP mode only List Nearby Devices Scans the network and lists discoverable Bluetooth devices. Pairing cannot be initiated in NAP mode. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1...
-
Page 22: Firmware Update
Click on Browse to select a firmware file, then click on Send to download it to the unit. Both progress bars will turn green when the firmware update has been completed. The unit will then reboot automatically. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... - Page 23 Enter or paste the commands into the text box, then click on Send. The result codes will be dis- played below the text box. The supported AT commands are described in the Help section of the web interface and in the AT Commands Reference Manual. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1...
-
Page 24: System Settings
Restores all parameters in the web interface to the currently active values. Factory Reset Resets the unit to the factory default settings and reboots. Setting a secure password for the unit is strongly recommended. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 25: Factory Restore
Default Bluetooth Settings Operating Mode PANU (Client) Local Name [generated from MAC address] Security Mode Disabled Default System Settings Password [empty] Setting a secure password for the unit is strongly recommended. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 26: Mode Button
In Recovery Mode the LEDs will indicate firmware update status. Firmware update in progress Green Green, blinking Waiting for valid firmware WLAN + BT Alternating red/blue Firmware update in progress ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 27: Configuration Examples
Configuration 25 (32) Configuration Examples The following examples require that you have installed the Anybus Wireless Bridge II and that you understand how to access and use the web interface. • All the examples start out from the factory default settings. - Page 28 This page intentionally left blank...
-
Page 29: A Wireless Technology Basics
To reduce interference and phase cancelling, the range may also need to be lim- ited by reducing the transmission power. For determining the optimal configuration and place- ment of wireless devices it is therefore recommended to use a wireless signal analysis tool. ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1... -
Page 30: B Technical Data
Sinusoidal vibration test according to IEC 60068-2-6:2007 and with extra severities. Shock test ac- cording to IEC 60068-2-27:2008 and with extra severities. See Anybus Wireless Bridge II Compliance Sheet for details. Humidity EN 600068-2-78: Damp heat, +40 °C, 93 % humidity for 4 days... -
Page 31: Internal Antenna Characteristics
29 (32) Internal Antenna Characteristics Anybus Wireless Bridge II has 3 independent quarter wave monopole antennas. The following radiation diagrams and tables show the characteristics of the different antennas as measured under laboratory test conditions. The diagrams can be used as a general guide for finding the optimal placement and orientation of the units. - Page 32 2.4 GHz MIMO antenna gain and directivity in horizontal and vertical planes Test Antenna Section Avg Gain Peak Gain Comment MIMO dBi % In Plastic Box 2400 -1.95 63.8 +2.66 2440 -1.65 68.4 +2.88 2485 -1.42 72.1 +2.76 ® Anybus Wireless Bridge II ™ User Manual SCM-1202-032 1.1...
- Page 33 This page intentionally left blank...
- Page 34 last page © 2017 HMS Industrial Networks AB Box 4126 300 04 Halmstad, Sweden info@hms.se SCM-1202-032 1.1.3826 / 2017-04-19 15:22...
