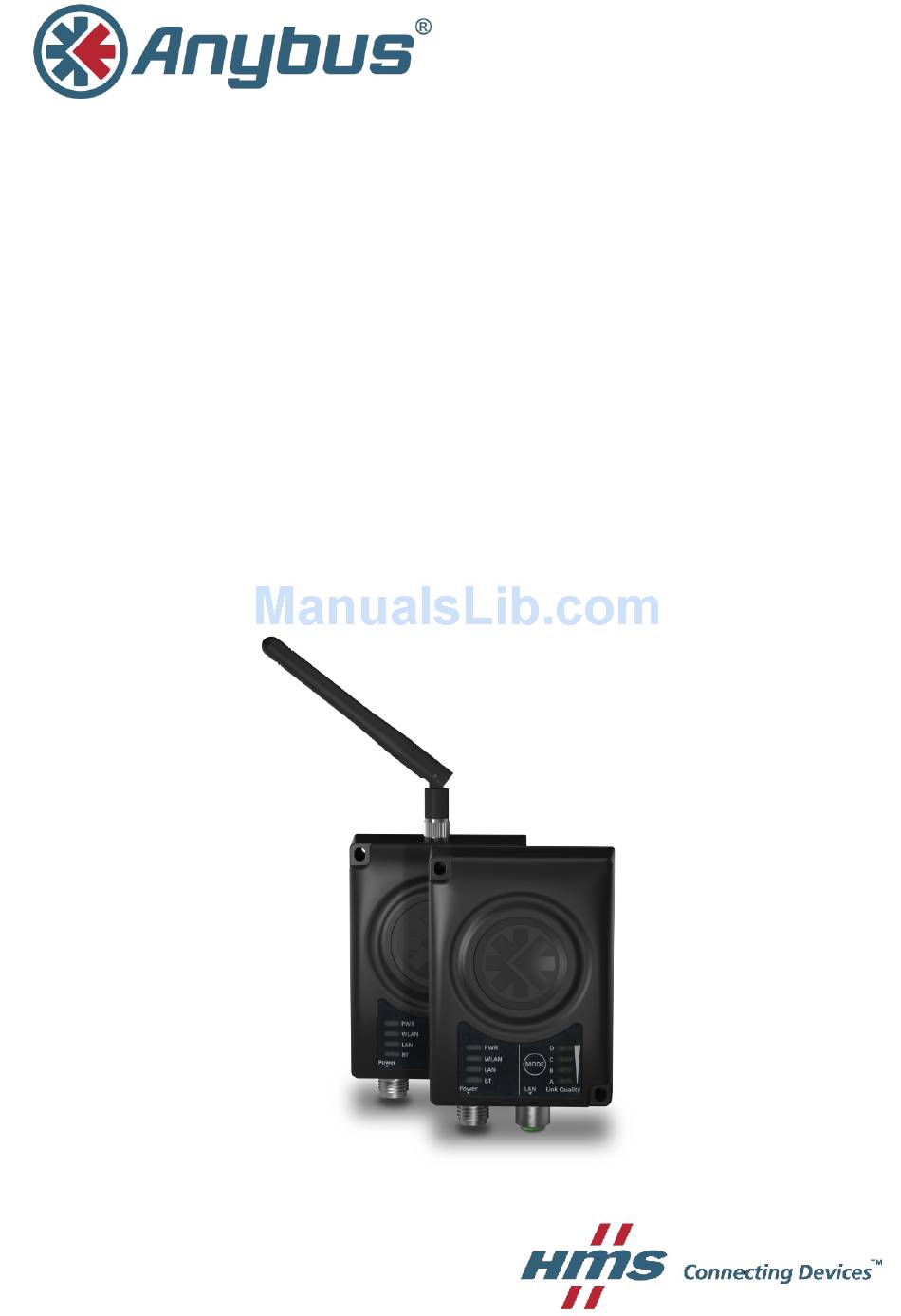

- Page 1 Anybus ® Wireless Bridge II ™ INSTALLATION GUIDE SCM-1202-013/SP2167 1.1 ENGLISH...
-
Page 2: Important User Information
HMS Industrial Networks AB has intellectual property rights relating to technology embodied in the product described in this document. These intellectual property rights may include patents and pending patent applications in the USA and other countries. Anybus ® Wireless Bridge II ™ Installation Guide SCM-1202-013/SP2167 1.1... -
Page 3: About This Document
About This Document 3 (16) About This Document This document describes how to install Anybus Wireless Bridge II and set up a basic configuration. For additional documentation and technical support, please visit the Anybus support website www.anybus.com/support. Trademark Information Anybus ®... -
Page 4: Product Description
Product Description 4 (16) Product Description Anybus Wireless Bridge II provides wireless communication over WLAN and/or Bluetooth ® to wired networks. Typical applications for Anybus Wireless Bridge II include: • Adding wireless cloud connectivity to industrial devices • Accessing devices from a laptop, smartphone or tablet •... -
Page 5: Installation
(ESD). Use ESD protective measures to avoid equipment damage. Anybus Wireless Bridge II can be screw-mounted directly onto a flat surface or mounted on a standard DIN rail using the optional DIN mounting kit. Make sure that you have all the necessary information about the capabilities and restrictions of your local network environment before installation. - Page 6 Installation 6 (16) Dimensions 19.8 67.8 All measurements are in mm. Anybus ® Wireless Bridge II ™ Installation Guide SCM-1202-013/SP2167 1.1...
- Page 7 3 meters. LAN Connector (D-coded female M12) Function Color coding (T568B) Transmit + Orange/White Receive + Green/White Transmit - Orange Receive - Green Anybus ® Wireless Bridge II ™ Installation Guide SCM-1202-013/SP2167 1.1...
-
Page 8: Led Indicators
RSSI/Link Quality 25–50 % RSSI/Link Quality 50–75 % RSSI/Link Quality > 75 % Additional LED indications are used when the unit is in Recovery Mode. Recovery Mode LED Indications, p. Anybus ® Wireless Bridge II ™ Installation Guide SCM-1202-013/SP2167 1.1... -
Page 9: The Web Interface
Configuration 9 (16) Configuration Anybus Wireless Bridge II can be configured via the web interface or using one of the pre-configured Easy Config modes. Advanced configuration can be carried out by issuing AT (modem) commands through the web interface or over a Telnet or RAW TCP connection to port 8080. -
Page 10: Easy Config
Mode 5 or 6. The IP address of a client may be changed by the configuration from the access point. Active browser sessions could therefore be lost. Anybus ® Wireless Bridge II ™ Installation Guide SCM-1202-013/SP2167 1.1... -
Page 11: Factory Restore
Default Bluetooth Settings Operating Mode PANU (Client) Local Name [generated from MAC address] Security Mode Disabled Default System Settings Password [empty] Setting a secure password for the unit is strongly recommended. Anybus ® Wireless Bridge II ™ Installation Guide SCM-1202-013/SP2167 1.1... -
Page 12: Mode Button
In Recovery Mode the LEDs will indicate firmware update status. Firmware update in progress Green Green, blinking Waiting for valid firmware WLAN + BT Alternating red/blue Firmware update in progress Anybus ® Wireless Bridge II ™ Installation Guide SCM-1202-013/SP2167 1.1... -
Page 13: Configuration Examples
WLAN client. PROFINET communication WLAN communication with PROFINET devices requires that Bridge Mode is set to Layer 2 tunnel on the WLAN Settings page of the web interface. Anybus ® Wireless Bridge II ™ Installation Guide SCM-1202-013/SP2167 1.1... -
Page 14: Technical Data
Sinusoidal vibration test according to IEC 60068-2-6:2007 and with extra severities. Shock test according to IEC 60068-2-27:2008 and with extra severities. See Anybus Wireless Bridge II Compliance Sheet for details. Humidity EN 600068-2-78: Damp heat, +40 °C, 93 % humidity for 4 days... - Page 15 36 mA @ 24 VDC (Bluetooth interface only) Net data troughput Up to 1 Mbit/s Security Authentication & Authorization, Encryption & Data Protection, Privacy & Confidentiality, NIST Compliant, FIPS Approved Anybus ® Wireless Bridge II ™ Installation Guide SCM-1202-013/SP2167 1.1...
- Page 16 last page © 2017 HMS Industrial Networks AB Box 4126 300 04 Halmstad, Sweden info@hms.se SCM-1202-013/SP2167 1.1.3825 / 2017-04-19 15:09...
