Anybus
®
WLAN Access Point IP67
USER MANUAL
SCM-1202-094-EN 1.0 ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWB4003-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Anybus AWB4003-B

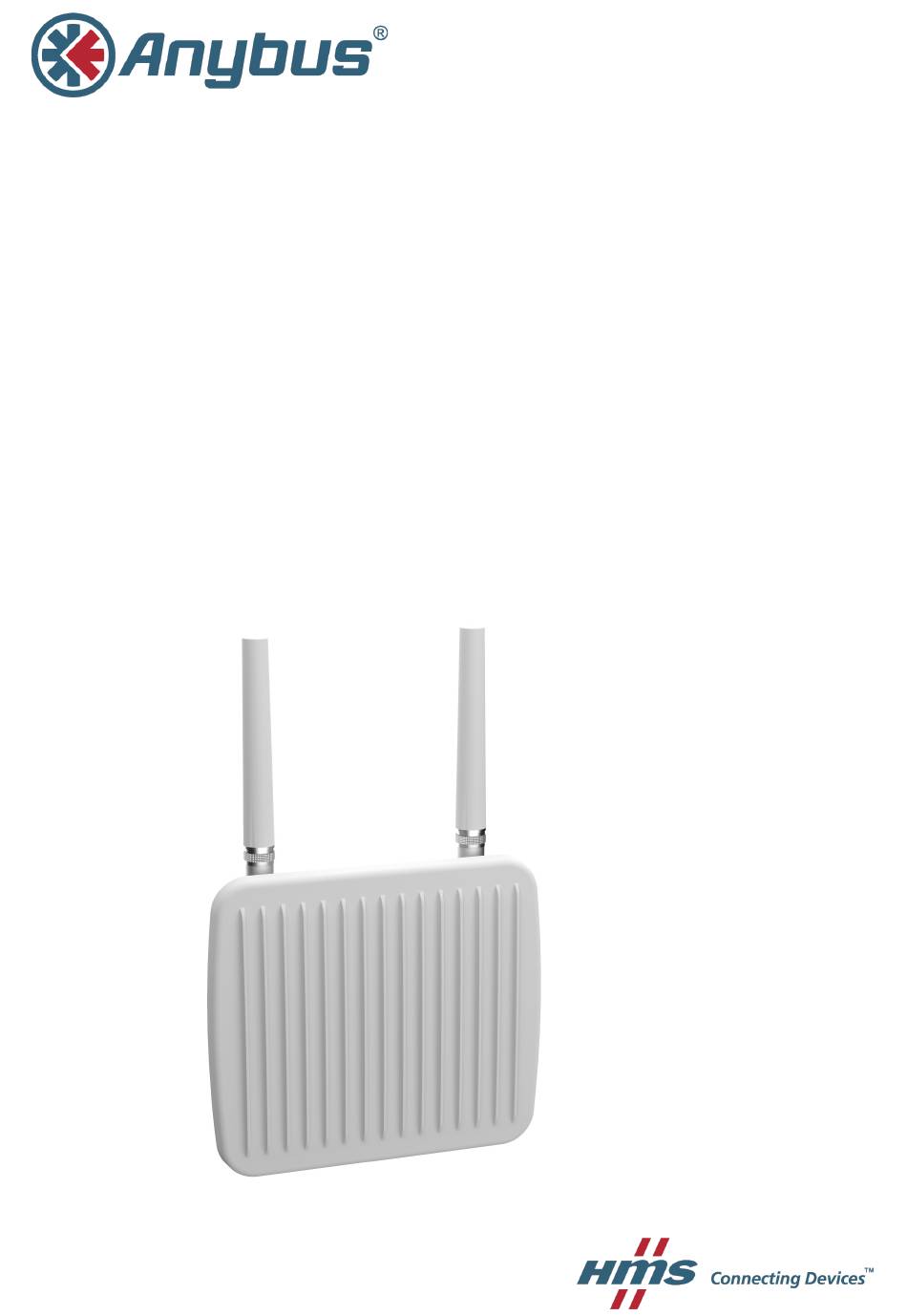

  • Page 1 Anybus ® WLAN Access Point IP67 USER MANUAL SCM-1202-094-EN 1.0 ENGLISH...
  • Page 2 HMS Industrial Networks AB has intellectual property rights relating to technology embodied in the product described in this document. These intellectual property rights may include patents and pending patent applications in the USA and other countries. Anybus ® is a registered trademark of HMS Industrial Networks AB. All other trademarks mentioned in this document are the property of their respective holders.
  • Page 3: Table Of Contents

    Wireless Settings ......................14 Advanced Settings .......................18 Event Warning Settings ....................19 System Status ......................22 Administrator .......................24 A Wireless Technology Basics ..................27 B Technical Data........................ 28 Technical Specifications ....................28 Dimensions .........................29 ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 4 This page intentionally left blank...
  • Page 5: Preface

    Preface 3 (30) Preface About This Document This document describes how to install and configure the Anybus WLAN Access Point IP67. For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Document history Version Date...
  • Page 6: Description

    Anybus WLAN Access Point IP67 is an industrial grade IEEE802.11 a/b/g/n dual-band wireless infrastructure hub that can operate as a 2.4 GHz/5 GHz WLAN access point, client or wireless bridge. It is designed to work seamlessly with other Anybus wireless devices to connect machines to a wireless infrastructure.
  • Page 7: Installation

    To prevent water intrusion, the unit should be installed with the connectors on the bottom panel facing down. Overview Fig. 2 Overview 1, 2 Antenna connectors Power connector (M12) LED indicators Reset button Ethernet connector (M12) ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 8: Wall Mounting

    Attach the mounting plate to the back of the unit using the 4 included screws. The plate can be attached vertically or horizontally. Thread the two supplied metal mounting straps through the large slots on the mounting plate and then put the straps around the pole. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 9: Connectors

    The Ethernet connector is an 8-pin A-coded M12 type connector. The Ethernet port supports PoE (Power over Ethernet) compliant with IEEE 802.3af. Function BI_DC+ BI_DD+ BI_DD- BI_DA- BI_DB+ BI_DA+ BI_DC- BI_DB- ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 10: Led Indicators

    Factory Reset Fig. 6 Reset To restore the factory default settings, press and hold RESET on the front panel until the power LED indicator(s) starts to flash, then release the button. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 11: Configuration

    9 (30) Configuration Anybus WLAN Access Point IP67 is configured via the built-in web interface which is accessed by pointing a standard web browser to the IP address of the access point. The default IP address is 192.168.0.2. The computer accessing the web interface must be in the same IP subnet as the access point.
  • Page 12: Overview

    4.1.1 System Info Fig. 8 System Info 4.1.2 LAN Info Fig. 9 LAN Info 4.1.3 Wireless Info Fig. 10 Wireless Info (AP and client modes) ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 13: Basic Settings

    Device Name Define the name of the device Device Location Enter the location of the device Device Description Enter a description for the device 4.2.2 LAN Setting Fig. 12 LAN Setting ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 14 Specify the scheduled time for synchronization Local Date Set a local date manually Local Time Set a local time manually Get Current Date & Time from Browser Click to set the time from your browser ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 15 Fig. 14 DIDO Setting The initial state of the digital outputs DO 1–4 can be set on this page. The default state is Off. The digital inputs DI 1–4 are read-only. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 16: Wireless Settings

    WPA/WPA2 Personal: uses a pre-shared key for authentication that is shared between the AP and all clients. 802.1x: authentication through a RADIUS server. WPA/WPA2 Enterprise: WPA/WPA2 Personal plus 802.1x RADIUS authentication. See also RADIUS Authentication, p. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 17 SSID. Channel Enter the WLAN channel to use for the network. All devices must be configured to use this channel. Security options Wireless settings – AP, p. 14 ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 18 Otherwise, the RADIUS server sends a reject message back to the remote access server and the connection attempt is rejected. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 19 These settings are for advanced configuration only and should normally be HT Require left at their default values. HT Band Width HT Guard Interval HT Extension Channel HT Tx STBC HT Rx STBC HT LDPC ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 20: Advanced Settings

    Enter MAC addresses to be filtered 4.4.2 Misc. Settings Fig. 21 Additional settings Misc. Settings Label Description UPnP Enables or disables UPnP LLDP Protocol Enables or disables the LLDP protocol ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 21: Event Warning Settings

    Enter the IP address of a syslog server if you want the logs to be stored remotely. Leave this field blank to disable remote syslog. Syslog Server Port Specifies the syslog port. The default port is 514. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 22 Fig. 24 SNMP settings SNMP Settings Label Description SNMP Agent Enable/disable SNMP reporting SNMP Trap Server 1-4 Enter the IP address of the SNMP server(s) Community SysLocation As required SysContact ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 23 Configuration 21 (30) 4.5.4 Relay Fig. 25 Fault LED/Relay settings Select events that should trigger the Fault LED and relay output. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 24: System Status

    Click on Refresh to update the list. 4.6.2 DHCP Client List Fig. 27 DHCP client list Lists the devices on your network that are receiving dynamic IP addresses from the built-in DHCP server. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 25 4.6.4 System Log Fig. 29 System log Events and activities are logged continuously in the system log. Click Refresh to renew the page or Clear to clear the log entries. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 26: Administrator

    New Password Enter the new password. The password must consist of 1 to 15 characters and can only include A-Z, a-z, 0–9. Confirm New Password Enter the new password again. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 27 Fig. 32 Firmware upgrade Download the firmware file from www.anybus.com/support and save it to your computer. Make sure that the file is the correct one for your access point model and version. Click on Choose File and select the downloaded firmware file.
  • Page 28 Load factory default Click on Restore Default Settings to restore the unit to the factory default settings. 4.7.5 Restart Fig. 34 Restart Click on Restart Now to restart the unit. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 29: A Wireless Technology Basics

    It is therefore recommended to use a wireless signal analysis tool for determining the optimal placement and configuration of a wireless device. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 30: B Technical Data

    -40 to +85 °C Humidity 5 % to 95 % non-condensing Mounting Wall mount or pole mount Housing Metal Protection class IP67 Certifications See datasheet For more technical details and specifications, visit www.anybus.com/support. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 31: Dimensions

    Appendix B: Technical Data 29 (30) Dimensions Fig. 36 Installation drawing All measurements are in mm. ® Anybus WLAN Access Point IP67 User Manual SCM-1202-094-EN 1.0...
  • Page 32 last page © 2018 HMS Industrial Networks AB Box 4126 300 04 Halmstad, Sweden info@hms.se SCM-1202-094-EN 1.0.8151 / 2018-04-11...
