JETMASTER OUTDOOR QUADRO AL FRESCO WOOD FIRE
INSTALLATION INSTRUCTIONS
(A product of the REPUBLIC of SOUTH AFRICA)
ALL INSTRUCTIONS TO COMPLY WITH AS/NZS2918:2001

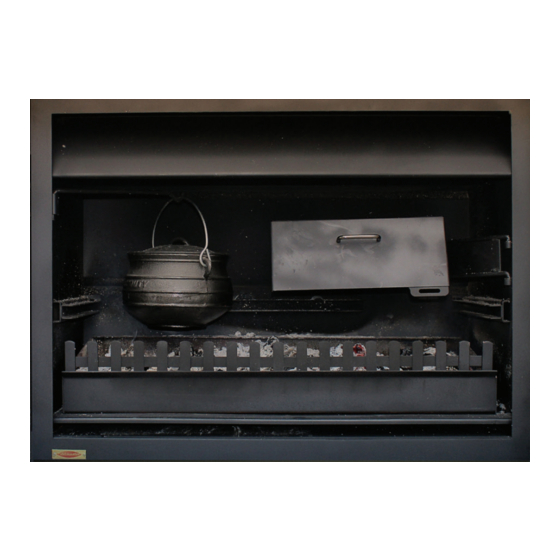

The Al Fresco outdoor wood fire is a combined outdoor entertainment and cooking appliance utilising
4 unique features in one unit – A BBQ grill and hotplate, a Potjie Pot for slow cook stews, a Pizza oven
and a fire for outdoor entertainment heating once cooking is completed.
IMPORTANT: Read all instructions carefully before starting installation.
Failure to follow these instructions may result in a fire hazard and will void any warranty.
Head Office & Showroom
12 Tawari St, Mt Eden, Auckland
Ph: 09 623 6996
thefireplace.co.nz
Advertisement
Table of Contents
Related Manuals for Jetmaster Al Fresco
Summary of Contents for Jetmaster Al Fresco
- Page 1 ALL INSTRUCTIONS TO COMPLY WITH AS/NZS2918:2001 The Al Fresco outdoor wood fire is a combined outdoor entertainment and cooking appliance utilising 4 unique features in one unit – A BBQ grill and hotplate, a Potjie Pot for slow cook stews, a Pizza oven and a fire for outdoor entertainment heating once cooking is completed.
- Page 2 HEBEL HEAT CELL ASSEMBLY REAR FRONT HEBEL HEAT CELL CUTTING SCHEDULE No.1 Base 1 off: 1410mm x 733mm = 1.033m² No.2 Sides 2 off: 1225mm x 733mm = 1.796m² No.3 Rear 1 off: 1260mm x 1225mm = 1.544m² No.4 Front Top Outer 1 off: 300mm x 1260mm = 0.378m² No.5 Front Top Inner 1 off: 400mm x 1260mm = 0.504m²...
- Page 3 FIREBOX INSTALLATION PREPARATION The Hebel Heat Cell shown in Fig 1.1 is constructed from 75mm (centrally reinforced) Hebel panels and is a standalone construction required within a false timber framed chimney chase incorporating a flue system. The Hebel Heat Cell may be substituted with 150 or 200 series Masonry blocks or similar, provided the internal dimensions and details of the heat cell are the same as those shown in Fig 1.1 If the Quadro firebox is to be positioned inside a timber frame out, the following MUST be observed;...
- Page 4 A seasonal touch-up is recommended. Simply remove surface rust with some steel wool and repaint using Black VHT paint (available from your nearest showroom). Please ensure all areas around the firebox are protected when re-painting. For high wind locations, The Fireplace recommends fitting a Stainless Steel Jetmaster Bird Cowl...
