Loading Label Sheets - Konica Minolta bizhub C658 Quick Start Manual

2.8 Loading Paper

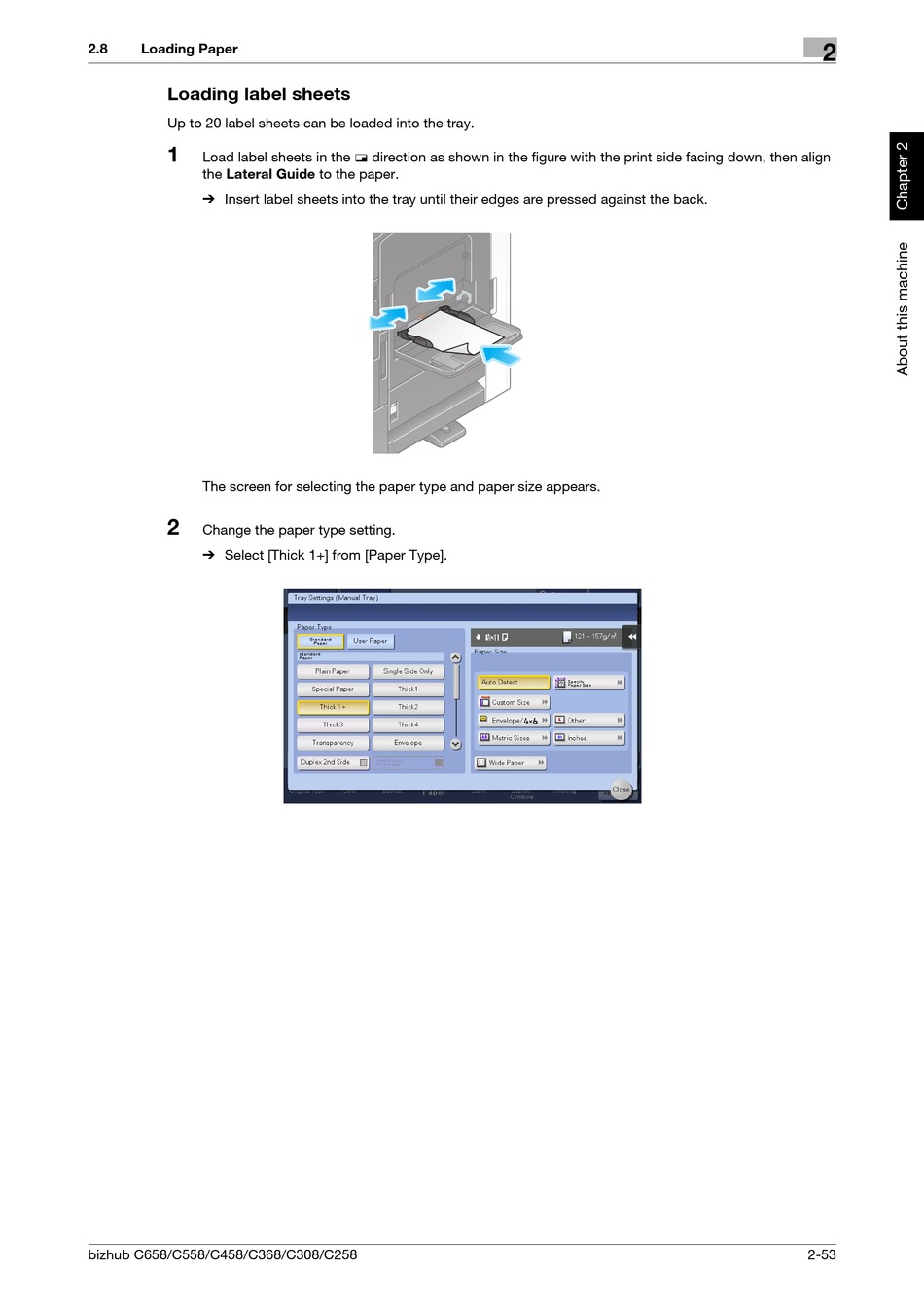

Loading label sheets

Up to 20 label sheets can be loaded into the tray.
1
Load label sheets in the w direction as shown in the figure with the print side facing down, then align
the Lateral Guide to the paper.
% Insert label sheets into the tray until their edges are pressed against the back.
The screen for selecting the paper type and paper size appears.
2
Change the paper type setting.
% Select [Thick 1+] from [Paper Type].
bizhub C658/C558/C458/C368/C308/C258
2
2-53
