Side/Rear - Konica Minolta bizhub C658 Quick Start Manual

2
No. Name
9 Status Indicator
10 Warning Indicator

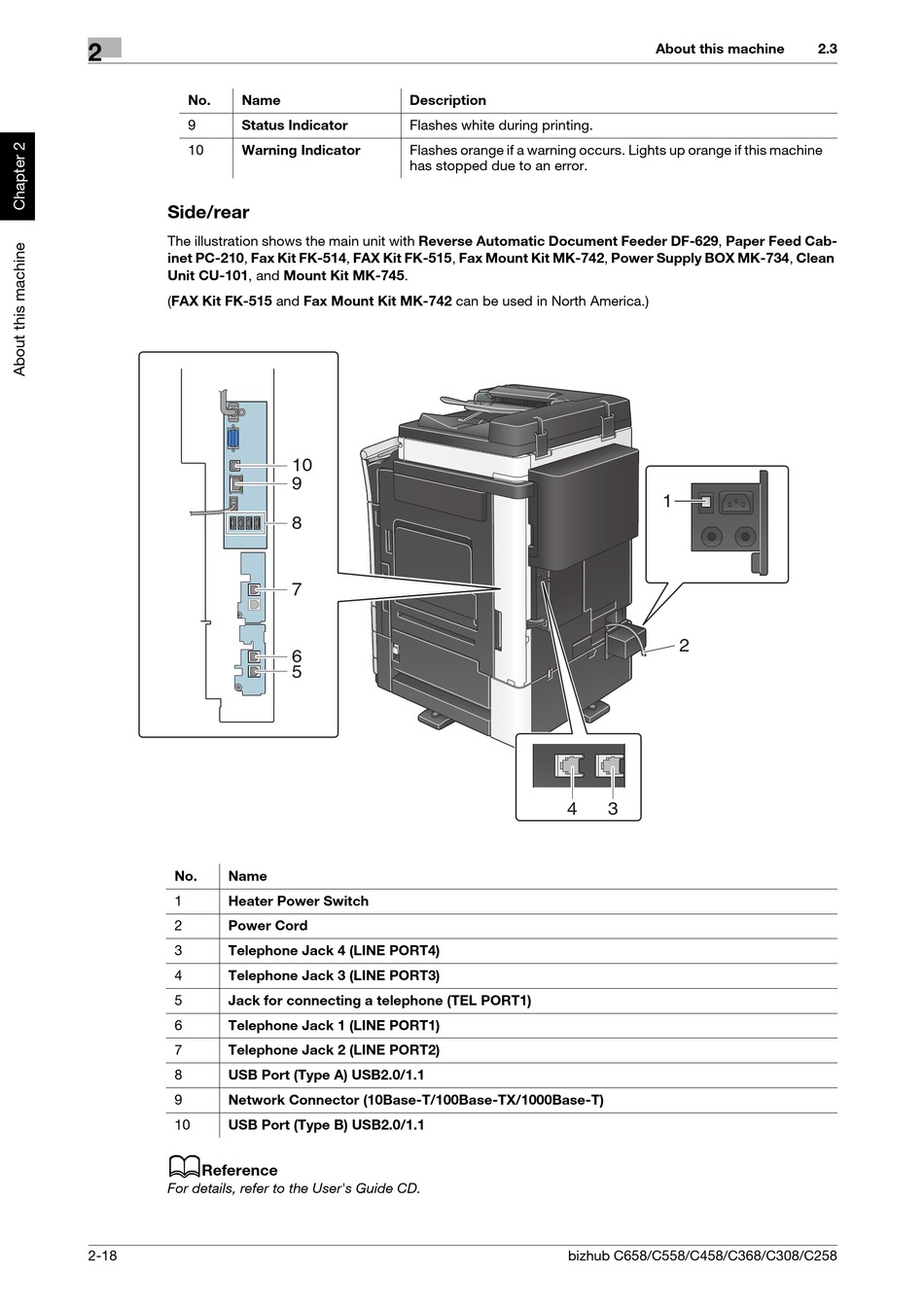

Side/rear

The illustration shows the main unit with Reverse Automatic Document Feeder DF-629, Paper Feed Cab-
inet PC-210, Fax Kit FK-514, FAX Kit FK-515, Fax Mount Kit MK-742, Power Supply BOX MK-734, Clean
Unit CU-101, and Mount Kit MK-745.
(FAX Kit FK-515 and Fax Mount Kit MK-742 can be used in North America.)
No. Name
1 Heater Power Switch
2 Power Cord
3 Telephone Jack 4 (LINE PORT4)
4 Telephone Jack 3 (LINE PORT3)
5 Jack for connecting a telephone (TEL PORT1)
6 Telephone Jack 1 (LINE PORT1)
7 Telephone Jack 2 (LINE PORT2)
8 USB Port (Type A) USB2.0/1.1
9 Network Connector (10Base-T/100Base-TX/1000Base-T)
10 USB Port (Type B) USB2.0/1.1
d
Reference
For details, refer to the User's Guide CD.
2-18
Description
Flashes white during printing.
Flashes orange if a warning occurs. Lights up orange if this machine
has stopped due to an error.
10
9
8
7
6
5
About this machine
1
2
4 3
bizhub C658/C558/C458/C368/C308/C258
2.3
