Assembly Instructions

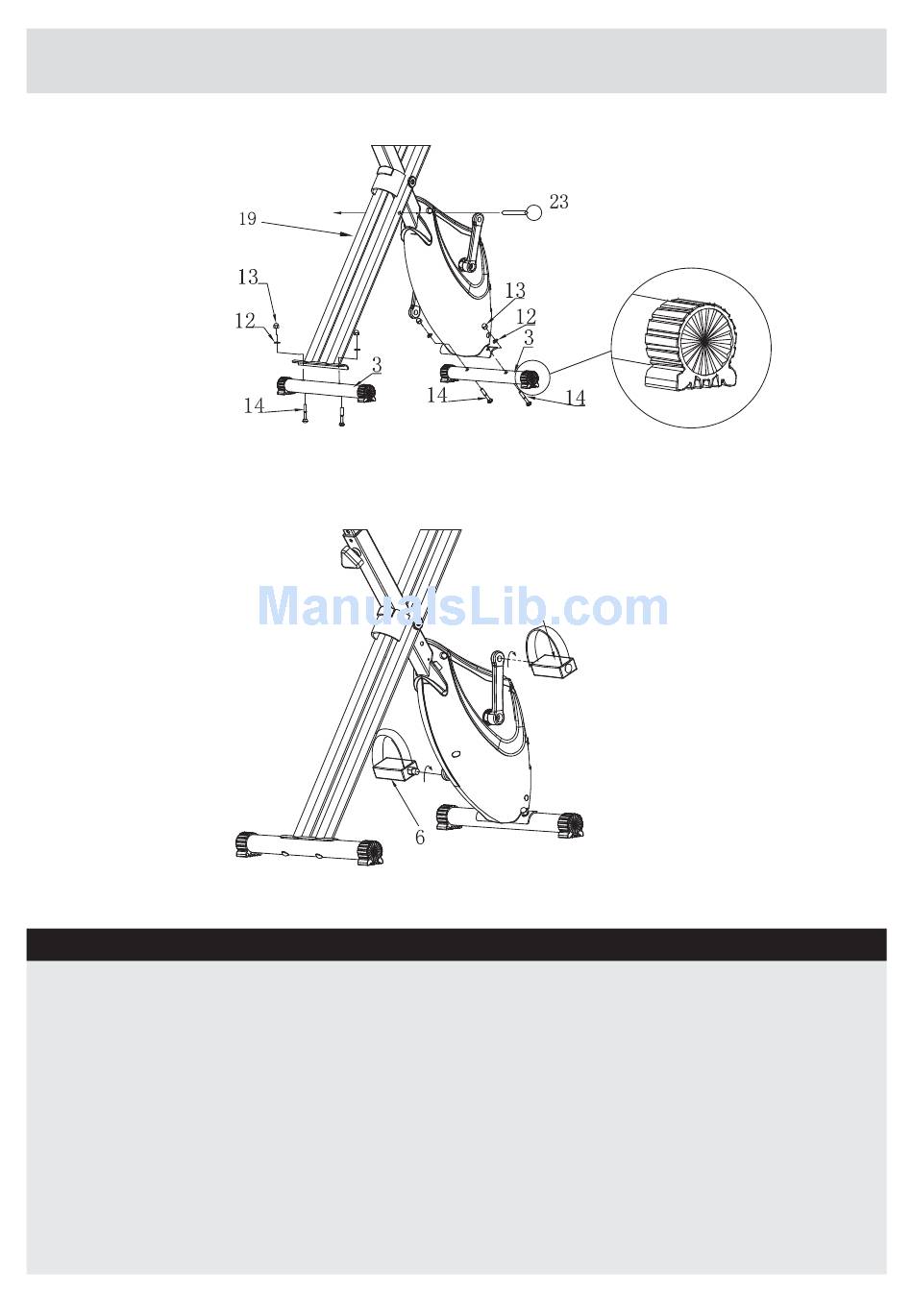

Step 1
Unfold the Main Frame (19).
Lock into position using 1 x
Locking Pin (23).
Connect the Stabiliser (3)
to the Main Frame (19)
using 2 x M8 x 55mm Carriage
Bolts (14), 2 x M8 Curved
Washers (12), and 2 x M8
Dome Nuts (13).
Note: The flat surface of the
stabiliser must be placed
flat horizontally on the ground.
5
Repeat for the other Stabiliser
(3) and tighten all Nuts and
Bolts securely.
Assemble the Pedals (Left and
Right) (6 & 7) to the Pedal
Crank. Both Pedals
MUST be tightened securely
other wise damage may occur
to the Crank.
Turn clockwise to assemble both
the Right Pedal (7) and the Left
Pedal (6).
