Xbox 360 Wireless Controller
Thanks for choosing the Xbox 360 Wireless Controller. Your wireless controller lets you experience
the ultimate in wireless freedom with the same precision, speed, and accuracy as a wired controller.
The Xbox 360 Wireless Controller features:
•
2.4-GHz wireless technology with nine-meter range.
•
Integrated headset port.
•
Adjustable vibration feedback for longer battery life.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XBOX 360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microsoft XBOX 360

Summary of Contents for Microsoft XBOX 360

  • Page 1 Xbox 360 Wireless Controller Thanks for choosing the Xbox 360 Wireless Controller. Your wireless controller lets you experience the ultimate in wireless freedom with the same precision, speed, and accuracy as a wired controller. The Xbox 360 Wireless Controller features: •...

  • Page 2: Insert Batteries

    To enhance your experience with the wireless controller, try the Xbox 360 Rechargeable Battery Pack and the Xbox 360 Play & Charge Kit. If you're looking to expand your wireless experience, consider the Xbox 360 Universal Media Remote and the Xbox 360 Wireless Networking Adapter.
  • Page 3 To insert batteries into the wireless controller AA battery pack: 1. Press the tab on the top of the AA battery pack and pull down to detach it from the controller. 2. Insert two new AA (LR6) batteries with their positive (+) and negative (–) ends positioned as shown on the underside of the battery pack.
  • Page 4 2. If your console is not on, press the power button to turn on the console. 3. Press and release the connect button on the console.
  • Page 5 4. Press and release the connect button on the controller. 5. After the Ring of Light on the controller and console spin and flash once, the controller is connected. The quadrant that remains lit indicates the controller's position.

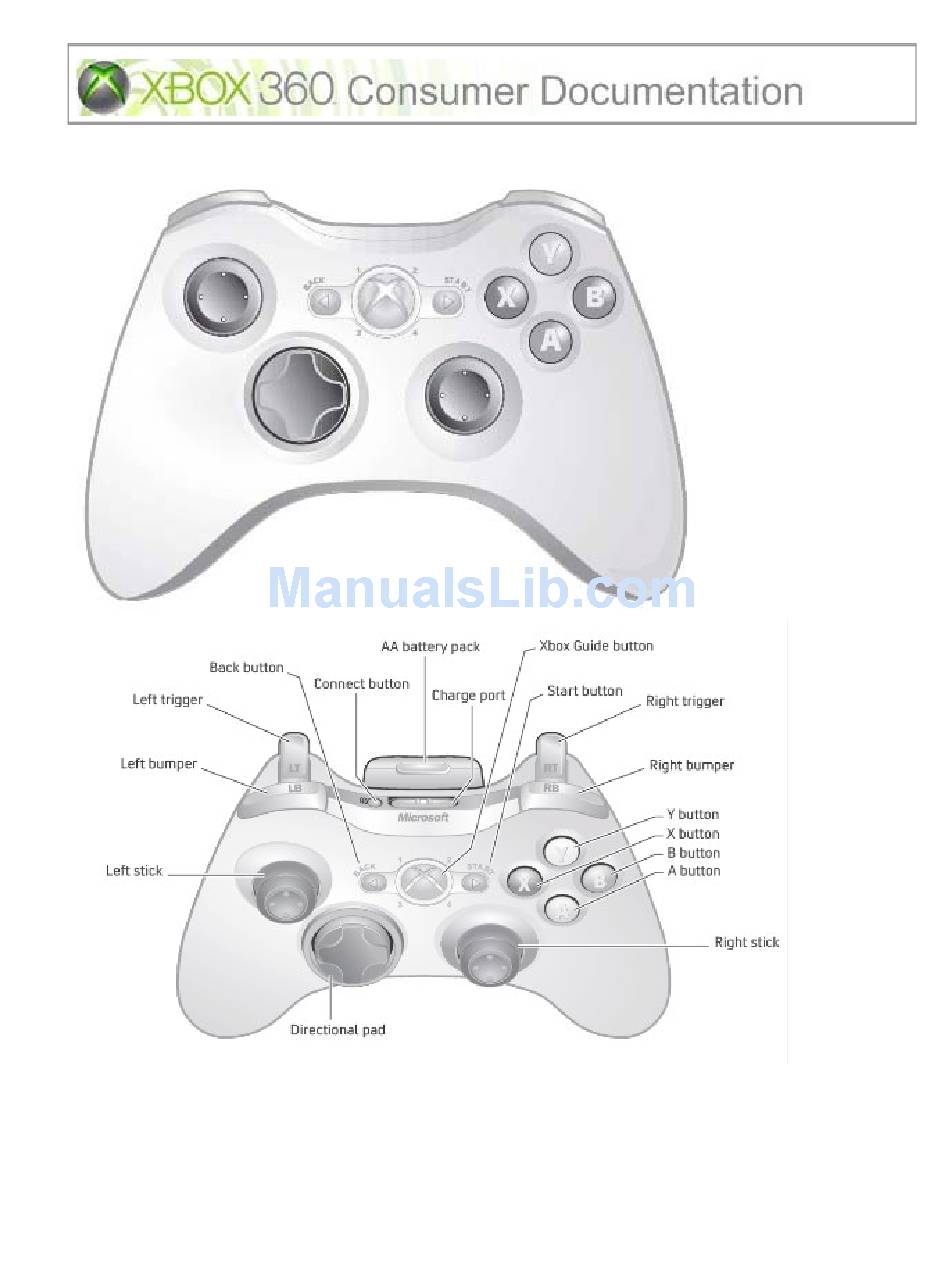

  • Page 6: Using Your Controller

    Using Your Controller Xbox Guide Button The Xbox Guide button in the center of your controller puts the Xbox 360 experience at your fingertips. Press the Xbox Guide button to turn your console on. Once on, pressing the Xbox Guide button gives you immediate access to the Xbox Guide.

  • Page 7: Troubleshooting

    South Korea: 00368-440-0090 • Taiwan: 00801-44-4231 Do not take your Xbox 360 console or its peripherals to your retailer for repair or service unless instructed to do so by an Xbox Customer Support representative. Do Not Attempt Repairs Do not attempt to take apart, service, or modify the Xbox 360 console, power supply, or its peripherals in any way.

  • Page 8: Declaration Of Conformity With Regard To The R&Tte Directive 1999/5/Ec

    Any changes or modifications not expressly approved by Microsoft could void the user's authority to operate the equipment. RF Exposure Compliance Statement This device is designed to be used in hand-held operation only. This device must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 9 ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ. Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux Français exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. [French] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai Italiano requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
  • Page 10 © 2005 Microsoft Corporation. All rights reserved. Microsoft, Xbox, Xbox 360, Xbox Live, the Xbox logos, and the Xbox Live logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
