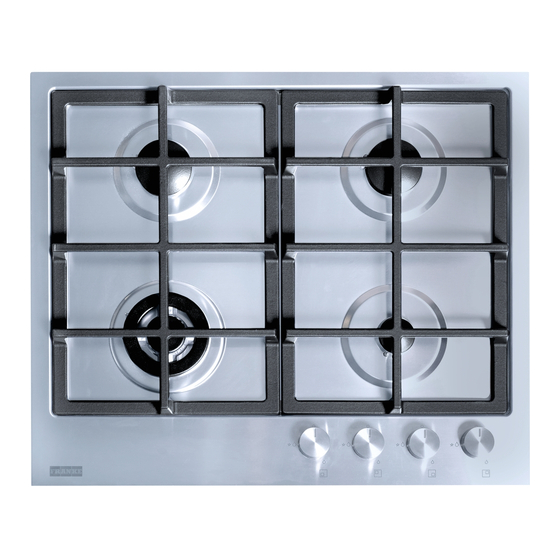

- Page 1 FRG302S1 FRG604S1 FRG905S1 FCG604S1 FCG905S1 INSTRUCTIONS FOR USE AND INSTALLATION Gas Hob For service and spare parts please contact the Franke National technical service centre on (03) 9700 9100 LIB30726 R02-300718...
- Page 3 This appliance is manufactured for household use. Dear customer! Our appliances are packed in the environmentally friendly materials which may be recycled, deposited or destroyed without any hazard to the environment. Such packaging materials are also labeled accordingly. Once the life cycle your appliance is over, make sure not to pollute the environment, and deliver it to the authorized collectors of old household appliances.
-
Page 4: Important Warnings
IMPORTANT WARNINGS The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. • Children shall be kept away unless continuously supervised. Prevent the children to hang around the appliance and warn them properly against the danger of burns. •... -
Page 5: Installation
INSTALLATION Important warnings WHEN THE APPLIANCE IS INSTALLED SO THAT THE BASE CAN BE TOUCHED, A PROTECTING SHIELD MUST BE FITTED. THIS SHIELD MUST BE AT LEAST 20 MM FROM THE LOWEST PART OF THE APPLIANCE AND BE CAPABLE OF WITHSTANDING THE APPLIANCE TEMPERATURES. Installation of the appliance into a kitchen worktop must be performed by an adequately qualified technician. -
Page 6: Connecting To The Power Mains
FRG302S1 FRG604S1 FRG905S1 FCG604S1 FCG905S15 A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) ≥ 50 ≥ 50 ≥ 50 G (mm) ≥ 600 ≥ 600 ≥ 600 H (mm) Installing the foam Before inserting the appliance into the opening in the kitchen worktop, the supplied foam gasket gasket must be attached to the lower side of the glass. -
Page 7: Connecting To The Gas Supply
WARNING! Before any intervention, disconnect the appliance from the power mains. Connect the • appliance in compliance with the electric connections diagram supplied; make sure the relevant network voltage is observed! The ground wire should be connected to the clip indicated by the earth symbol. •... - Page 8 and connections tested for gas leaks. The supply connection point shall be accessible with the appliance installed. The hose assembly shall be suitable for connection to a fixed consumer piping outlet located at a point 800mm to 850mm above the floor and in a region outside the width of the appliance to a distance of 250mm.
-
Page 9: Technical Informations
12.3 MJ/h (ULPG) 27.2 MJ/h (ULPG) 38.3 MJ/h (ULPG) Category gas usage Natural gas 1.0 kPa or Universal LPG 2.75 Operating voltage 220-240 V~ ; 50/60 Hz FCG604S1 FCG905S1 A: Auxiliary SR: Semirapid R: Rapid MW: Mini-Wok DC4M: Dual Crown... - Page 10 • The gas burners are fitted a candle as flame failure device. If the burner flame is Burners extinguished accidentally or unintentionally, e.g. when some liquid boils over or when there is draught in the room, gas supply is automatically cut off, thus preventing the gas from being emitted into the room.
-
Page 11: Operation
OPERATION Control Knob Gas valve closed Ignition Maximum power Minimum power Gas valve closed Ignition Maximum power Internal: Maximum power External: Minimum power Internal: Minimum power External: Gas valve closed User’s instructions Ignition and operation of This appliance must be used for the purpose it was designed for, i.e. domestic cooking. the burners Any other use is considered to be improper and therefore dangerous. -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Do not use a steam cleaning appliance to clean this appliance. The steam could reach the electrical components and cause a short circuit. The appliance should be cleaned regularly, preferably after each use, after cooling down. • To avoid water marks and limescale deposits, use a soft cloth to dry surfaces that have •... - Page 13 After each use of the glass surface, wait for it to cool down and clean it; otherwise, even Glass surface the smallest food residue will be burnt onto the hot surface next time you use the appliance. For regular cleaning and maintenance of the glass surface, use special conditioning agents that form a protective layer on the surface, shielding it from dirt.
-
Page 14: Problem Solving Guide
PROBLEM SOLVING GUIDE During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. • Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse •... - Page 16 Franke S.p.A. via Pignolini, 2 37019 Peschiera del Garda (VR) www.franke.it...
