Output capacitor-less stereo 35mw headphone amplifier; audio power amplifier series

Advertisement

Quick Links

www.ti.com
LM4910
FEATURES
1
Eliminates headphone amplifier output
2
coupling capacitors
Eliminates half-supply bypass capacitor
Advanced pop & click circuitry eliminates
noises during turn-on and turn-off
Ultra-low current shutdown mode
Unity-gain stable
2.2V - 5.5V operation
DESCRIPTION
The LM4910 is an audio power amplifier primarily designed for headphone applications in portable device
applications. It is capable of delivering 35mW of continuous average power to a 32Ω load with less than 1%
distortion (THD+N) from a 3.3V
The LM4910 utilizes a new circuit topology that eliminates output coupling capacitors and half-supply bypass
capacitors. The LM4910 contains advanced pop & click circuitry which eliminates noises caused by transients
that would otherwise occur during turn-on and turn-off.
Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal
amount of external components. Since the LM4910 does not require any output coupling capacitors, half-supply
bypass capacitors, or bootstrap capacitors, it is ideally suited for low-power portable applications where minimal
space and power consumption are primary requirements.
The LM4910 features a low-power consumption shutdown mode, activated by driving the shutdown pin with logic
low. Additionally, the LM4910 features an internal thermal shutdown protection mechanism. The LM4910 is also
unity-gain stable and can be configured by external gain-setting resistors.
PSRR at f = 217Hz
Power Output at V
= 3.3V, R
DD
Shutdown Current
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
2
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Check for Samples:
power supply.
DC
Table 1. Key Specifications
= 32Ω, and THD ≤ 1%
L
Output Capacitor-less Stereo 35mW Headphone
Amplifier
LM4910

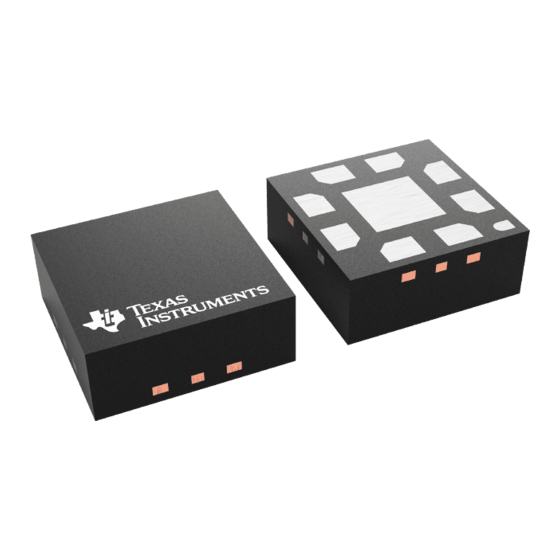

Available in space-saving MSOP, LLP, and
SOIC packages
APPLICATIONS
Mobile Phones
PDAs
Portable electronics devices
Portable MP3 players
Copyright © 2004–2007, Texas Instruments Incorporated
SNAS151G – MAY 2004 – REVISED MARCH 2007
VALUE
UNIT
65
dB (typ)
35
mW (typ)
0.1
µA (typ)
LM4910

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM4910 Boomer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments LM4910 Boomer

  • Page 1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. All trademarks are the property of their respective owners.
  • Page 2: Typical Application

    Figure 3. MSOP Marking Top View G - Boomer Family C2 - LM4910MM Figure 4. SO Marking Top View TT - Die Traceability Bottom 2 lines - Part Number Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 3: Absolute Maximum Ratings

    (6) Machine Model, 220pF-240pF discharged through all pins. Operating Ratings Temperature Range ≤ T ≤ T −40°C ≤ T ≤ 85°C Supply Voltage (V 2.2V ≤ V ≤ 5.5V Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 4: Electrical Characteristics

    (3) Typicals are measured at 25°C and represent the parametric norm. (4) Limits are guaranteed to National's AOQL (Average Outgoing Quality Level). (5) Datasheet min/max specification limits are guaranteed by design, test, or statistical analysis. Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 5 (3) Typicals are measured at 25°C and represent the parametric norm. (4) Limits are guaranteed to National's AOQL (Average Outgoing Quality Level). (5) Datasheet min/max specification limits are guaranteed by design, test, or statistical analysis. Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 6: External Components Description

    Supply bypass capacitor which provides power supply filtering. Refer to the Power Supply Bypassing section for information concerning proper placement and selection of the supply bypass capacitor. Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 7: Typical Performance Characteristics

    SNAS151G – MAY 2004 – REVISED MARCH 2007 Typical Performance Characteristics THD+N THD+N Frequency Frequency THD+N THD+N Frequency Frequency THD+N THD+N Frequency Frequency THD+N THD+N Output Power Output Power Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 8 Output Power THD+N THD+N Output Power Output Power Output Power Output Power vs Load Resistance Load Resistance Output Power vs Output Power vs Load Resistance Supply Voltage Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 9 Supply Voltage Output Power Power Dissipation vs Power Dissipation vs Output Power Output Power Channel Separation Power Supply Rejection Ratio Power Supply Rejection Ratio Power Supply Rejection Ratio Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 10: Application Information

    This allows for the LM4910 to have a stable bias voltage and excellent PSRR performance even without a half-supply bypass capacitor. Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 11: Amplifier Configuration Explanation

    150°C is not exceeded. Since the typical application JMAX is for headphone operation (32Ω impedance) using a 3.3V supply the maximum power dissipation is only 138mW. Therefore, power dissipation is not a major concern. Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 12: Power Supply Bypassing

    Thus, by minimizing the capacitor size based on necessary low frequency response, turn-on time can be minimized. A small value of Ci (in the range of 0.1µF to 0.39µF), is recommended. Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 13: Using External Powered Speakers

    C create a highpass filter that sets the amplifier's lower bandpass frequency limit. Find the coupling capacitor's value using Equation (3). ≥ 1/(2πR The result is Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 14: Minimizing Output Noise / Reducing Output Power

    3) on the LM4910 has a maximum ESD susceptibility rating of 10kV. For higher ESD voltages, the addition of a PCDN042 dual transil (from California Micro Devices), as shown in Figure 7, will provide additional protection. Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 15 Figure 7. The PCDN042 provides additional ESD protection beyond the 10kV shown in the Absolute Maximum Ratings for the V 3 output Figure 8. Output Noise vs R SERIES Figure 9. Figure 10. Output Power vs R SERIES Figure 11. Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 16: Higher Gain Audio Amplifier

    -3dB point of approximately 320kHz. REFERENCE DESIGN BOARD and LAYOUT GUIDELINES MSOP & SO BOARDS (Note: R 2 is not required. It is used for test measurement purposes only.) Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 17: Lm4910 So Demo Board Artwork

    LM4910 www.ti.com SNAS151G – MAY 2004 – REVISED MARCH 2007 LM4910 SO DEMO BOARD ARTWORK Figure 12. Composite View Figure 13. Silk Screen Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 18 LM4910 SNAS151G – MAY 2004 – REVISED MARCH 2007 www.ti.com Figure 14. Top Layer Figure 15. Bottom Layer Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 19: Lm4910 Msop Demo Board Artwork

    LM4910 www.ti.com SNAS151G – MAY 2004 – REVISED MARCH 2007 LM4910 MSOP DEMO BOARD ARTWORK Figure 16. Composite View Figure 17. Silk Screen Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 20 LM4910 SNAS151G – MAY 2004 – REVISED MARCH 2007 www.ti.com Figure 18. Top Layer Figure 19. Bottom Layer Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 21: Lm4910 Llp Demo Board Artwork

    LM4910 www.ti.com SNAS151G – MAY 2004 – REVISED MARCH 2007 LM4910 LLP DEMO BOARD ARTWORK Figure 20. Composite View Figure 21. Silk Screen Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 22: Pcb Layout Guidelines

    This section provides practical guidelines for mixed signal PCB layout that involves various digital/analog power and ground traces. Designers should note that these are only "rule-of-thumb" recommendations and the actual results will depend heavily on the final layout. Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 23: General Mixed Signal Layout Recommendation

    Revision History Date Description 7/12/05 Released to the WEB. 01/16/07 Deleted the phrase “patent pending” on page Submit Documentation Feedback Copyright © 2004–2007, Texas Instruments Incorporated Product Folder Links: LM4910...
  • Page 24 PACKAGE OPTION ADDENDUM www.ti.com 9-Aug-2013 PACKAGING INFORMATION Orderable Device Status Package Type Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Op Temp (°C) Device Marking Samples Drawing (4/5) LM4910LQ/NOPB ACTIVE WQFN 1000 Green (RoHS CU SN Level-3-260C-168 HR -40 to 85 &...
  • Page 25 PACKAGE OPTION ADDENDUM www.ti.com 9-Aug-2013 Addendum-Page 2...
  • Page 26: Tape And Reel Information

    PACKAGE MATERIALS INFORMATION www.ti.com 12-Aug-2013 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Reel Reel Pin1 Type Drawing Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant (mm) W1 (mm) LM4910LQ/NOPB WQFN 1000 178.0 12.4 12.0 LM4910MM/NOPB VSSOP 1000 178.0...
  • Page 27 PACKAGE MATERIALS INFORMATION www.ti.com 12-Aug-2013 *All dimensions are nominal Device Package Type Package Drawing Pins Length (mm) Width (mm) Height (mm) LM4910LQ/NOPB WQFN 1000 213.0 191.0 55.0 LM4910MM/NOPB VSSOP 1000 210.0 185.0 35.0 Pack Materials-Page 2...
  • Page 29: Mechanical Data

    MECHANICAL DATA NGP0008A LQB08A (Rev B) www.ti.com...
  • Page 30: Important Notice

    IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
