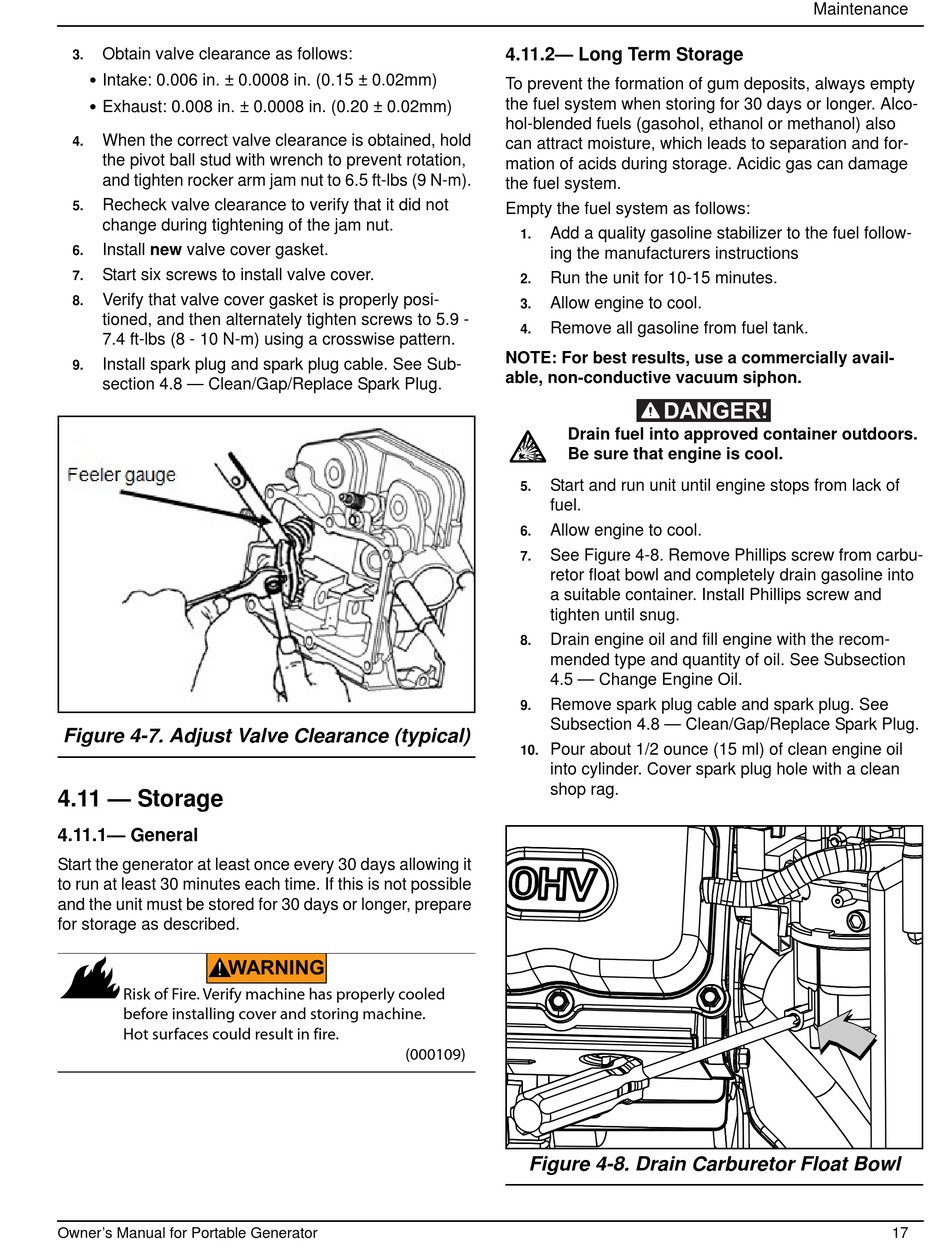

Storage; General; Long Term Storage - Generac Power Systems GP7500E Series Owner's Manual

Obtain valve clearance as follows:
3.
• Intake: 0.006 in. ± 0.0008 in. (0.15 ± 0.02mm)
Exhaust: 0.008 in. ± 0.0008 in. (0.20 ± 0.02mm)
•
When the correct valve clearance is obtained, hold
4.
the pivot ball stud with wrench to prevent rotation,
and tighten rocker arm jam nut to 6.5 ft-lbs (9 N-m).
Recheck valve clearance to verify that it did not
5.
change during tightening of the jam nut.
Install new valve cover gasket.
6.
Start six screws to install valve cover.
7.
Verify that valve cover gasket is properly posi-
8.
tioned, and then alternately tighten screws to 5.9 -
7.4 ft-lbs (8 - 10 N-m) using a crosswise pattern.
Install spark plug and spark plug cable. See Sub-
9.
section 4.8 — Clean/Gap/Replace Spark Plug.
Figure 4-7. Adjust Valve Clearance (typical)
4.11 — Storage
4.11.1— General
Start the generator at least once every 30 days allowing it
to run at least 30 minutes each time. If this is not possible
and the unit must be stored for 30 days or longer, prepare
for storage as described.
WARNING
Risk of Fire. Verify machine has properly cooled
before installing cover and storing machine.
Hot surfaces could result in fire.
Owner's Manual for Portable Generator
4.11.2— Long Term Storage
To prevent the formation of gum deposits, always empty
the fuel system when storing for 30 days or longer. Alco-
hol-blended fuels (gasohol, ethanol or methanol) also
can attract moisture, which leads to separation and for-
mation of acids during storage. Acidic gas can damage
the fuel system.
Empty the fuel system as follows:
Add a quality gasoline stabilizer to the fuel follow-
1.
ing the manufacturers instructions
Run the unit for 10-15 minutes.
2.
Allow engine to cool.
3.
Remove all gasoline from fuel tank.
4.
NOTE: For best results, use a commercially avail-
able, non-conductive vacuum siphon.
$
Drain fuel into approved container outdoors.
Be sure that engine is cool.
Start and run unit until engine stops from lack of
5.
fuel.
Allow engine to cool.
6.
See Figure 4-8. Remove Phillips screw from carbu-
7.
retor float bowl and completely drain gasoline into
a suitable container. Install Phillips screw and
tighten until snug.
Drain engine oil and fill engine with the recom-
8.
mended type and quantity of oil. See Subsection
4.5 — Change Engine Oil.
Remove spark plug cable and spark plug. See
9.
Subsection 4.8 — Clean/Gap/Replace Spark Plug.
Pour about 1/2 ounce (15 ml) of clean engine oil
10.
into cylinder. Cover spark plug hole with a clean
shop rag.
(000109)
Figure 4-8. Drain Carburetor Float Bowl
