General Information
Section 2
2.1 — Unpacking
• Remove all packaging material.
• Remove separate accessory kit box.
• Remove generator from carton.
2.1.1— Accessory Kits
Check contents against the list in Table 2-1. If any parts
are missing or damaged, or if any problems occur during
assembly, call the Generator Helpline at 1-888-436-3722.
Table 2-1. Contents
Parts Description
General
Generator
Owner's Manual
Product Registration Card
(English, Spanish, and French)
Warranty and Emission Sheets
Bottle of SAE 30 Oil
Frame Foot (L)
Handle Assembly
Battery Charger
Hardware Bag
Cotter Pin (A)
1/2" Flat Washer (B)
9-1/2" Wheel (C)
Axle Pin (D)
M8 Hex Bolt (F)
M8 Hex Flange Nut (H)
2.2 — Assembly
The generator requires some assembly prior to usage. If
problems arise when assembling the generator, call 1-
888--436-3722.
2.2.1 — Required Tools
• Wrenches: 13 mm (2 ea), 8 mm (2)
• Needle nosed pliers
Owner's Manual for Portable Generator
2.2.2 — Installing Wheels
NOTE: The wheels are not intended for over-the-road
use.
1. Install the Wheels as follows (Figure 2-1):
— Slide the Axle Pin (D) through the Wheel (C),
Wheel Bracket on the frame and a 5/8" Flat
Washer (B).
— Insert the Cotter Pin (A) through the Axle Pin (D).
Use the needle nosed pliers to bend open to lock
in place.
Quantity
1
1
1
1
1
2
1
1
2
2.2.3 — Installing Frame Feet
2
1. Install the Frame Foot Assemblies as shown (Figure
2
2-2).
2
— Slide the M8 Hex Bolts (F) through the holes in the
Frame Rail.
5
— Slide the Frame Foot (L) onto the Hex Head Bolts
5
(F). Then install the Locking Flange Nuts (H).
Tighten securely using a 12 mm and 13 mm
wrench.
2. Repeat the Step 1 to install the other Frame Foot

Assembly.

B
A

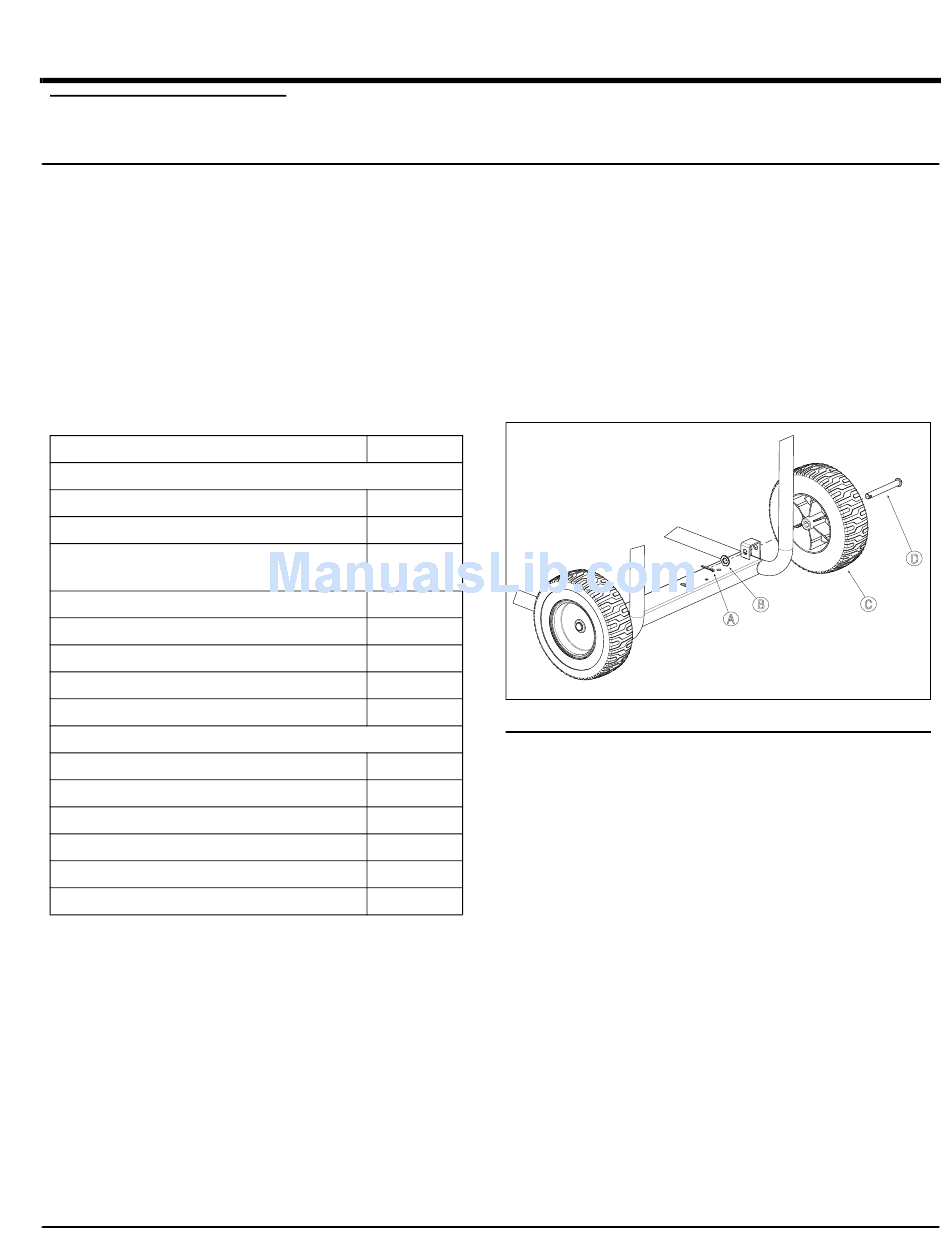

Figure 2-1. Wheel Assembly
D
C
5
