CONCERT CDP2400USB User Manual
◊
The music sequencer (see chapter 5.5) must not be set
to playback or record-ready mode when you switch to
DEMO mode.
◊
You can adjust the playback tempo of the piano music
demos (see chapter 5.4).
◊
Select any sound you like to accompany the piano music
demos; you can also add the room, modulation and
brilliance effects (see chapter 4.2). Select and set the sound
colour before you enter DEMO mode.
2.4 Selecting and playing sounds
The CDP2400USB comes with 14 different sound colours covering
a wide spectrum of sounds. You can select a sound in the TONE
section.
1) Press one of the 14 buttons in the TONE section to select the
sound of your choice.
The LED above the sound button lights up to show that the
corresponding sound has been selected. The selected sound can
be played over the entire keyboard.
◊
The volume of the sound depends on how heavily you play
the keys (not applicable to CEMBALO 1 and 2, CHURCH 1
and 2, and CLICK ORGAN).
◊
TIP: You can also select two sounds at the same time.
3. Control elements and
connections
3.1 Control panel

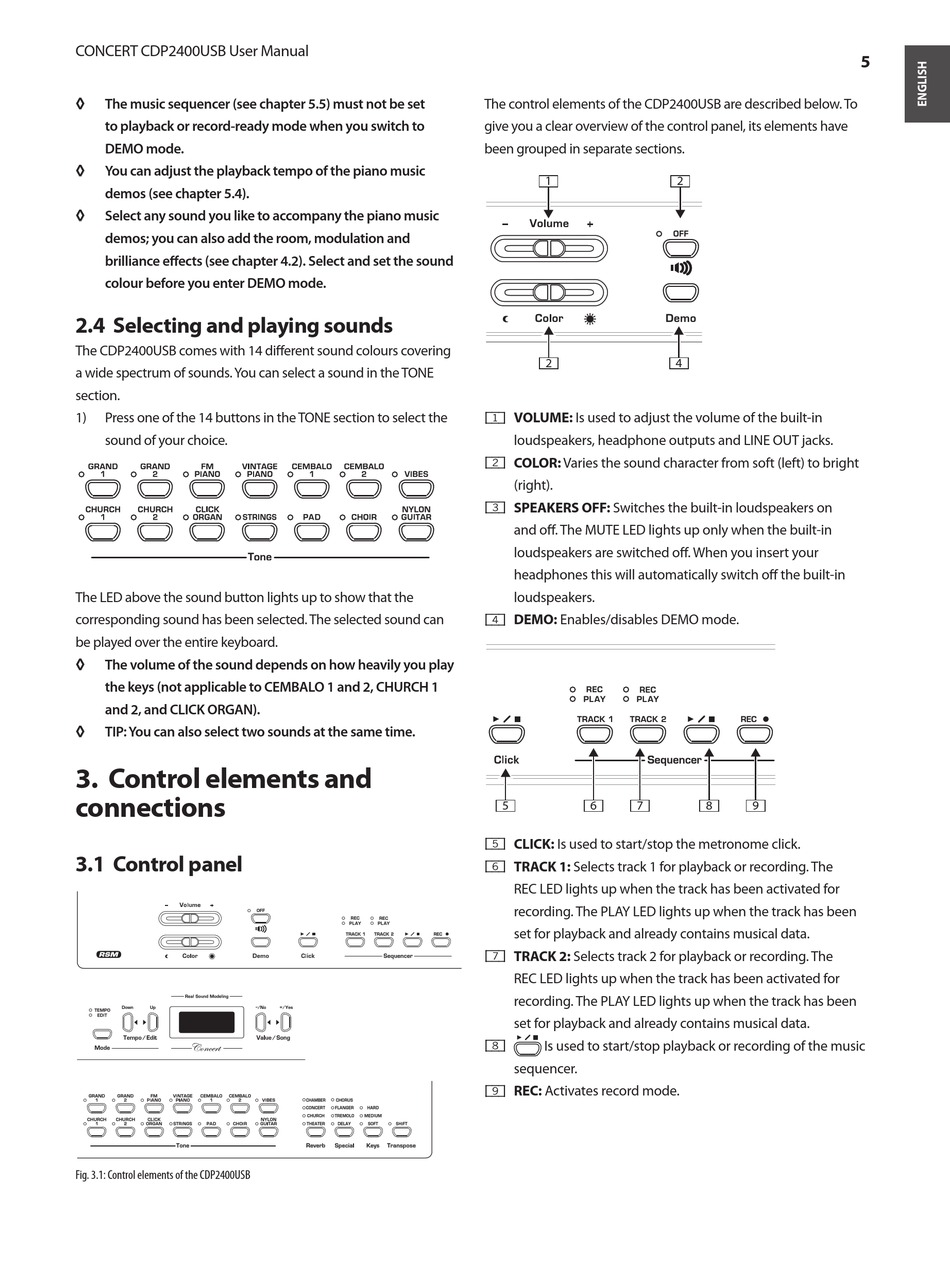

Fig. 3.1: Control elements of the CDP2400USB
The control elements of the CDP2400USB are described below. To
give you a clear overview of the control panel, its elements have
been grouped in separate sections.
1
2
VOLUME: Is used to adjust the volume of the built-in
{ 1 }
loudspeakers, headphone outputs and LINE OUT jacks.
COLOR:
Varies the sound character from soft (left) to bright
{ 2 }
(right).
SPEAKERS OFF: Switches the built-in loudspeakers on
{ 3 }
and off. The MUTE LED lights up only when the built-in
loudspeakers are switched off. When you insert your
headphones this will automatically switch off the built-in
loudspeakers.
DEMO: Enables/disables DEMO mode.
{ 4 }
5 6 7
CLICK: Is used to start/stop the metronome click.
{ 5 }
TRACK 1: Selects track 1 for playback or recording. The
{ 6 }
REC LED lights up when the track has been activated for
recording. The PLAY LED lights up when the track has been
set for playback and already contains musical data.
TRACK 2: Selects track 2 for playback or recording. The
{ 7 }
REC LED lights up when the track has been activated for
recording. The PLAY LED lights up when the track has been
set for playback and already contains musical data.
Is used to start/stop playback or recording of the music
{ 8 }
sequencer.
REC: Activates record mode.
{ 9 }
2
4
8 9
5
