22
•
Use the MIDI OUT to connect additional synthesizers or a
music computer receiving MIDI data from the CDP2400USB
•
Use the MIDI IN to send playing data from other MIDI
controller keyboards or a music computer to the sound
generator of the CDP2400USB.
•
The MIDI THRU jacks passes on the MIDI data received via
the MIDI IN jack without modification. In combination with a
music computer you can thus integrate another keyboard or
sound module into the MIDI chain comprising CDP2400USB
and music computer.
6.3.1

MIDI connection to other sound modules

You can use the CDP2400USB to control external sound modules
via MIDI. This allows you to use the keyboard and pedals of the
digital piano to control the sound generators of other synthesizers
or sound modules not equipped with a keyboard. When you also
connect the audio signal of the external sound module to the
CDP2400USB, as described in chapter 6.1, all sounds played in
addition to the sounds of the CDP2400USB can be heard through
the internal loudspeakers.

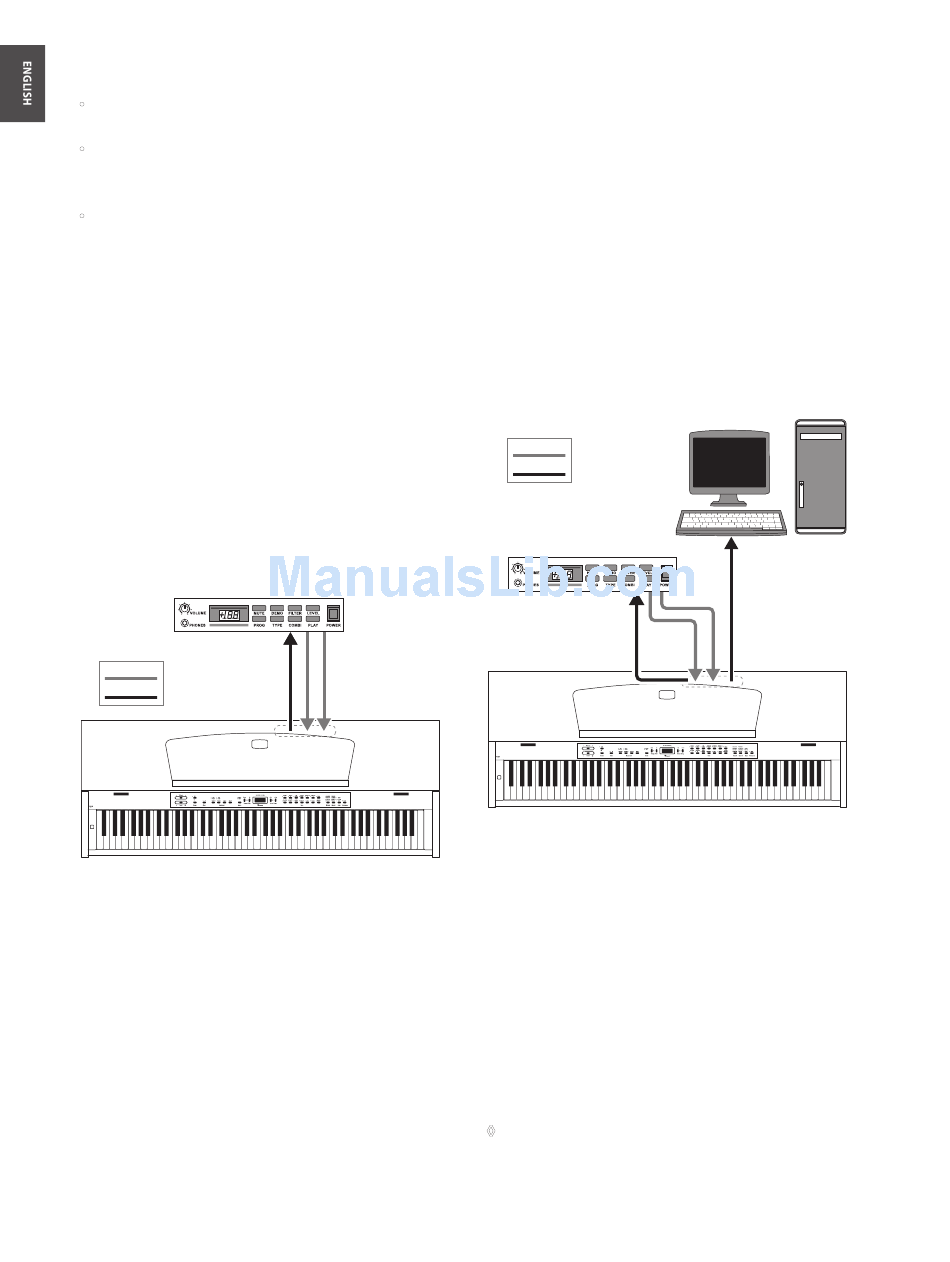

The following illustration shows a set-up comprising the
CDP2400USB and an external sound module.
Sound module
Audio
MIDI
MIDI OUT
Digital Piano
Fig. 6.3: Controlling external MIDI sound modules
1) Connect the MIDI OUT jack of the CONCERT to the MIDI IN jack
of the external sound module.
2) Be sure to set the MIDI transmit/receive channels of both
instruments to the same number (see chapter 6.3.3).
3) Connect the audio outputs of the sound module to the
LINE IN jacks of the CDP2400USB, if you want to play back
the sounds of the external device through the digital piano
loudspeakers.
6.3.2
sequencing software
You can operate the CDP2400USB in combination with a
sequencing program such as "Cubase", "Logic" or the included
"energyXT2.5 Compact BEHRINGER Edition. " Sequencing software
gives you a wealth of powerful functions to record and process
MIDI data. For example, you can record several tracks to create
complex music pieces. Additional options are the production of
sheet music or playback of music pieces. What is more, you can
transfer the data of the built-in music sequencer to your computer
for permanent archiving.
The following illustration shows a set-up comprising the
CDP2400USB and a music computer. The connection of an
external sound module is optional.
Audio
MIDI
Sound module
LINE IN
Fig. 6.4: USB connection with an external sound module.
1) Connect the piano's USB jack on the CONCERT to a free USB
port on your computer.
2) Connect the MIDI IN jack of the sound module to the MIDI
OUT jack of the CONCERT.
3) Connect the audio outputs of the sound module to the LINE
IN jacks of the CONCERT if you want to play back the sounds of
the external device through the digital piano loudspeakers.
6.3.3
The CDP2400USB provides eight different functions to determine
how the instrument processes MIDI information.
◊
Please enter EDIT mode (see chapter 5.1) and select the
following functions.
CONCERT CDP2400USB User Manual
USB connection to a computer with
MIDI OUT LINE IN
Digital Piano

MIDI settings

USB
