The LED above the TRANSPOSE button lights up when the
transposition feature is active, i.e. when a value other than
zero has been set.
◊
If a transposition interval has already been set, you can
enable/disable the transposition function using the
TRANSPOSE button.
5.3

Layer mode settings

In layer mode you can effect additional settings for advanced
playing with two sounds at the same time.
All sounds are numbered internally from 1 through 14. This order of
sounds determines which sound is addressed internally as voice #1,
voice #2, etc., which in turn is important for making changes to the
sounds selected.
1 2 3
8 9 10 11

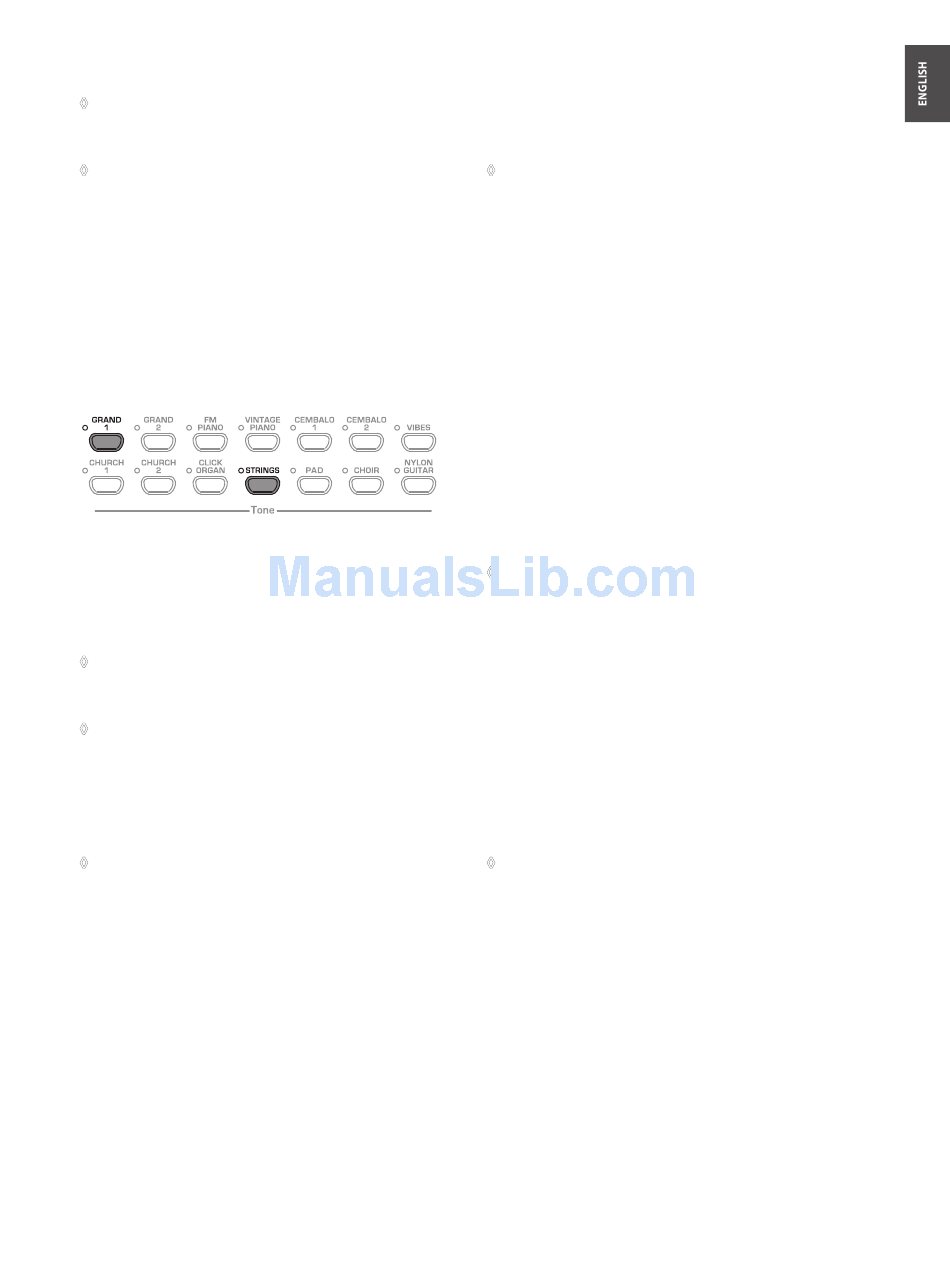

In our example the two sounds GRAND 1 and STRINGS are being
used in layer mode. Internally, GRAND 1 is #1, STRINGS is #11. The
sound with the lower number is addressed internally as voice #1
(here: GRAND 1), the sound with the higher number as voice #2
(here: STRINGS).
◊
Please note the order of voices used in the sound
combination selected, in order to understand which
settings apply to which voice in the examples below.
◊
A layer combination consisting of two sounds must be set
up before you can adjust the following functions
(see chapter 4.1).
5.3.1

Volume ratio

Use this function to adjust the volume ratio of the selected sounds.
◊
Please enter EDIT mode (see chapter 5.1) and select the
following function.
Function:
E3. 1
Value:
0 . . . 20
Description:
Same volume for voice #1 and voice #2
10:
<10: Voice #2 louder than voice #1
>10: Voice #1 louder than voice #2
4 5 6 7
12 13 14
5.3.2 Detune
This function allows you to detune the selected sounds slightly
against each other.
◊
Please enter EDIT mode (see chapter 5.1) and select the
following function.
Function:
E3. 2
Value:
-10 . . . 10
Description:
Same pitch for voice #1 and voice #2
0:
<0: Voice #2 higher than voice #1
>0: Voice #1 higher than voice #2
5.3.3 Transposition
Use this function to transpose the selected sounds up or down
by one octave. Depending on which sounds are used in a
combination, the tranpose function can help make the sounds
more homogeneous.
Example:
In a combination of GRAND 1 and STRINGS, the STRINGS sound
too low. In this case, it helps to transpose the STRINGS up by one
octave.
◊
Please enter EDIT mode (see chapter 5.1) and select the
following function.
Function: E3. 3 (voice #1 transposed by an octave)
E3. 4 (voice #2 transposed by an octave)
Value:
-1 . . . 1
Description:
No transposition
0:
Transposition down by one octave
-1:
Transposition up by one octave
1:
5.3.4

Effect intensity

This function allows you to edit the effect intensity of the
modulation effect for the selected sounds.
◊
Please enter EDIT mode (see chapter 5.1) and select the
following function.
Function: E3. 5 (effect intensity voice #1)
E3. 6 (effect intensity voice #2)
Value:
0 . . . 20
Description:
Effect intensity (default setting)
1 . . . 20:
No effect
0:
