Product description

3.1 General description
The Basic line of sandblasting units are designed for use in dental laboratories to remove investment
residues, oxides on cast objects, and for surface treatment�
3.2 Components and functional elements
1 Selector switch
2
Pressure regulator
3 Appliance socket
4 ON / OFF switch
5
Tank lid
6 Pressure gauge
7 Protection screen
8
Hand piece
5
4
3
2
1
20
9 Hand sleeves
10 Base grid
11 Air connection
12 Water trap
13 Water trap valve
14 Foot switch connection (A)
15 Foot switch connection (B)
16 Mixing chamber
6
7
8
9
10
19
21
- 5 -
17 Filter cartridge
18 Suction tube
19 Sandblasting tank
20 Foot switch
21 Compressed air tube
22 Power cord
11 12
13
14
15
16
18 17
22

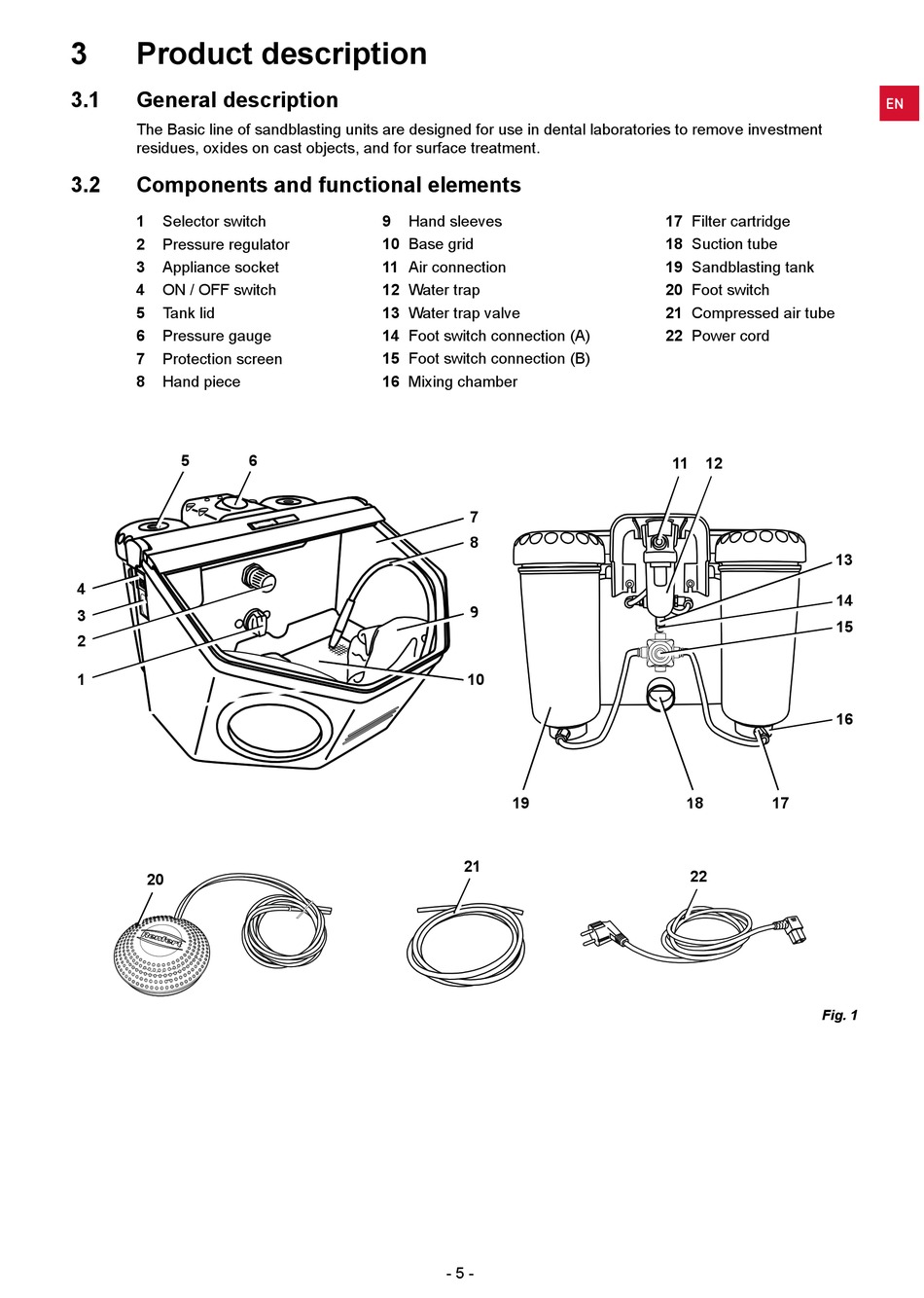

Fig. 1
