Burkert Type 2000 Operating Instructions Manual

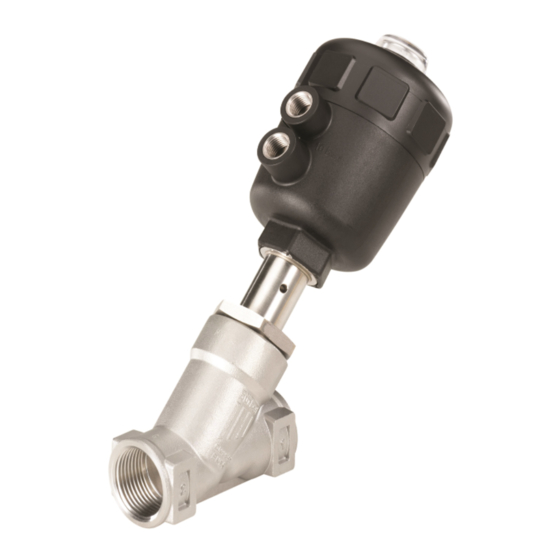

2/2-way angle-seat valve 3/2-way globe valve
Hide thumbs Also See for Type 2000:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operating Instructions Manual
Operating Instructions
Type 2000/2002
2/2-Way Angle-Seat Valve
3/2-Way Globe Valve

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Type 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Burkert Type 2000

Summary of Contents for Burkert Type 2000

  • Page 1 Operating Instructions Type 2000/2002 2/2-Way Angle-Seat Valve 3/2-Way Globe Valve...
  • Page 2 We reserve the right to make technical changes without notice. © 2003 Bürkert Werke GmbH & Co. KG Operating Instructions No. 893086 - ind 01 - oct 03...

  • Page 3: Table Of Contents

    2/2 OR 3/2-WAY ANGLE-SEAT VALVE TYPE 2000/2002 3/2-WAY GLOBE VALVE TYPE 2002 CONTENTS GENERAL INFORMATION ..........................Symbols ................................. Safety instructions ............................Scope of delivery .............................. Guarantee provisions ............................. GENERAL DESCRIPTION ..........................TECHNICAL DATA ..............................Design ..................................Actuator size ............................... Material ...................................

  • Page 4: General Information

    Please observe the instructions contained in this operating manual as well as the application conditions and permissible parameters as specified in the data sheet for device Type 2000/2002 so that the device functions flawlessly over a long service life. •...

  • Page 5: Scope Of Delivery

    GENERAL DESCRIPTION The externally piloted angle-seat valve (Type 2000/2002) / globe valve (Type 2002) consists of a pneumatically operated piston actuator and a 2/2-way valve body (angle-seat valve Type 2000/2002) / 3/2-way valve body (globe valve Type 2002).

  • Page 6: Technical Data

    TECHNICAL DATA Design 2/2-way globe valve Type 2000/2002) Control function B Control function A Normally open with spring force Normally closed with spring force (when de-energised). (when de-energised). 3/2-way globe valve Type 2002 Control function A Control Ports function Port connection 1...

  • Page 7: Actuator Size

    Type 2002 can actuate valve operations other than those intended for the selected control function. Actuator size Actuator size Ø [mm] Materials Type 2002 Valve Type 2000 Angle-seat valve Globe valve Threaded body: Gunmetal, Gunmetal, St. steel 316L Stainless steel Body material...

  • Page 8: Temperature Range

    Operating temperature range Actuator Actuator size Actuator Media temperature Ambient type [mm] casing (with PTFE seal) temperature -10 to -10 to Ø 40 to 63 (see Diagram 1) (see Diagram 1) Ø 80 to 125 -10 to +180 °C -10 to +60 °C Ø...

  • Page 9: Maximum Pilot Pressure 2/2-Way And 3/2-Way Valve

    Maximum pilot pressure 2/2-way and 3/2-way valve Max. permissible Actuator type Actuator size [mm] pilot pressure Ø 40 to 100 10 bar B/C (PA actuator) Ø 125 7 bar Ø 40 to 80 10 bar D (PPS actuator) Ø 100 to 125 7 bar Operating pressure 3/2-way valve The permissible operating pressure for control function A is:...

  • Page 10: Minimum Pilot Pressures

    Minimum pilot pressures Flow direction below seat (media flows in the opposite direction to valve closing direction) The necessary minimum pilot pressure P for control function A equals: Actuator size [mm] Ø 40 Ø 50 Ø 63 Ø 80 Ø 100 Ø...
  • Page 11 Flow direction above seat (media flows in the opposite direction to valve closing direction) The pilot pressure P for control function A: see Diagram 3. Pilot pressure [bar] Pilot pressure [bar] Pilot pressure [bar] Pilot pressure [bar] Pilot pressure [bar] Pilot pressure [bar] Diagram 3: Pilot pressure P for control function A.

  • Page 12: Port Connections

    Port connections Type 2000 Typ 2002 Angle-seat valve Globe valve Threaded port: NPT 3/8 to NPT 2 1/2 G 1/2 to G 2 NPT 3/8 to NPT 2 1/2 (G upon request)) (NPT is not available) (G upon request) Weld end connection:...

  • Page 13: Commissioning

    COMMISSIONING Installation of valve Mounting position: any; preferentially with the actuator oriented upward. ➔ Install in accordance with the flow direction. CAUTION! In all cases, remove all contamination from the piping (excess sealing material, metal debris, etc.). Procedure for installing the valve: ➔...

  • Page 14: Electrical Connection Of Pilot Valve

    Connections for 3/2-way valve Control Ports function A, B: Service ports P, P1: Pressure inlets Pressure relief Connection of the pilot fluid: Control function A, to lower connection port Control function B, to upper connection port Control function I, at the upper and lower actuator ports using a threaded G 1/8"...

  • Page 15: Maintenance And Servicing

    MAINTENANCE AND SERVICING Repair CAUTION! Before dismounting or opening the device, depressurize the media supply and pilot air supply piping system. Spare part sets (kits) Includes as consumable parts a valve seat or sealing seat set (see drawing). SET 6 Valve seat (2/2-way valve, gunmetal body) Item No.
  • Page 16 SET 5 Sealing set for PA actuator Actuator Fitting Item No. Item No. size valve sizes Gunmetal body St.Steel body 011 420 011 420 C (Ø 40) DN 13/20/25 011 308 011 369 D (Ø 50) DN 13/20/25 011 334 011 372 E (Ø...

  • Page 17: Spare Parts Drawings

    Spare parts drawings Drawing showing spare part sets for angle-seat valves Sealing set SET 5 Valve seat SET 6 FPM only used with gunmetal body 2000/2002 - 15...
  • Page 18 Drawing showing spare part sets for 3/2-way globe valve Sealing sets SET 5 (same as 2/2-way angle-seat valve) Valve seat (upon request) 16 - 2000/2002...
  • Page 20 Phone: Int.(+45 44)50 75 00, Nat.44-50 75 00 E-mail: info.se@burkert.com Fax: Int.(+45 44)50 75 75, Nat.44-50 75 75 BC-SA South Africa, Südafrika E-mail: info.dk@burkert.com Burkert Contromatic Pty. Ltd. BC-E Spain, Spanien 233 Albert Amon Road Burkert Contromatic, S.A. Millenium Business Park Avda. Barcelona, 40...
  • Page 21 Addresses of BC offices/Adressliste BC Länder APAC BC-SIN Singapore, Singapur BC-HKG (China) Hong Kong, Hongkong Burkert Contromatic Singapore Pte. Ltd. Burkert-Contromatic (China/HK) Ltd. 51 Ubi Avenue 1, #03-14 Unit 708 Prosperity Centre, Paya Ubi Industrial Park 77 - 81, Container Port Road Singapore 408933 Kwai Chung, N.T.
  • Page 22 Addresses of BC offices/Adressliste BC Länder NAFTA BC-BRA Brazil, Brasilien Burkert-Contromatic Brasil Ltda. Rua Américo Brasiliense, 2171 cj.1007 04715-005 São Paulo - SP Brazil Phone: Int.(+55 11)5182 0011, Nat.(011)5182 0011 Fax: Int.(+55 11)5182 8899, Nat.(011)5182 8899 E-mail: burkert@burkert.com.br BC-CDN Canada, Kanada Burkert Contromatic Inc.
  • Page 23 Adressliste Bürkert Fluid Control Systems Deutschland Vertriebs-Center Dienstleistungs-Center Berlin Dortmund Bruno-Taut-Straße 4 Holzener Straße 70 12524 Berlin 58708 Menden Telefon: Int. (+4930)6797170, Nat. (030)6797170 Telefon: Int. (+492373)968134, Nat. (02373)968134 Fax: Int. (+4930)67971766, Nat. (030)67971766 Fax: Int. (+492373)968132, Nat. (02373)968132 Hannover Dresden Rendsburger Straße 12 Christian-Bürkert-Straße 2...
  • Page 24 The smart choice of Fluid Control Systems www.burkert-usa.com...
