Pointer Screen - satmap ACTIVE 10 Full User Manual

6.02a COMPASS: POINTER
6.02a POINTER Screen
(GPS MAP → MAIN MENU → COMPASS →
POINTER)
Within the COMPASS menu there is the
option of following a Pointer, which points
you in the direction of your desired destination
ie. a waypoint, Point Of Interest (POI), Line Of
Interest (LOI), Area Of Interest (AOI) or GoTo
point.
To access the POINTER screen, press the
Pointer button on the COMPASS
(section 6.02).
Buttons:
Target type
Scroll through overlays giving data on either
nearest Waypoint, Point Of Interest, Line Of
Interest, Area Of Interest, or Go To Point
GPS Map
Return to GPS MAP screen
Compass
COMPASS
Return to screen (section 6.02)
Primary Screens
Go to TRIP LOG screen (section 6.03) and
scroll through primary screens (section 4.00)
Note: You need at least 1 POI or route on the
map for the Pointer to work. (It does not work
if you only have one Grid, AOI or LOI).
© Satmap Systems Ltd

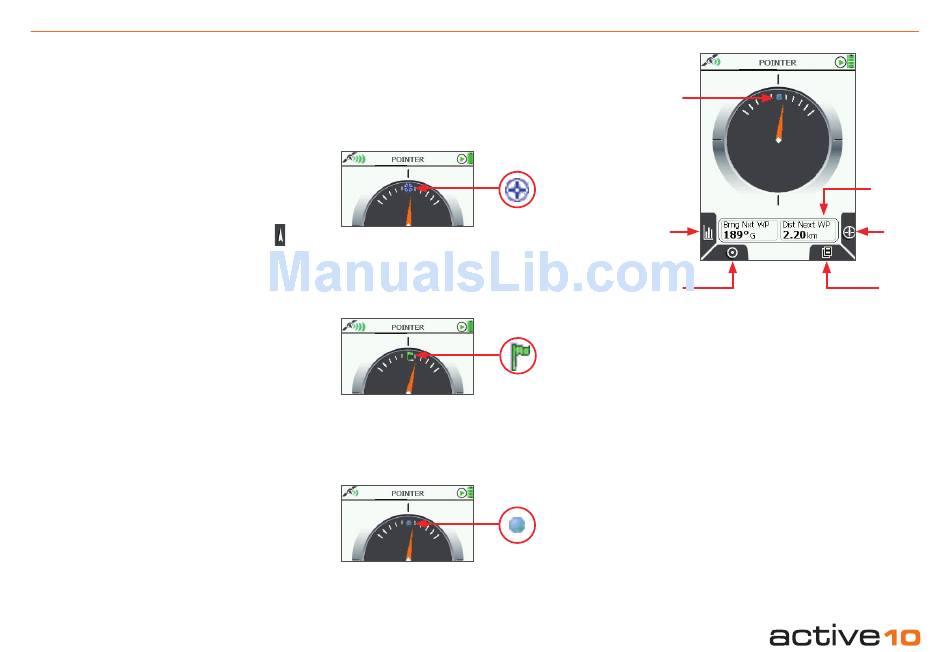

There are 3 types of 'target' to select from
using the Target type
1. Nearest POI/LOI/AOI
Only available once a POI has been entered
(section 12.00).
screen
2. GoTo Point
Only available once a GoTo Point has been
set (section 19.00). A green flag will appear at
the top of the pointer image.
3. Next WayPoint
Only available once a route has been
activated (section 8.00). A blue dot will appear
at the top of the pointer image.
button.
Target
Default icon
Target
type
GPS Map
18
icon
Figure 6.02a
In each target type, the 2-data field overlay
contains information on bearing and distance
to the target.
Note: If you have POIs/LOIs/AOIs/waypoints
set to invisible, the pointer will not show their
location.
2-data field
overlay
Compass
Primary
Screens
