6.01 Primary Screens: MAIN MENU & COMPASS Screens

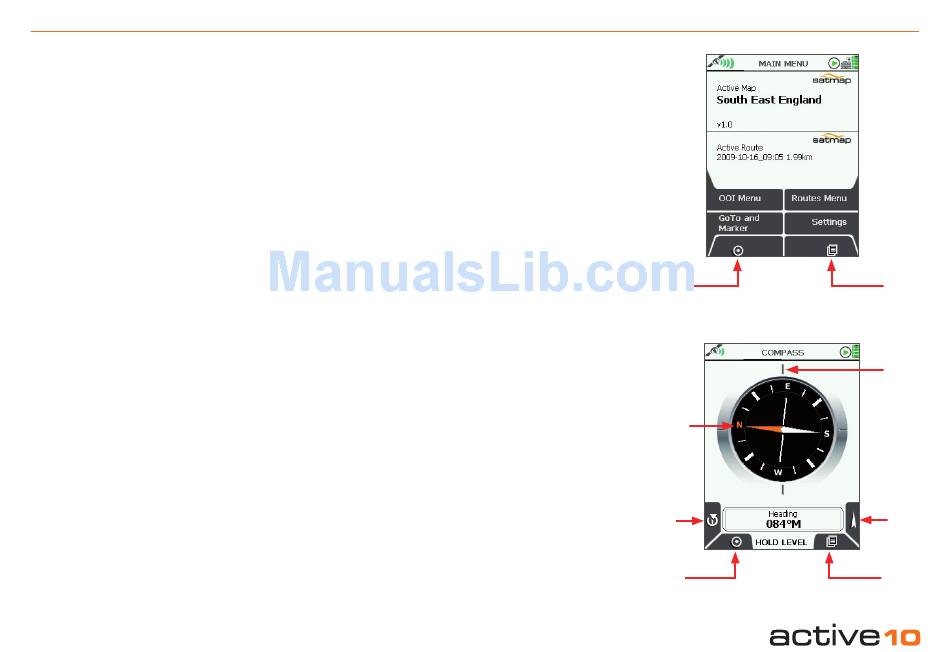

6.01 MAIN MENU Screen

(GPS MAP → MAIN MENU)
The MAIN MENU screen gives access to
some of the Active 10's main functions.
The upper half of the MAIN MENU
shows the title of the Active Map, ie. the
loaded map card. The lower half of the
MENU screen shows the name of the
Route (section 8.00a).
Buttons:
OOI Menu
Go to OOI Menu (section 12.00)
GoTo and Marker
Set GoTo point/Marker either by coordinates
(or postcode: GB only) (sections 19.00)
GPS Map
GPS MAP
Return to (section 5.00)
ROUTES MENU
Go to ROUTES MENU (section 8.00)
Settings
Go to SETTINGS MENU (section 7.00)
Primary Screens
Go to COMPASS screen (section 6.02) and
scroll through primary screens (section 4.00)
© Satmap Systems Ltd

6.02 COMPASS Screen

(GPS MAP → MAIN MENU → COMPASS)
The Active 10 has an electronic compass and
a GPS compass and switches between the
two at a preset speed (section 7.10). Having
screen
both ensures you have the correct bearings
at all times whether you are moving or
MAIN
stationary. It is important that the unit is held
Active
level (like a regular magnetic compass) and is
calibrated correctly (section 7.13).
Buttons:
Calibrate Compass
Calibrate Compass
Go to
GPS Map
Return to GPS MAP
Pointer
Go to POINTER
Primary Screens
Go to TRIP LOG
scroll through primary screens (section 4.00)
(section 7.13)
screen (section 6.02a)
screen (section 6.03) and
Compass
17
Figure 6.01
GPS Map
Orange
tipped
north
indicator
Calibrate
Figure 6.02
GPS Map
Primary
Screens
Bearing
indication
given here
Pointer
Primary
Screens
