PR 30-HVS A12
English
Printed: 10.11.2016 | Doc-Nr: PUB / 5314332 / 000 / 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR 30-HVS A12 and is the answer not in the manual?

Questions and answers

Related Manuals for Hilti PR 30-HVS A12

Summary of Contents for Hilti PR 30-HVS A12

  • Page 1 PR 30-HVS A12 English Printed: 10.11.2016 | Doc-Nr: PUB / 5314332 / 000 / 00...
  • Page 2 Printed: 10.11.2016 | Doc-Nr: PUB / 5314332 / 000 / 00...
  • Page 3 Do not stare into beam. 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
  • Page 4 ▶ Take the influences of the surrounding area into account. Do not use the device where there is a risk of fire or explosion. ▶ Statement in accordance with FCC §15.21: Changes or modifications not expressly approved by Hilti may restrict the user’s authorization to operate the equipment.
  • Page 5 ▶ Use of the telescopic staff in the vicinity of overhead high voltage cables is not permissible. 2.4 Electromagnetic compatibility Although the tool complies with the strict requirements of the applicable directives, Hilti cannot exclude the following possibilities: •...

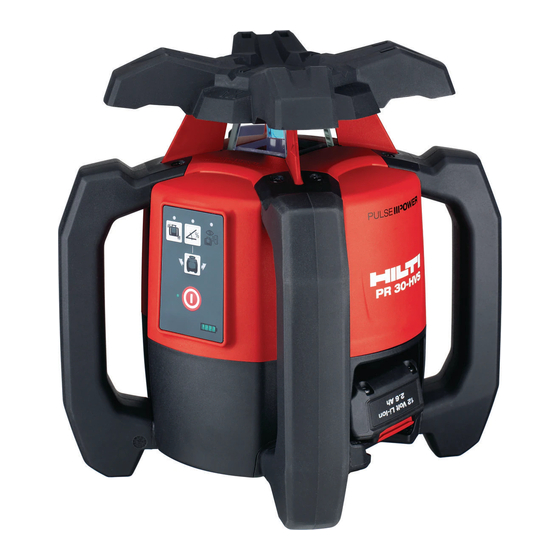

  • Page 6 3 Description 3.1 Overview of the product 3.1.1 PR 30-HVS rotating laser Laser beam (plane of rotation) Li­ion battery & Rotary head Battery charge status display Grip Control panel Battery release button Base plate with 5/8" thread 3.1.2 PR 30-HVS control panel Inclined plane mode button and LED LED arrow for electronic inclination align- ment...
  • Page 7 Examples of its uses are: transferring datum lines and height marks, determining right angles for walls, vertical alignment on reference points and setting out slopes. ▶ Use only the Hilti B 12⁄2.6 Li-Ion battery for this product. ▶ Use only the Hilti C 4⁄12­50 charger for this product.
  • Page 8 Laser receiver / remote control unit Hilti laser receivers digitally indicate the distance between the marking notch on the laser receiver and the position at which the laser beam (laser plane) strikes the detection area on the receiver. The laser beam can also be received over long distances.
  • Page 9 3.1.9 Items supplied PR 30-HVS A12 rotating laser, PRA 30 (03) laser receiver / remote control, 2 batteries (AA cells), PRA 83 laser receiver holder, 2 manufacturer’s certificates, operating instructions. You can find other system products approved for your product at your local Hilti Center or online at: www.hilti.com.
  • Page 10 4 Technical data 4.1 Technical data for the rotating laser PR 30-HVS A12 Receiving range (diameter) PRA 30 (03) 2 m …500 m (6 ft - 10 in …1,640 ft - 10 in) Communication range (PRA 30) 150 m (492 ft) Accuracy at 10 m (under standard ambient conditions in ±0.5 mm...
  • Page 11 The B12 battery has no protection class. Do not expose the battery to rain or wet conditions. In accordance with the Hilti instructions, the battery may be used only with the associated product and must be inserted in the battery compartment for this purpose.
  • Page 12 5.3 Inserting / removing the battery CAUTION Electrical hazard. Dirty contacts may cause a short circuit. ▶ Check that the contacts on the battery and on the tool are free from foreign objects before inserting the battery. CAUTION Risk of injury. If the battery is not fitted correctly it may drop out and fall. ▶...
  • Page 13 Note A wall bracket or tripod may be used as mounting devices. The angle of inclination of the surface on which it stands should not exceed ± 5°. 5.5 Manual horizontal alignment Note The rotating laser is mounted on the PRA 90 automatic tripod. The PRA 30 laser receiver, the rotating laser and the PRA 90 automatic tripod are paired.
  • Page 14 1. Press the button on the rotating laser, on the PRA 30 laser receiver and on the PRA 90 automatic tripod. ◁ The devices are ready for use. 2. Keep the marking notch on the PRA 30 laser receiver at the height that is to be set. The PRA 30 laser receiver should be held steady or secured in place.
  • Page 15 2. Press the button on the rotating laser. ◁ The rotating laser levels itself and then projects a stationary downward-pointing laser beam. 3. Position the rotating laser so that the projected laser beam strikes reference point (A) exactly. Please note: The reference point is not a plumb point! 4.
  • Page 16 5.9 Setting the inclination using the PRA 79 slope adapter Note Depending on the application, the PRA 79 slope adapter can be mounted on a tripod. The angle of inclination of the PRA 79 slope adapter is set to 0°. 1.
  • Page 17 ◁ If no button is pressed within 3 seconds, the rotating laser levels itself to the previously set value. The inclined plane mode LED lights. Note A long press of the button causes the entered value to change rapidly. Note When the angle of inclination is set manually, the rotating laser levels the laser plane once and then fixes it.
  • Page 18 Note If the rotating laser begins the automatic search in the wrong direction, press the button to change the search direction. 5.12 Alignment using electronic inclination alignment (e-targeting) Note Electronic inclination alignment optimizes manual alignment of the rotating laser. The electronic method is more accurate.
  • Page 19 1 and 3 (main axis) or points 2 and 4 (transverse axis) should each be < 2 mm (at 20 m) (0.12" at 66 ft). If the deviation is greater than this, please return the tool to Hilti Service for calibration.
  • Page 20 ◁ When this procedure is carried out carefully, the horizontal distance between the two marked points (B) and (C) should be less than 1.5 mm (at 10 m) (0.06 inch at 33 ft). If the deviation is greater than this, please return the tool to Hilti Service for calibration. 6 Operating the laser receiver 6.1 Inserting the batteries in the laser receiver...
  • Page 21 2. Switch the devices on again. ◁ The devices are paired. The symbol is shown on the laser receiver. 6.3 Pairing the PRA 90 tripod and the PRA 30 laser receiver 1. Press the button on both devices for at least 3 seconds. ◁...
  • Page 22 Note To save the settings, switch the laser receiver off. Overview of the menu Fig. 1: Measuring unit system and units • Please refer to the description of the unit system and how to set the units. Fig. 2: Software version •...
  • Page 23 • Do not operate the cordless tool if signs of damage are found or if parts malfunction. Have the tool repaired by Hilti Service immediately. • After cleaning and maintenance, fit all guards or protective devices and check that they function correctly.
  • Page 24 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 7.2 Care and maintenance...
  • Page 25 ▶ Check the tool and batteries for damage before use after long periods of storage. 9 Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. Trouble or fault Possible cause Action to be taken The tool doesn’t work.
  • Page 26 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
  • Page 27 Printed: 10.11.2016 | Doc-Nr: PUB / 5314332 / 000 / 00...
  • Page 28 Hilti = registered trademark of Hilti Corp., Schaan 20161108 Printed: 10.11.2016 | Doc-Nr: PUB / 5314332 / 000 / 00...
