Summary of Contents for Hilti PR 3-HVSG

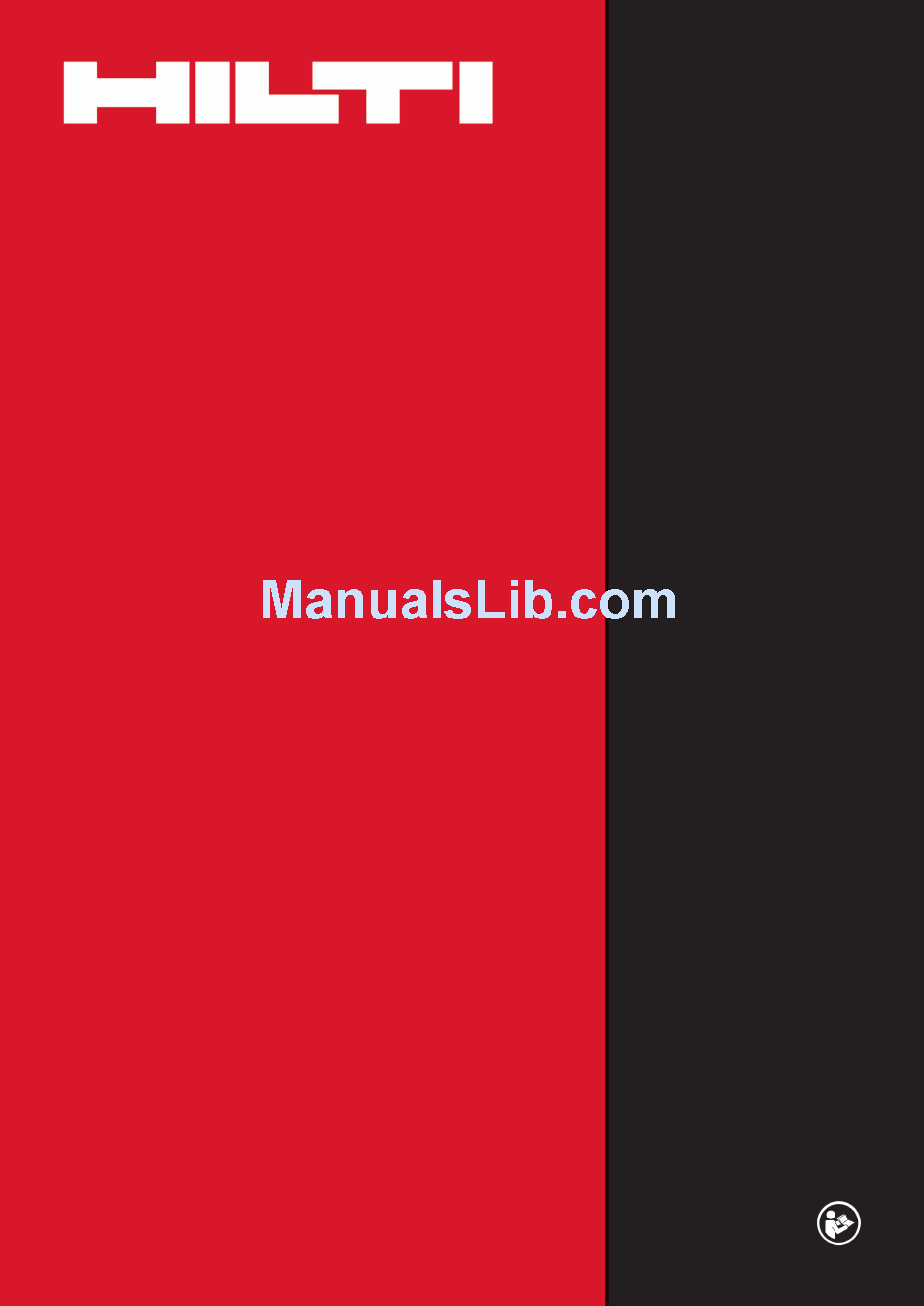

- Page 1 PR 3-HVSG Deutsch English Français Italiano Español Português Nederlands Dansk Svenska Norsk Suomi Polski...
- Page 5 PR 3-HVSG Original-Bedienungsanleitung ........
- Page 6 • Make a note of the designation and serial number printed on the identification plate in the following table. ▶ Always quote this information when you contact a Hilti representative or Hilti Service to enquire about the product. Product information...
- Page 7 ▶ Take the influences of the surrounding area into account. Do not use the tool where there is a risk of fire or explosion. ▶ Statement in accordance with FCC §15.21: Changes or modifications not expressly approved by Hilti may restrict the user’s authorization to operate the equipment.
- Page 8 ▶ Use of the telescopic staff in the vicinity of overhead high voltage cables is not permissible. ▶ Take care to ensure that no other PR 3-HVSG is in use in the area.The IR control system may influence the tool you are using. Check the equipment from time to time.
- Page 9 Examples of its uses are: transferring datum lines and height marks, determining right angles for walls, vertical alignment on reference points and setting out slopes. ▶ Use only the Hilti B 12⁄2.6 Li-Ion battery for this product. ▶ Use only the Hilti C 4⁄1250 charger for this product.
- Page 10 During charging, charge state is indicated by the LEDs on the battery (please refer to the operating instructions for the charger). 3.6 Items supplied PR 3-HVSG rotating laser, PRA 2 remote control, PRA 54 target plate, 2 batteries (size AA), 2 manufacturer’s certificates, operating instructions. Note You can find other system products approved for your product at your local Hilti Center or online at: www.hilti.com.
- Page 11 Accuracy at 10 m (under standard ambient con- ±1 mm ditions in accordance with MILSTD810G) (±0.04 in) Laser class Visible, laser Class 2, 510-530 nm/Po<4.85 mW ≥ 300 ⁄min; EN 60825-1:2007; IEC 60825-1:2007 Operating temperature −10 ℃ … 50 ℃ (14 ℉...
- Page 12 6.4 Inclination For optimum results, check that the PR 3-HVSG is correctly aligned. The best way to do this is by selecting 2 points, each at a distance of 5 m (16 ft), one to the left and one to the right of the tool, but parallel to the tool axis.
- Page 13 1 and 3 (main axis) or, points 2 and 4 (transverse axis), should each be less than 3 mm (at 20 m) (0.12" at 66 ft). If the deviation is greater than this, the tool should be returned to Hilti Service for calibration.
- Page 14 7.5 Hilti Measuring Systems Service Hilti Measuring Systems Service checks the product and, if deviations from the specified accuracy are found, recalibrates it and checks it again to ensure conformity with specifications. The service certificate provides written confirmation of conformity with specifications at the time of the test.
- Page 15 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 16 • This device must accept any interference received, including interference that may cause undesired operation. Note Changes or modifications not expressly approved by Hilti may restrict the user’s authorization to operate the equipment. 12 EC declaration of conformity Manufacturer Hilti Aktiengesellschaft...
- Page 17 Hilti = registered trademark of Hilti Corp., Schaan Pos. 1 | 20150727...
