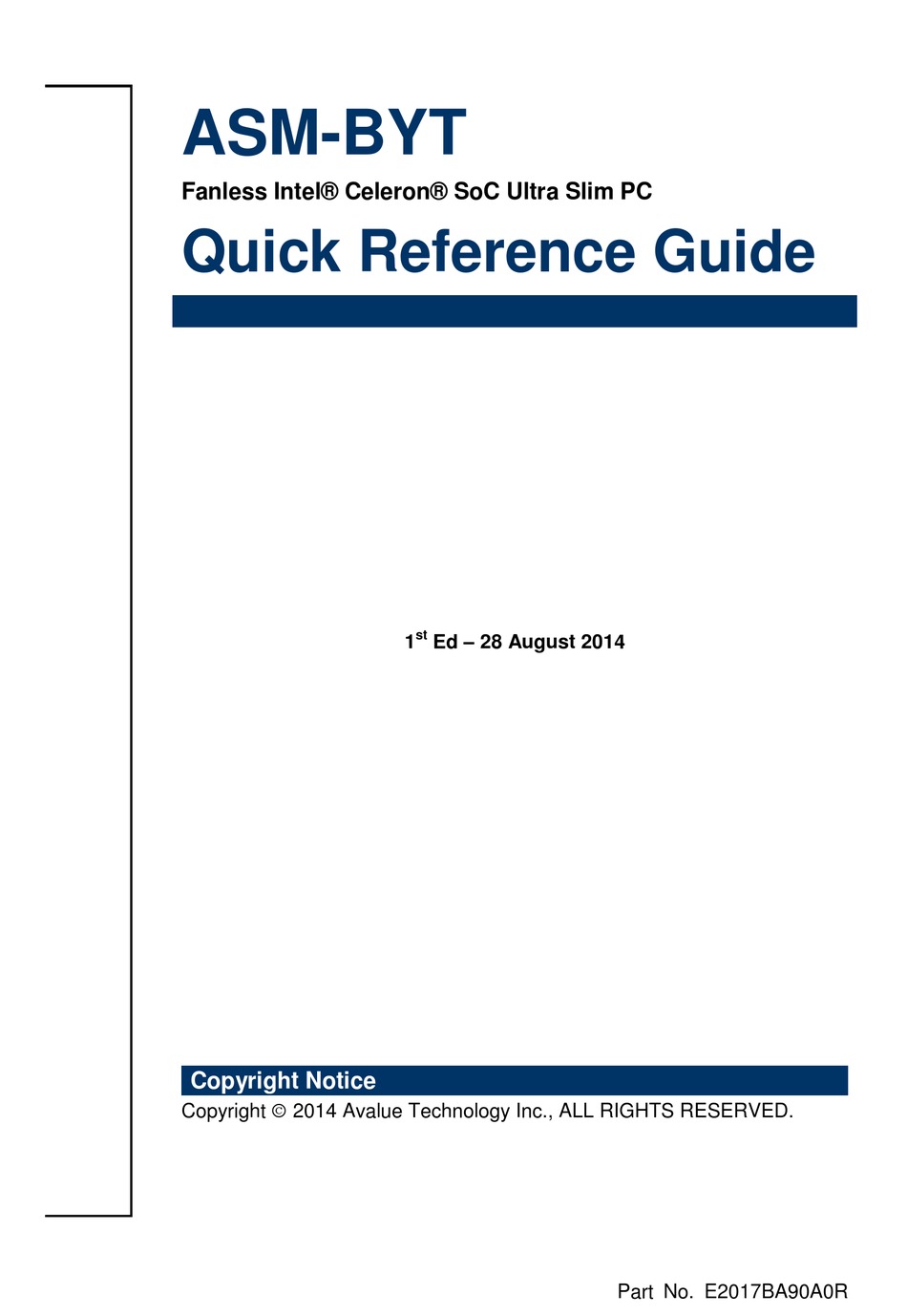

- Page 1 ASM-BYT Fanless Intel® Celeron® SoC Ultra Slim PC Quick Reference Guide Ed – 28 August 2014 Copyright Notice Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017BA90A0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 ASM-BYT Quick Reference Guide...
-
Page 3: Table Of Contents
Hardware Configuration ................... 10 ASM-BYT connector mapping ................11 2.1.1 VGA connector (VGA) ........................ 11 2.1.2 Serial port 1 connector (COM1) ....................11 2.1.3 Serial port 2 connector (COM2) ....................12 Remove the Memory (ASM-BYT) ................ 13 ASM-BYT Quick Reference Guide... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x ASM-BYT Fanless Intel® Celeron® SoC Ultra Slim PC 1 x DVD-ROM contains the followings: ... -
Page 5: System Specifications
Multiple Display VGA Mode: 2560 x 1600 @ 60Hz Resolution HDMI Mode: 1920 x 1200 @ 60Hz Audio HD Codec Realtek ALC892 Supports 5.1-CH Audio Audio Interface Mic-in, Line-in, Line-out Ethernet ASM-BYT Quick Reference Guide... - Page 6 With CF/SSD: 10G, IEC 60068-2-27, Half Sine,11ms Certification CE, FCC Class B Dimension (W x H x 182mm x 257mm x 25mm Weight 1.2kgs Color Silver and Black Fanless Reliability IP Rating IP 30 6 ASM-BYT Quick Reference Guide...
-
Page 7: System Overview
Side & Rear View Connectors Label Function Note COM1 Serial port 1 connector D-sub 9-pin, male Compact Flash card connector CF/DVI/COM2 DVI connector Serial port 2 connector HDD indicator LAN1 RJ-45 Ethernet 1 KB/MS/LAN2 RJ-45 Ethernet connector 2 ASM-BYT Quick Reference Guide... - Page 8 Optional PS/2 System power indicator USB 2.0 connector x 1 USB 3.0 connector x 1 VGA connector DB-15 female connector HDMI HDMI connector DC IN DC Power-in connector Reset button RESET LINE OUT Line-out audio jack 8 ASM-BYT Quick Reference Guide...
-
Page 9: System Dimensions
Quick Reference Guide 1.5 System Dimensions 1.5.1 Front & Top View (Unit: mm) ASM-BYT Quick Reference Guide... -
Page 10: Hardware Configuration
ASM-BYT 2. Hardware Configuration For advanced information, please refer to: 1- EBM-BYT User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 ASM-BYT Quick Reference Guide... -
Page 11: Asm-Byt Connector Mapping
PIN Signal PIN Signal PIN Signal DATA HSYNC VSYNC 2.1.2 Serial port 1 connector (COM1) Signal PIN PIN Signal NDCDA#_485TXN NDSRA# NRXDA_485TXP NRTSA# NTXDA_485RXP NCTSA# NDTRA#_485RXN NRIA# Note: COM1 can be set as RS-422/485 vis BIOS. ASM-BYT Quick Reference Guide 11... -
Page 12: Serial Port 2 Connector (Com2)
ASM-BYT 2.1.3 Serial port 2 connector (COM2) Signal PIN PIN Signal NDCDA#_485TXN NDSRA# NRXDA_485TXP NRTSA# NTXDA_485RXP NCTSA# NDTRA#_485RXN NRIA# Note: COM2 can be set as RS-422-485 vis DIP Switch. 12 ASM-BYT Quick Reference Guide... -
Page 13: Remove The Memory (Asm-Byt)
Quick Reference Guide 2.2 Remove the Memory (ASM-BYT) Step1. Remove 3 screws from the rear side before removing back cover. Step2. Remove 3 screws from the bottom of your system. Step3. Remove the top chassis. ASM-BYT Quick Reference Guide 13... - Page 14 ASM-BYT Step4.1 Remove the memory module. Step4.2 Re-assemble your system back through previous steps to complete the installation. 14 ASM-BYT Quick Reference Guide...
