ASSEMBLY INSTRUCTIONS

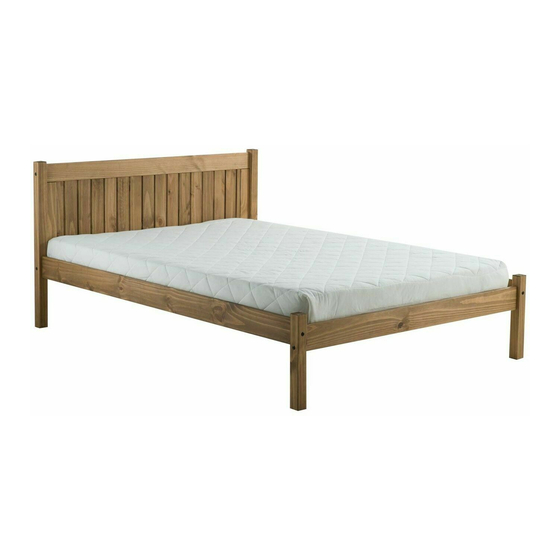

RIO 4' BED
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR
USE YOUR RIO 4' BED FRAME
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
HEALTH & SAFETY:
DO NOT jump on this bed frame
DO NOT use this bed frame if any parts are missing, damaged or worn
DO NOT use this bed frame unless all fixings are secured
Always use on a level, even surface
WARNING: If this bed is placed on a laminated floor you must place some protection under all legs
to stop the bed frame from moving. If this is not adhered to there is no guarantee if the bed frame
collapses
CARE & MAINTENANCE:
Periodically check all screws & fixings to ensure they are secure
DO NOT push the bed frame as this will damage the legs
Always lift the bed with two people to reposition
Keep any sharp objects away from the frame
