CHAPTER 11: IP OUTPUT TAB
11.2

Enabling the IP Output Tab

NOTE: The Ethernet card is supported in slots 2(DigiVu Mini) and 5(DigiVu and DigiVu CD) only.
If the GbE card has just been inserted and the GUI IP Output tab is greyed out, the Ethernet functionality must first be
activated. That is done on the 'Mux' tab; see
can produce Ethernet only or RF only outputs or both simultaneously; features that are also activated on the 'Mux' tab.
11-2 DigiVu

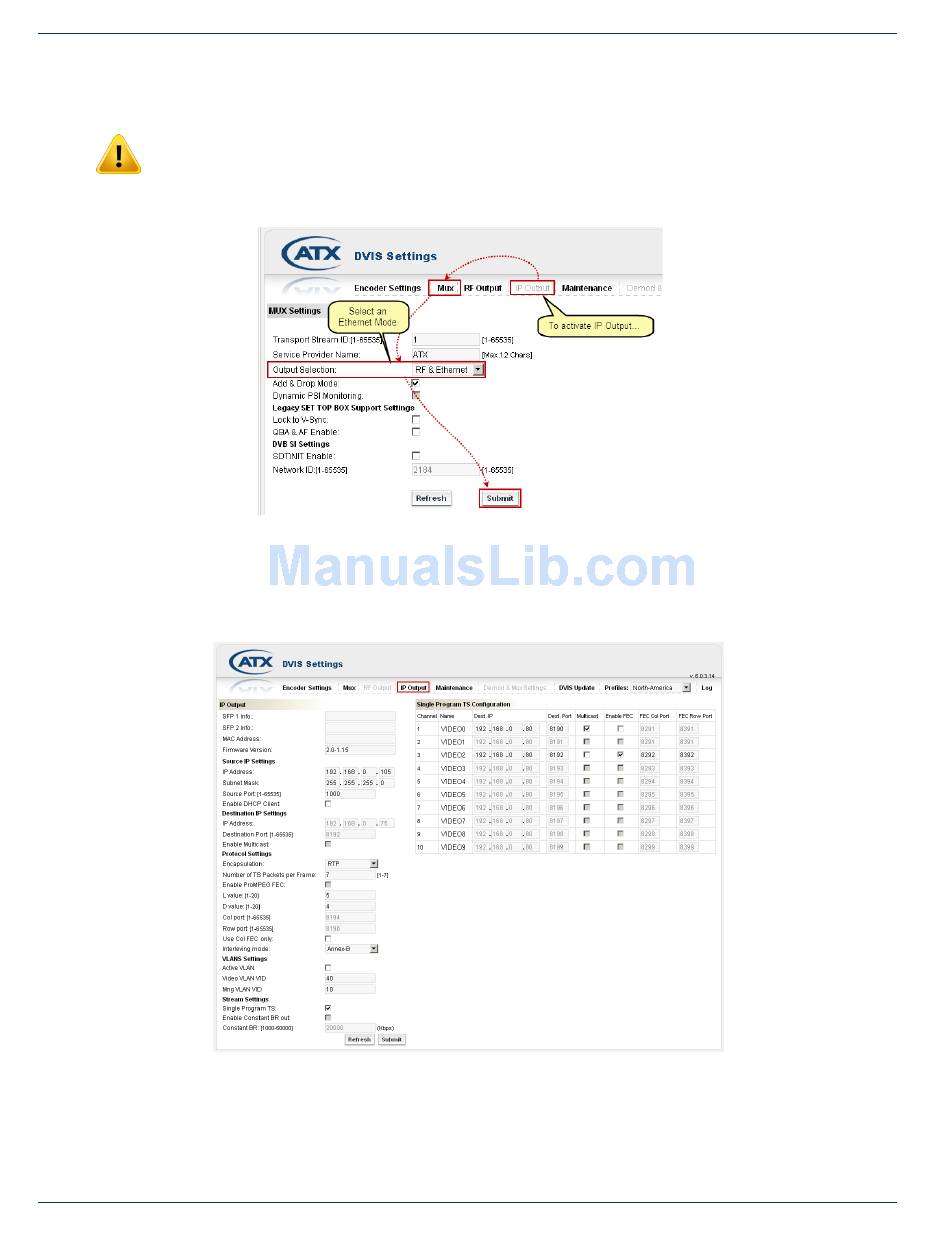

Figure 11-2: Activate the IP Output Tab
"Mux Settings" on page
Figure 11-3: IP Output Tab
Series Multichannel MPEG-2/H.264 Encoder/Multiplexer with QAM &/or IP Output - Installation & Operation Manual
®
12-1. The procedure is shown in Figure 11-2. The DigiVu
