CHAPTER 2: SYSTEM DESCRIPTION
2.7.1 Card Slot Support
NOTE: All cards are hot pluggable so there is no need to interrupt power to change cards.
2.8

Available Encoder Cards

2.8.1 DV1CE & DV1CEM Single Channel SD Card
2.8.2 DV2CE & DV2CEM Dual Channel SD Card
2.8.3 DV1HDA Single Channel HD/SD Card
2-8 DigiVu
DigiVu , DigiVu
®
Card Type
Single Channel HD Encoder
Single Channel SD Encoder
Dual Channel SD Encoder
Demodulator
Gigabit Ethernet
2-Way Audio/Video Splitter

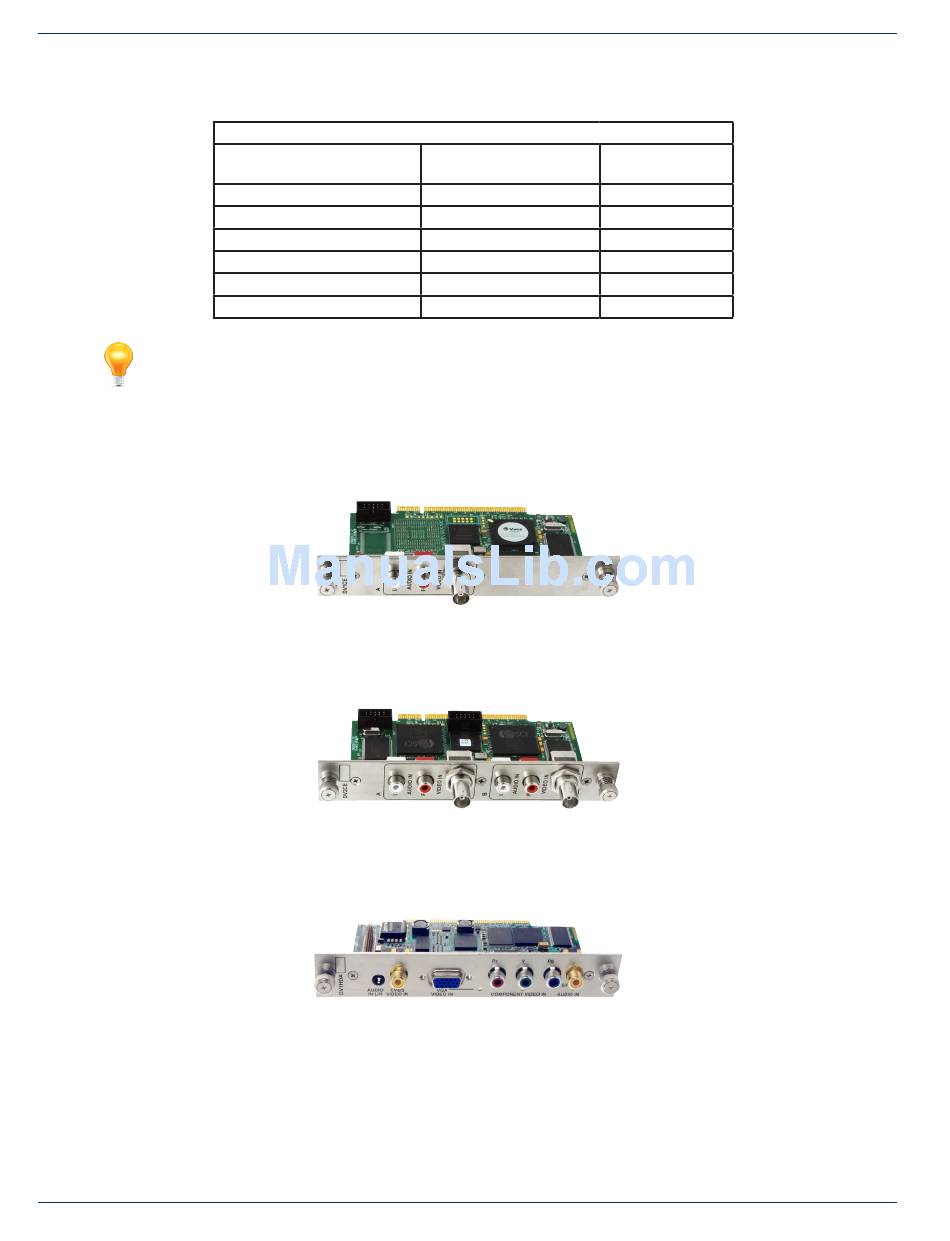

Figure 2-15: Single Channel SD Encoder
Figure 2-16: Dual Channel SD Encoder
Figure 2-17: Single Channel HD/SD Encoder
Series Multichannel MPEG-2/H.264 Encoder/Multiplexer with QAM &/or IP Output - Installation & Operation Manual
®
CD & DigiVu Mini Card Support
® ®
DigiVu & DigiVu CD
Supports in Slots
1, 2, 3, 4, 5
1, 2, 3, 4, 5
1, 2, 3, 4, 5
1, 2, 3, 4, 5
5
1, 2, 3, 4, 5, AUX
DigiVu Mini
Supports in Slots
1, 2
1, 2
1, 2
1, 2
2
1, 2
