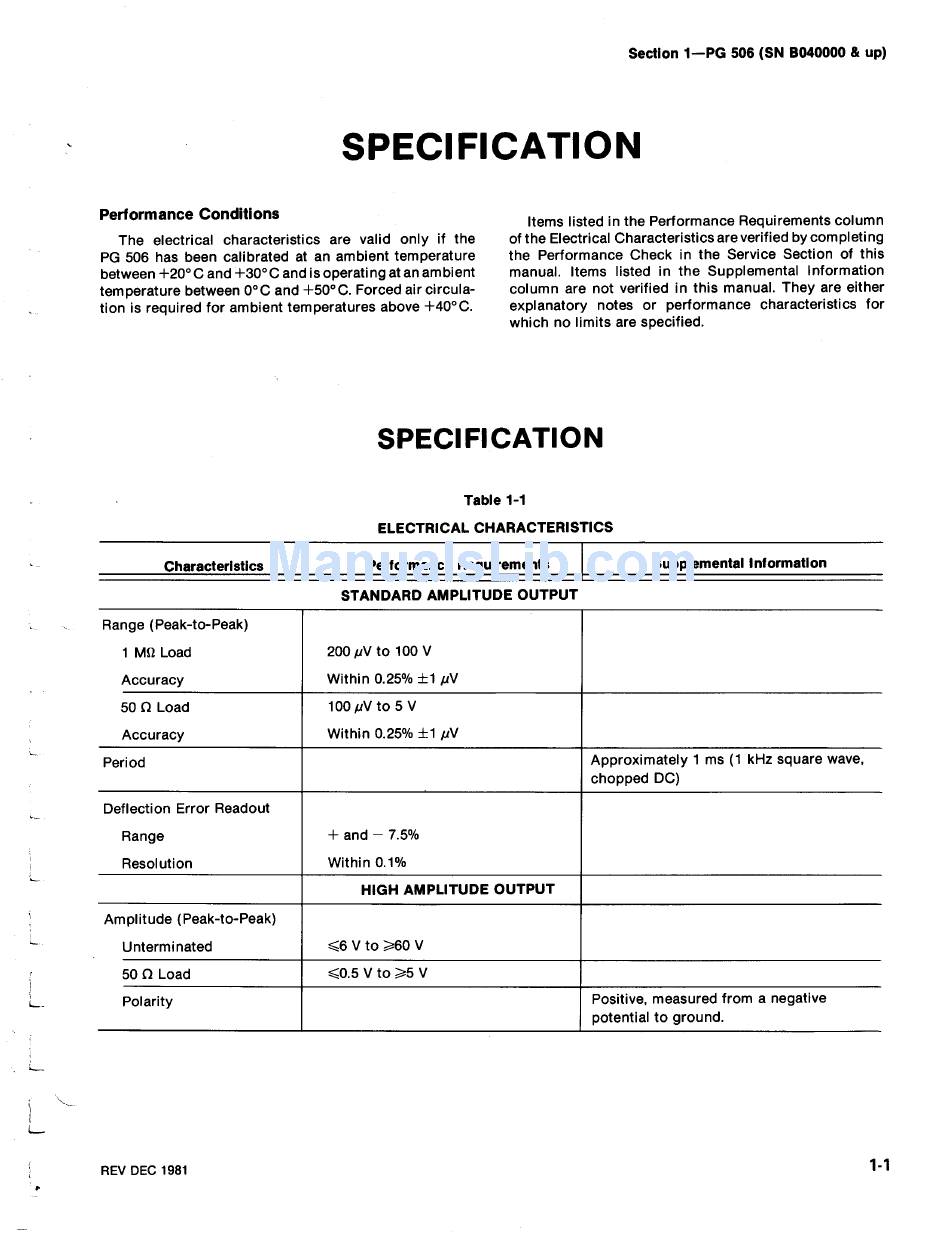

Specification; Electrical Characteristics - Tektronix PG 506 Instruction Manual

Performance Conditions
Items listed in the Performance Requirements column
The electrical characteristics are valid only if the
of the ElectricalCharacteristicsareverifiedbycompleting
PG 506 has been calibrated at an ambient temperature
the Performance Check in the Service Section of this
between+20°Cand+30°C and is operating at an ambient
manual . Items listed in the Supplemental Information
temperature between 0°C and +50°C. Forced air circula-
column are not verified in this manual . They are either
tion is required for ambient temperatures above +40°C.
explanatory notes or performance characteristics for
which no limits are specified.
Characteristics
Performance Requirements
Supplemental Information
Range (Peak-to-Peak)
1 MSl Load
~ 200 ~V to 100 V
Accuracy ~
Within 0.25°/a t1 ~cV
50 S2 Load
I
100 ~V to 5 V
Accuracy
~ Within 0.25% t1 pV
Period
Approximately 1 ms (1 kHz square wave,
chopped DC)
Deflection Error Readout
Range
+ and - 7.5%
Resolution Within 0.1%
HIGH AMPLITUDE OUTPUT
Amplitude (Peak-to-Peak)
Unterminated
I
~6 V to ,60 V
50 !;2 Load
I
~0 .5 V to ~5 V
REV DEC 198 1
SPECIFICATION
SPECI FI CATI O N
Table 1-1
ELECTRICAL CHARACTERISTICS
STANDARD AMPLITUDE OUTPUT
Section 1-PG 506 (SN 8040000 & up)
_ Polarity
Positive, measured from a negative
potential to ground .
