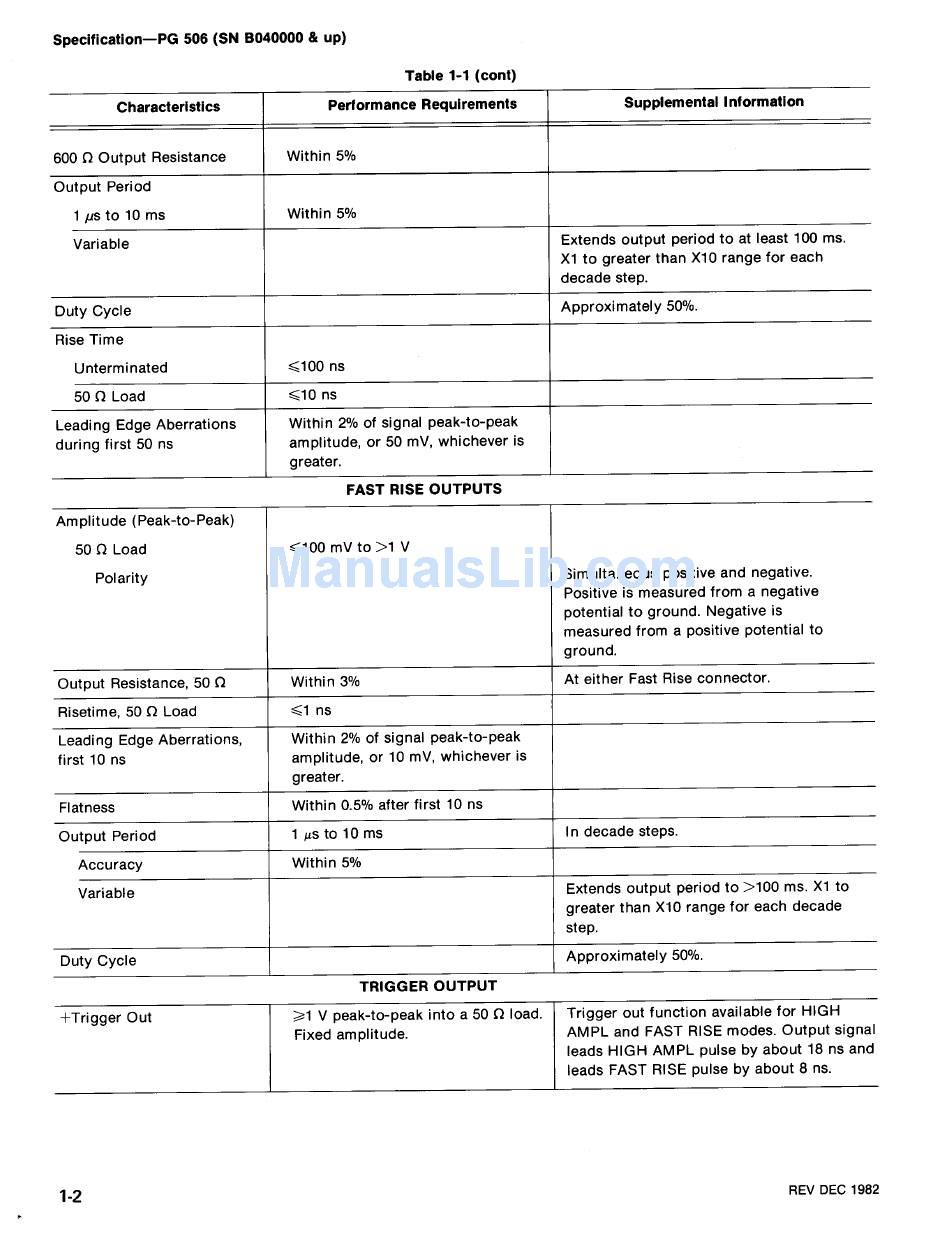

Specification-PG 506 (SN 8040000 & up)
600 S2 Output Resistance ~
Within 5%
Output Period
1 Ns to 10 ms
~ Within 5%
Variable
Extends output period to at least 100 ms .
X1 to greater than X10 range for each
decade step .
Duty Cycle
I
I
Approximately 50%.
Rise Time
Table 1-1 (cont)
Characteristics
Performance Requirements
Supplemental Information
Unterminated
~ 100 ns
50 S2 Load
~
~10 ns
Leading Edge Aberrations
Within 2% of signal peak-to-peak
during first 50 ns
amplitude, or 50 mV, whichever is
greater.
Amplitude (Peak-to-Peak)
50 S2 Load
~
<100 mV to >1 V
FAST RISE OUTPUTS
Polarity
Simultaneous positive and negative .
Positive is measured from a negative
potential to ground . Negative is
measured from a positive potential to
ground .
Output Resistance, 50 f2
I
Within 3%
I
At either Fast Rise connector.
Risetime, 50 S2 Load ~
<1 ns
Leading Edge Aberrations,
Within 2% of signal peak-to-peak
first 10 ns
amplitude, or 10 mV, whichever is
greater.
Flatness
~
Within 0.5% after first 10 ns
Output Period
I
1 ~s to 10 ms
I
In decade steps .
Accuracy ~
Within 5%
Variable
Extends output period to >100 ms . X1 to
greater than X10 range for each decade
step .
Duty Cycle
I
I
Approximately 50%.
+Trigger Out
TRIGGER OUTPUT
,1 V peak-to-peak into a 50 S2 load .
Trigger out function available for HIGH
Fixed amplitude.
AMPL and FAST RISE modes. Output signal
leads HIGH AMPL pulse by about 18 ns and
leads FAST RISE pulse by about 8 ns .
REV DEC 198 2
