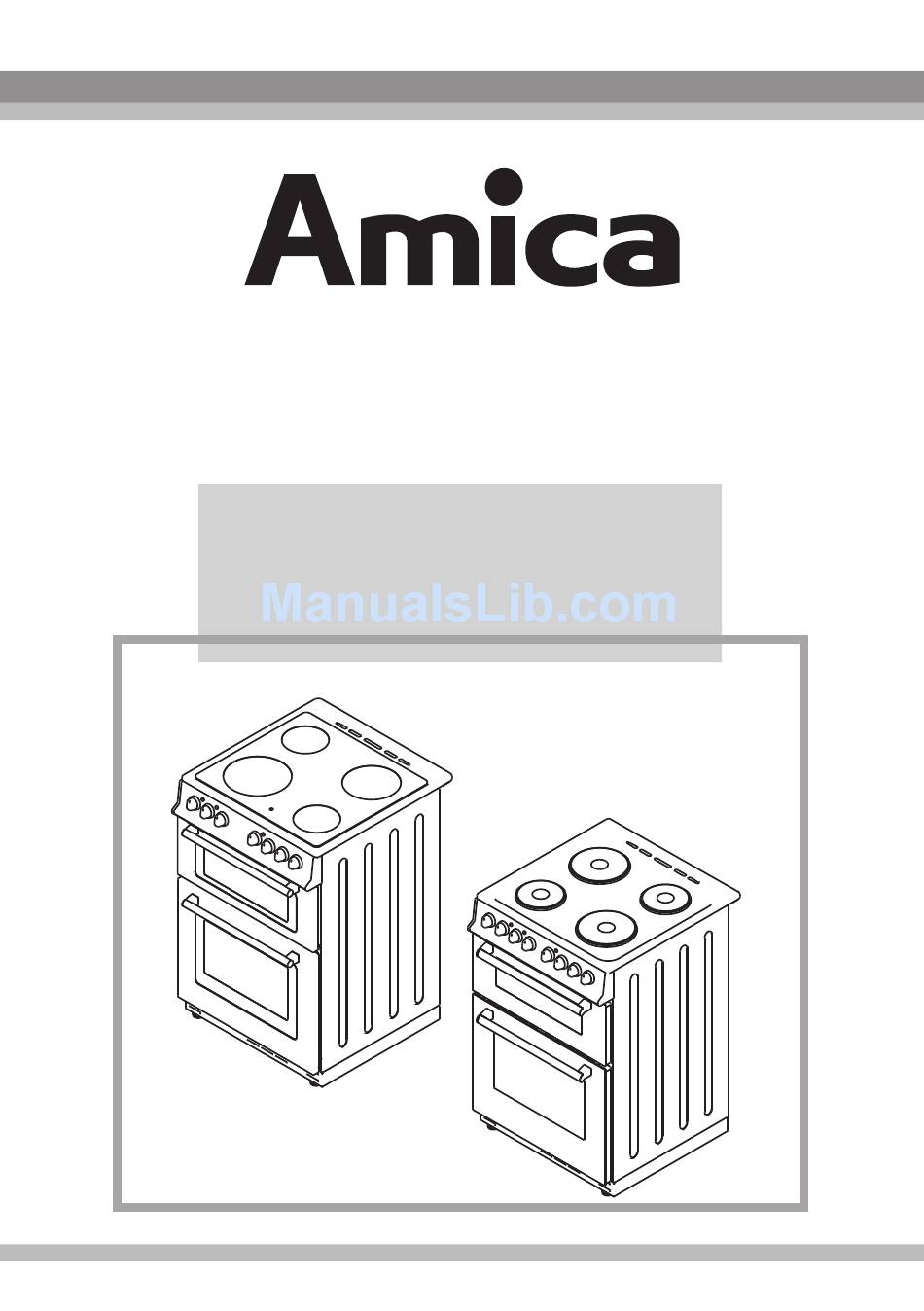

- Page 1 51EETCM (W) 601EEDOTa (W) 51CEDOM (W) 601CEDOTa (W) OPERATING AND INSTALLATION INSTRUCTIONS OF ELECTRIC DOUBLE CAVITY...
- Page 2 Dear Customer, Thank you for purchasing this Cooking Appliance. The safety precautions and recommendations in these instructions are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance. Please keep this booklet in a safe place.
- Page 3 CONTENS: INTRODUCTION OF PRODUCT WARNINGS INSTALLATION AND PREPARATIONS FOR USE USING THE PRODUCT CLEANING AND MAINTENANCE SERVICE AND TRANSPORTATION...
-
Page 4: Part 1: Introduction Of Product
PART 1: INTRODUCTION OF PRODUCT List of Components 1. Cooktop Rack 2 Rack 1 2. Control panel 3. Top oven door 4. Oven door handle 5. Main oven door Rack 5 6. Oven Tray Rack 4 Rack 3 7. Wire Grid Rack 2 8. - Page 5 PART 2: WARNINGS TAKE ALL IMPORTANT SECURITY MEASURES AND READ THE MANUAL COMPLETELY BEFORE USING THE PRODUCT This product has been designed for non-professional, domestic use only. Surely control whether there is any damage after you unpacked the product. If there is any damage;...
- Page 6 Keep children away from the cooker. If a crack is observed on ceramic glass, hob heating elements have to be switched off immediately to prevent electrical shocks. During the use the appliance gets hot. Take special care to prevent touching of heating elements inside oven cavity.
-
Page 7: Part 3: Installation And Preparation For Use
PART 3: INSTALLATION AND PREPARATION FOR USE This modern, functional and practical cooker that is manufactured with the most quality parts and materials will meet your needs in every respect. You must surely read this manual in order not to have any problem in future and to be able to have successful results. -
Page 8: Electric Connection And Safety
3.2 ADJUSTMENT OF LEVELING LEGS The cooker stands on 4 leveling legs. As the leveling legs are adjusted at lower position, it is required to control whether the product is leveled before operating it. This adjustment can be made as turning the leveling leg clockwise, if required. It is possible to raise the product maximum 15mm via the leveling leg. - Page 9 Connection diagram is given below. 3.4 GENERAL WARNING AND MEASURES Your product is manufactured in accordance with the related safety norms. The maintenance and repair works must be made just by the authorized service. The installation and repair works without follwing rules may endanger you. When the cooker is operated, the external and internal surfaces of product become hot.
-
Page 10: Part 4: Using The Product
PART 4: USING THE PRODUCT 4.1. CONTROL PANEL The control panel of the cooker is shown below. 51CEDOM(W) / 51EETCM(W) Mode Mode 601CEDOTa(W) / 601EEDOTa(W) 4.2. USING THE COOKTOP BURNERS The hob part of the appliance is controlled via knob with 7 positions on the control panel. -
Page 11: Using The Oven
WRONG WRONG WRONG CORRECT pot bottom is round pot buttom does not sit well pot buttom is small Figure 9 After using any hob,please make sure that it is switched off. Never touch any heating element, after it si turned off. Because, it keeps the heat for a certain period. - Page 12 Adjustment of Day Hour ''A'' symbol will start to flash after it is connected to the electrical resource. Press (+) and (-) keys at the same time. It is also possible to adjust (to increase or to reduce) the time by pressing to these keys. MODE Figure 18 Alarm /Time Setup...
- Page 13 the ending of cooking period. The cooking period is adjusted as determined above. ''Mode'' key was pressed until ''End'' indicator lamp will flash in order to adjust the ending time. ''+'' and ''-'' keys must be used at the end of En d wished cooking period.
- Page 14 Top and bottom heating function Top heating function If the top oven has an oven light function, it will be always on, when any of function is selected. Grill Function This function is used for grilling. In order to grill, please use the grill pan supplied with your product.
- Page 15 At the end of cooking period, as in all other cooking processes; turn the top oven switch off. Take the cooking tray out and put it onto a safe place. Keep the children away from hot oven during and after cooking, until it is cool completely. Warning: Top oven door must be kept closed during this function.
- Page 16 If the main oven has an oven light function, it will be always on, when any of function is selected. Defrost function Defrost function can be started by placing the frozen food into your oven and turning the main oven function switch to the related sign. This function does not cook the food, just helps to defrost them in a very short time.
- Page 17 Top Heating Function This function is appropriate for frying the upper side of allready cooked food and heating food, instead of cooking. Turn your top oven's switch as it will show the sign of this function and place the tray on the grid. At the end of heating period, turn the top oven switch off.
-
Page 18: Energy Saving
ENERGY SAVING During use of electrical cookers , it is required to use saucepans having flat bases. Choose a cookware of proper size. Using a lid will reduce cooking times. Minimize the amount of liquid or fat to reduce cooking times. When liquid starts boling ,reduce the temperature setting. -
Page 19: Cleaning The Oven
PART 5: CLEANING AND MAINTENANCE OF YOUR OVEN 5.1 GENERAL Before starting to clean your oven, be sure that all control knobs are off and your appliance is cooled off. Before using the cleaning materials control whether they are appropriate and recommended by the manufacturer of your oven. -
Page 20: Cleaning The Ceramic Hob
5.3. CLEANING THE CERAMIC HOB Make sure to unplug the oven before starting to clean it. Before starting cleaning wait for ceramic cooker completely coll down. Be sure that cleaning material does not contain any particles which may cause to scratch glass. Use cream or liquid detergent. - Page 21 Removal of catalitic panel Remove G screws on the each catalitic enamel coated panel.
-
Page 22: Part 6: Service And Transport
PART 6: SERVICE AND TRANSPORT 6.1. CHECK BEFORE CONTACTING TO SERVICE If the oven does not operate : The oven may be plugged off; there has been a blow-out. On models fitted with a timer, time may not be regulated. If the oven does not heat : The heat may be not adjusted with oven’s heater control switch. - Page 23 Service Help Line For the UK: please call 0844 815 8880 For Ireland: please call 0818 46 46 46 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
