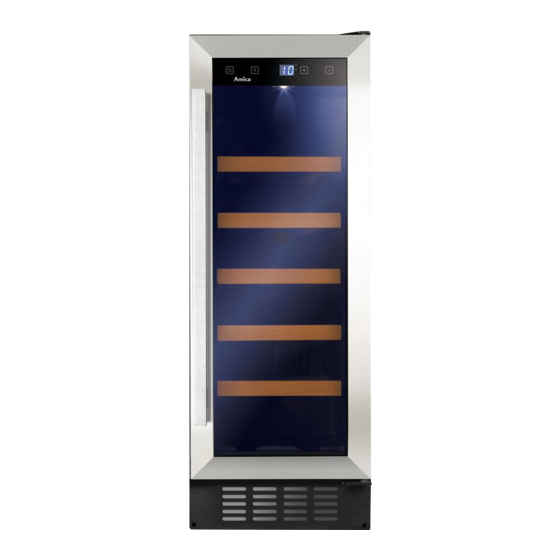

- Page 1 AWC151 AWC301 AWC601 Wine coolers Use and maintenance...
-
Page 2: Table Of Contents
Contents Important information Before first use Use and controls Bottle Storage Care and cleaning Troubleshooting Installing the wine cooler Reversing the door Adjusting the plinth Electrical information How to connect an alternative plug Energy efficiency information 2 | Instruction Manual... - Page 3 Important The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that The CDA Group reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or use in a commercial environment.
-
Page 4: Important Information
Appliance information: Please enter the details on the appliance rating plate below for reference, to assist Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance model Serial number EU Declarations of Conformity: This appliance has been designed, constructed and marketed in compliance with safety requirements of EU Directive 2014/35/EU (Low voltage) and requirements of Directive 2014/30/EU (EMC). - Page 5 • Repairs carried out by unqualified persons may seriously endanger the appliance user • Pursuant to Commission Regulation (EU) 2019/2019, The minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part •...
-
Page 6: Before First Use
Before first use You must allow the appliance to settle for at least twenty four hours prior to switching the power on. It is recommended that you remove all internal and external packaging and clean the interior of the appliance prior to first use. We recommend that you use a solution of bicarbonate of soda and warm water and then thoroughly dry the interior. - Page 7 • Only store wine in sealed containers • Do not overload the cabinet • Only open the door when necessary • Do not cover the shelves with aluminium foil or anything else that will prevent air from circulating around the cabinet •...
-
Page 8: Use And Controls
Use and controls AWC151 & AWC301 Key: Power button Light button "+" button "-" button AWC601 Key: Power button Upper zone “+” button Upper zone “-” button Lower zone “+” button Lower zone “-” button Light button To switch the power on/off •... - Page 9 • To change the temperature display from Fahrenheit to Celsius, or Celsius to Fahrenheit, press and hold the light button for five seconds • To view the set temperature, touch the appropriate “+” or “-” button at any time and the set temperature will flash in the LED display for five seconds •...
- Page 10 Internal Humidity The wine coolers are equipped with a humidity system to maintain optimal humidity within the wine cooler. Fill the humidity reservoir approximately 3/4 full with water. Place the reservoir on the runners on the top shelf as shown in fig.4. Ensure it is located correctly to prevent water spillage.
- Page 11 Silent mode Once the required temperature is reached, the appliance will run without the fan. The wine cooler is factory set to silent mode. To change to dynamic cooling mode, touch and hold the "-" button for approximately five seconds (left hand “-” button on AWC601). The wine cooler will beep five times to confirm dynamic cooling is on.
- Page 12 Door alarm The wine cooler is equipped with an alarm that will sound if the door is left open for more than 60 seconds. To switch off the alarm, press the power button. If the temperature has risen beyond the set temperature, the display will flash until the zone has returned to the required temperature.
-
Page 13: Bottle Storage
Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage temperature should be stated on the food product packaging. AWC151 AWC301 Instruction Manual | 13... - Page 14 AWC601 Climate Range The information about the climate range of the appliance is provided on the rating plate. It indicates at which ambient temperature (that is room temperature in which the appliance is working) is optimal for the operation of the appliance. Climate class Allowable ambient temperature Extended Temperate...
-
Page 15: Care And Cleaning
Care and cleaning IMPORTANT: Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance. Removing the shelves (Applicable to AWC301 & AWC601) • To remove a shelf from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the... - Page 16 Care and cleaning • Once cleaning is complete, reconnect the mains electrical supply • If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation Temperature alarm If the temperature rises or falls outside the set temperature range,...
-
Page 17: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting guide prior to calling Amica Customer Care to prevent unnecessary service calls and potential cost. If the appliance is not working, check • There is power to the appliance •... - Page 18 If the door has been removed, it may not have been correctly refitted • The door seal is dirty • The shelves are not positioned correctly The display shows “E1” or “E2” • The temperature sensor has failed. Please contact Amica Customer Care 18 | Instruction Manual...
-
Page 19: Installing The Wine Cooler
This appliance is intended to be installed in a space between two units. The minimum space required is: AWC151 – 150mm W x 555mm D x 825mm H AWC301 – 300mm W x 580mm D x 825mm H AWC601 – 600mm W x 580mm D x 825mm H... - Page 20 Installing the wine cooler This appliance is designed to fit under worktops between 820 – 890mm in height, using the adjustable plinth plate to ensure that the feet are concealed from view. IMPORTANT: Failure to follow the instructions regarding installation and ventilation may invalidate the warranty supplied with your appliance.
-
Page 21: Reversing The Door
Reversing the door You will need the help of another person, during this process, to lean the wine cooler back and support 1. Remove the rear ventilation trim (3) by removing screws (1) from fig. 8 both sides and sliding the trim out from below. - Page 22 4. Gently lower the door away from the top hinge and place on a padded surface to avoid the risk of damage as shown in fig. 10. fig. 12 5. Remove the upper hinge (9) as shown in fig. 12. 6.
-
Page 23: Adjusting The Plinth
Adjusting the plinth The pre-fitted plinth for this appliance comes with an adjustable lower section that is initially seated behind the upper section. The process for adjusting the plinth trim is simple and is achieved by following the image and steps below. fig. -
Page 24: Electrical Information
Electrical information Warning! This appliance must be earthed. Green and yellow to earth Brown to live 13A Fuse Cord Clamp Blue to Neutral fig. 14 The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, follow the steps below: 1. -
Page 25: How To Connect An Alternative Plug
How to connect an alternative plug If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of safely to avoid possible shock hazard. A suitable alternative plug of at least 13 Amp rating to BS 1363 should be used. -
Page 26: Energy Efficiency Information
16 [lowest temperature] °C and 32 [highest temperature] °C Airborne Acoustic dB(A) Noise Emissions Installation Type Built-under E & O E. All instructions, dimensions and illustrations are provided for guidance only. Amica reserve the right to change specifications without prior notice. 26 | Instruction Manual... - Page 27 Notes Instruction Manual | 27...
- Page 28 Amica The CDA Group Building Harby Road Langar Nottinghamshire NG13 9HY Sales Department Phone: 01949 862010 Amica Customer Care Phone: 01949 862012 Email: customer.care@cda.eu ©2020 CDA Group Ltd...
