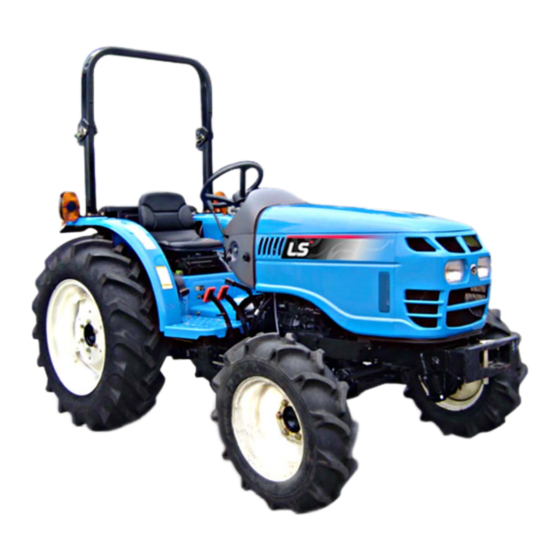

Summary of Contents for LS tractor XG3025

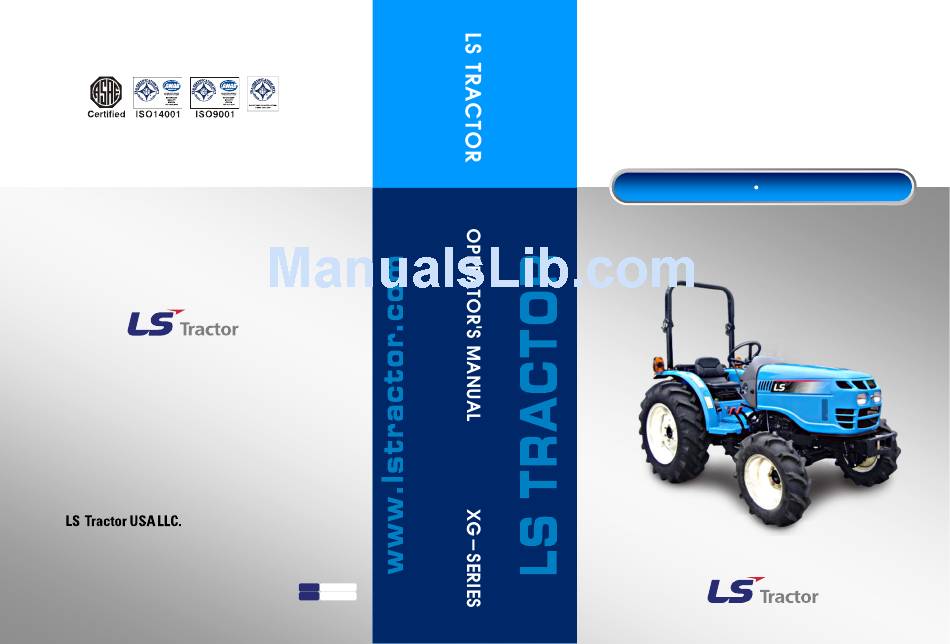

- Page 1 INNOVATIVE TECHNOLOGY PARTNER LS TRACTOR OHSAS 18001 OPERATOR'S MANUAL XG3025 XG3025H PO Box 70, Battleboro, NC 27809 Tel : 252-984-0700 Fax : 252-984-0701 www.lstractor.com P/NO 52120001/00 www.lstractorusa.com DATE 20150000...
- Page 2 FOREWORD Emission Warranty The following warranty applies to the engines that have been certified to the emission regulation of the U.S. Envi- ronmental Protection Agency. Warranty coverage Mitsubishi Heavy Industries, Ltd. warrants to the ultimate purchaser and each subsequent purchaser that the new nonroad engine, including all parts of its emission-control system, meets two conditions:(1) It is designed, built, and equipped so it conforms at the time of sale to the ultimate purchaser with applicable regulation of the U.S.
- Page 3 FOREWORD 3. Sensors. 4. Electronic control units. III. The parts below also included in the evaporative emission gas related components: 1. Fuel Tank. 2. Fuel Cap. 3. Fuel Line. 4. Fuel Line Fittings. 5. Clamps*. 6. Pressure Relief Valves*. 7. Control Valves*. 8.
- Page 4 FOREWORD California Emission Control Warranty Statement: your Warranty Rights and Obligations The following warranty applies to the engines that have been certified the emission regulation of the California Air Resources Board (CARB). The California Air Resources Board (CARB) is pleased to explain the emission control system warranty on you 2013 or later engine.
- Page 5 FOREWORD Warranty coverage (a) The warranty period shall begin on the date the engine or equipment is delivered to an ultimate purchaser.The use of alternate fuels shall not void the warranties on any engine certified to use such fuel. (b) Mitsubishi Heavy Industries, Ltd. of each off-road compression-ignition engine shall warrants to the ultimate pur- chaser and each subsequent purchaser of the engine registered in the state of California that the engine is: (1) Designed, built and equipped so as to conform with all applicable regulations adopted by the Air Resources Board pursuant to its authority in Chapters 1 and 2,Part 5,Division 26 of the Health and Safety Code;and.
- Page 6 FOREWORD (C) Selective catalyst reduction.
- Page 7 FOREWORD hardware. (D) Pulleys, belts and idlers. (E) Emission control information labels (F) Any other part with the primary purpose of reducing emissions or that can increase emissions during fail- ure without significantly degrading engine performance (e) Mitsubishi Heavy Industries, Ltd. shall furnish with each new engine written instructions for the maintenance and use of the engine by the owner.
-
Page 8: Table Of Contents
Contents 1. General Notices for Safety 1-1. Before using the tractor · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1-1 1-2. - Page 9 Contents 3. Instruments and Controls 3-1. Instrument panel and Front controls (1) Instrument panel · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3-1 (2) Key switch·...
- Page 10 Contents 4. Operation and Work 4-1. Engine start and stop (1) Engine start · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-1 (2) Start in cold weather ·...
- Page 11 Contents (5) Engine coolant · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5-11 (6) Air cleaner (Dry type) ·...
-
Page 12: General Notices For Safety
1. General Notices for Safety 1-1. Before using the tractor ※ Have to read and understand this operator’s manual carefully and always refer to information and prescriptions outlined in this manual to prevent all potential health and safety risks. ◆ General information for intended use Your tractor is designed and manufactured to pull, to carry, to supply the power a variety of mounted or towed equipment for agriculture. - Page 13 Never remove or modify or change the driver’s protection device or safety device arbitrary. You must take the necessary precautions to always be aware of the possible presence of bystanders, certainly when maneuvering in confined areas. Keep people away from the tractor during work.
- Page 14 ◆ Product Identification Your tractor has a exclusive chassis number and engine number marked with product serial number tag to identify the product. (See Fig.1-1) In case of requesting service or parts from your dealer, dealer will need chassis serial number, engine serial number, TM number and also running hours displayed on the instrument panel.
-
Page 15: Safety Precautions (Read This For Safety Before Using)
1-2. Safety Precautions - read this for safety before using. (1) Notices before using the tractor For Safety Instruction : Before using the tractor, read this Operator's Manual carefully and Read Operator’s understand the instructions fully for the safety Manual. prevention and right usage of the tractor and then use the tractor safely according to the instructions. - Page 16 Fuel, Oil, Filter, Air cleaner, Battery, Belt, Cable, Grease, Pedals such as clutch and brake pedal, Tire air pressure, Wheel bolts, Toe-in, Electrical wirings, other items related to safety. Genuine Parts : When replacing parts, you must use “Genuine Parts” of LS tractor. Contact your authorized local dealer.
- Page 17 Protective Structures : For the operator’s safety, various protective structures, i.e. Bonnet (Hood), Fan cover, PTO safety cover, PTO shaft protection cap, Roll-bar or another Roll-over Protective Structure, etc are attached on the tractor. If these structures are modified or removed by user arbitrarily, it may cause serious accident.
-
Page 18: Notices When Starting Engine
(2) Notices when starting Engine Check each part with reference of “5. Lubrication and Maintenance” in this manual. If necessary, repair or replace it immediately. Especially, check if safety protection structures or covers are attached originally and the bolts and nuts are tightened well. Before starting, check again if there are other workers or children around the tractor and implements and keep a safe distance. -
Page 19: Notices While Operating/Using The Tractor
(3) Notices while operating/using the tractor Ventilation Warning ▶It is very dangerous to work in a closed area. The poisonous exhaust gas may cause serious damage to the human body. If you should work in this area, make sure to ventilate well and put on the protective mask. - Page 20 Obey the traffic rules while driving on public roads. Do not exceed the local legal speed limit. Use a beacon or slow moving vehicle (SMV) to indicate that the vehicle is slow moving. If you can not drive the tractor due to a failure, move the tractor to a safe place and install troubled vehicle (safety tripod).
-
Page 21: Notices When Connecting Implement
(4) Notices when connecting Implement Attach or detach the implement on wide and level ground. Do not use the tractor in combination with equipment arbitrary, without having consulted the specific operator’s manual provided with the equipment. You have to stay clear from the three-point linkage when controlling it. -
Page 22: Notices When Towing The Tractor
(5) Notices when towing the tractor If your tractor needs to be towed for a short distance, use the hitch (or drawbar) or front towing hook. Do not connect to other structures such as rear axle, ROPS, front axle, steering components for towing. -
Page 23: Notices When Servicing The Tractor After Work
(7) Notices when servicing the tractor after work The check and maintenance must be performed after stopping the engine and cooling down the engine sufficiently. DO NOT pour water into the radiator or engine when the engine is hot. The engine or radiator may crack. -
Page 24: Notices When Handling Diesel Fuel
Do not attempt to remove or unfasten the air conditioning components arbitrary. There is a possible to be severely frostbitten or injured by escaping refrigerant. Contact your authorized local dealer to work air conditioning systems. (if fitted) Before servicing the tractor, attach a “DO NOT OPERATE”... -
Page 25: Notices When Leaving The Tractor
(9) Notices when leaving the tractor Stop the tractor on level ground. Place the transmission gear in neutral and put PTO switch to OFF position. Lower the mounted implements on the ground. Apply the parking brake. Stop the engine and remove the ignition key. Before you leave the operator’s station, wait for engine and all moving parts to stop. -
Page 26: Long-Term Storage
1-3. Long-term storage (1) Preparation for storage ※ Wash the tractor cleanly and follow the procedure as below. Apply grease or lubricant oil or spray paint to the non-painted metal to avoid corrosion. Keep the tractor in a covered, dry and well-ventilated place. -
Page 27: Check & Maintenance During Storage
▶ When restarting engine at the end of long-term storage, follow the instructions of Warning the “Preparation for Reuse” as below. (2) Check & Maintenance during storage Apply grease or lubricant oil to non-painted metal to avoid corrosion. Check the leakage of fuel, oil and coolant. If necessary, repair the damaged part. Check if the tire air pressure is normal. -
Page 28: Notices For "Use & Disposal" Related To The Environment
1-4. Notices for ”Use & Disposal” related to the environment Soil, air and water are essential elements for human life. To contribute to environment preservation of the Earth, we are trying to minimize the environment pollution necessitated by general business activity such as product design, manufacturing, distribution, etc. Several substances and products derived from chemical and petrochemical products are major portion of environment pollution and must be disposed of according to environment laws or related regulations, and common sense. -
Page 29: Symbols
1-5. Symbols The followings show the symbols and its meaning used for the tractor. Refer to operator’s Gear Neutral Low speed Manual. Caution! Forward/Rearward High speed Engine speed Battery charging Forward control (throttle) Engine speed Fuel level Backward control (throttle) Turn signal Fuel filter 4WD connection... -
Page 30: Safety Decals
1-6. Safety Decals (1) Handling and Maintenance of Safety Decals For intended use and personal safety of the operator, the safety decals (labels) are attached to the parts related with safety operation. Before operating or maintenance of the tractor, check the position and read the instructions carefully. If you find “Read Operator’s Manual”... - Page 31 1. Location : On top of the Fuel Cap - Ultra low sulfur diesel fuel only. - Do not smoke while refueling and keep any type of flame away. - Part No. : 40241059 2. Location : On the left-hand side of the operator’s platform, at the front of the platform.
- Page 32 6. Location : On top of the left-hand fender - TO PREVENT DEATH OR SERIOUS INJURY; - Keep Roll-over Protective Structure fully upright and locked. - Do not operate vehicle without ROPS locking pins in position. - When ROPS must be lowered: •...
- Page 33 9. Location : On top of the left-hand fender ① CAUTION - PTO selector & lever must be in OFF position to start engine. - Do not operate on hard surfaces with 4WD engaged. ② WARNING - TO PREVENT SERIOUS INJURY OR DEATH; •...
- Page 34 10. Location : On the left-hand side of the ROPS frame. - TO PREVENT SERIOUS INJURY OR DEATH; • Never operate a tractor without a certified ROPS. • Always fasten seat belt when operating tractor with ROPS in upright position. •...
-
Page 35: The Name Of Each Part
2. Instruction for Safe Operation (1) The name of each part ① Roll-Bar type Safety frame (Roll bar) Fender Fuel tank Driver’s seat Steering wheel Instrument panel Hood (Bonnet) Tire Sub step Headlights Bumper (optional) Front weight (optional) 2 - 1... -
Page 36: Boarding And Exiting The Tractor
2-1. Boarding and Exiting the tractor (1) Boarding the tractor Grab handle ① Roll-Bar type Whenever possible, use the left-hand side step for boarding. When boarding the tractor, use the sub-step, grab handle and steering wheel on the left fender. Sub step Do not jump up/down for your safety. -
Page 37: Seat Adjustment
(3) Seat adjustment Before operating the tractor, adjust the position of driver’s seat according to body size and length. Seat F/R adjustment lever 1) After sitting on driver’s seat, lift the seat F/R adjustment lever up to release the lock. 2) Move the driver’s seat forward or backward according to driver’s body length. -
Page 38: Exiting The Tractor
(5) Exiting the tractor Whenever possible, use the left-hand side step Grab handle for boarding/exiting. When exiting the tractor, use the sub-step, grab handle and steering wheel on the left fender. Do not jump up/down for your safety. Sub step 2 - 4... -
Page 39: Safety Device
2-2. Safety Device (1) Hood (Bonnet) Hood is a protection device to prevent an Hood (Bonnet) unintended access to the rotating parts around engine; cooling fan, fan belt and rotating shaft and pulley. Do not remove and modify the hood. (2) Fender Fender is a protection device to prevent an Fender... -
Page 40: Roll-Over Protective Structure (Rops) (Optional)
(4) Roll-Over Protective Structure (ROPS) (optional) ① Safety frame (Fixed Roll-bar) Safety frame (Fixed Roll-bar) DO NOT remove the safety frame arbitrary. This structure will reduce the risk of serious injury or death. DO NOT modify or repair the safety frame. The welding, bending, drilling, grinding, or cutting of any part of the safety frame, it can weaken the structure. - Page 41 ② Safety frame (Foldable Roll-bar) DO NOT remove the safety frame arbitrary. This Safety frame structure will reduce the risk of serious injury or (Roll-bar) death. DO NOT modify or repair the safety frame. The welding, bending, drilling, grinding, or cutting of any part of the safety frame, it can weaken the structure.
-
Page 42: Instruments And Controls
3. Instruments and Controls 3-1. Instrument panel and Front controls Important to owner, read carefully Mechanical type Instrument panel Shuttle lever Light switch Throttle lever Turn signal light switch Key switch PTO switch Brake pedals Parking brake lever Clutch pedal Throttle pedal 3 - 1... - Page 43 HST type Instrument panel Light switch Throttle lever Key switch Turn signal light switch Cruise control lever PTO switch HST forward pedal Parking brake lever HST reverse pedal Brake pedals 3 - 2...
-
Page 44: Instrument Panel
(1) Instrument panel Turn signal indicator (Left / Right) Hour meter PTO operation indicator Fuel level gauge Cold start aid indicator Battery charging indicator 10 Parking brake indicator High beam indicator 11 One side brake indicator (Not used) Engine coolant temperature gauge 12 Engine oil pressure indicator Tachometer Turn signal indicator (Left / Right) - Page 45 Cold start aid indicator When turning start-key switch to “Preheat” position, this indicator shall be ON. When turning start-key switch to “Start” position, this indicator shall be ON as well. High beam indicator When turning the light switch to HIGH BEAM, the high beam of the front head light and this indicator shall be ON at the same time.
- Page 46 10 Parking brake indicator This indicator shall be ON when pressing brake pedal. 11 One side brake indicator (Not used) This indicator is not used. 12 Engine oil pressure indicator This indicator shall be ON when turning the key switch to ON position, and shall be OFF after starting engine.
-
Page 47: Key Switch
(2) Key switch “Preheat” – Engine glow (Cold start aid) Preheat “OFF” - power off (engine stop) “ON” - power on & automatic glow Start “Start” - engine start Key switch ▶ Because the safety switch for start is engaged, start the tractor after pressing clutch pedal. -
Page 48: Horn Switch (If Fitted)
(5) Horn switch (if fitted) Press the upper side of the switch for sounding off the horn. Horn switch (6) Hazard warning light switch This is used to warn other drivers to pay attention to emergency status. ① ② This function is integrated to the light switch for USA market. -
Page 49: Pto Switch (Independent Pto)
(7) PTO switch (Independent PTO) The engine starts only when PTO switch is placed in OFF position for safety. After starting engine, you must comply with the following instruction about the PTO operation. 1. Check the safety around the implement. 2. -
Page 50: Throttle Pedal (Mechanical)
(8) Shuttle lever (Mechanical synchro-shuttle) Forward This is used to select Forward or Reverse. Forward : Push the lever forward. Reverse : Pull the lever backward. Reverse Before reversing the tractor, lower the engine rpm and check the safety behind the tractor. Shuttle lever ▶... -
Page 51: Clutch Pedal (Mechanical)
(11) Clutch pedal (Mechanical) This is used to engage or disengage the main transmission clutch for starting engine and shifting transmission gear. Depress the clutch pedal quickly and fully, and release it slowly. Even if depressing clutch pedal, PTO shaft can not be stopped. -
Page 52: Parking Brake Lever
(13) Parking brake lever Parking brake lever Connect brake pedals each other with brake Release connection plate. Push down the parking brake lever while pressing the brake pedals and check that serrated part is engaged to left brake pedal. Release the brake pedals slowly to check Park slippage of the tractor. -
Page 53: Cruise Control Lever (Hst Type)
(15) Cruise control lever (HST Type) Cruise control lever For cruise drive, push down the cruise control lever with pressing the HST forward pedal. And Release HST forward then, the HST pedal shall be fixed at that pedal position and the driving speed of the tractor shall be maintained constantly. -
Page 54: Left / Right-Hand Controls
3-2. Left / Right-hand controls Important to owner, read carefully Mechanical type Middle PTO Main gear shift lever lever (if fitted) (See page 3-19) (See page 3-20) Range gear shift lever (See page 3-19) 4WD lever Differential lock pedal HST type Middle PTO lever (if fitted) (See page 3-19) - Page 55 (1) Main gear shift lever (Mechanical) Four speed gear shift is available. Mechanical Main gear shift lever Main gear shift lever can be shifted with just depressing clutch pedal without stopping tractor. ▶Operate main gear shift lever by correct H pattern. If operated Notice diagonally, it may cause a failure.
- Page 56 (3) Work light switch (if fitted) There is a switch to turn on the rear work light. Operate the switch in the right figure. ▶When driving on the road at night, do not let the rear work light stay ON. It may Caution cause a disturbance to the driver of the following car.
- Page 57 (5) Four wheel drive lever (4WD) This lever is used to engage/disengage the four wheel drive (4WD). Before operating the 4WD lever, press the clutch Four wheel pedal and stop the tractor completely. drive lever Pull the 4WD lever upward for engaging 4WD. 4WD is very effective in the following cases.
-
Page 58: Hydraulic System
3-3. Hydraulic system (1) Safety precautions Hydraulic oil leaking under pressure can penetrate the skin and cause infection or other injury. To prevent personal injury, comply with as below. -. Relieve all pressure before disconnecting hydraulic lines. -. Before applying pressure, make sure all connections are tight and components are in good condition. -
Page 59: Steering System
(2) Steering system As the steering system of your tractor has a hydraulic pump, valve and etc., it provides you more convenience to operate the steering wheel. Notices when using the steering system. 1. If there is too much of a load in front loader bucket, it could be difficult to operate the steering wheel. In this case, reduce the size of the load. -
Page 60: Hydraulic Lift Control
(3) Hydraulic lift Control (Mechanical Hydraulic Lift, MHL) The hydraulic lift system is operated by the position control lever. Joystick lever(if fitted) Remote control lever (if fitted) Position control lever Down speed control lever ① Position control This mode sets the position of implements freely by position control lever operation. -
Page 61: Remote Control Lever And Quick Coupler (If Fitted)
② Down speed control knob Turn the knob to the clockwise to lower the implement slowly and to the counter-clockwise to rise speed faster. If turning it clockwise to the end, the implement is fixed and even if lowering down the position control lever, the implement does not let down. -
Page 62: Joystick Lever (If Fitted)
(4) Joystick lever (if fitted) Remote joystick lever helps to operate front-end Joystick lever loader comfortably. Joystick can be operated at 4 directions as shown in the right figure. If you move joystick diagonally, boom and bucket may be operated at the same time. In this case, less loaded cylinder may be moved first. -
Page 63: Hydraulic System Diagram
(5) Hydraulic System Diagram Mechanical type 1. Hydraulic oil filter 6. Hydraulic lift pump 11. Hydraulic lift cylinder 2. Steering pump 7. Front outlet valve or 12. Safety valve Front loader valve (optional) 3. Steering unit 13. Oil tank (Transmission) 8. - Page 64 1. Hydraulic filter 7. Oil cooler 12. Hydraulic lift control valve 2. Steering pump 8. HST unit 13. Down speed control valve 3. Steering unit 9. Hydraulic lift pump 14. Safety valve 4. Steering cylinder 10. Front outlet valve or 15.
-
Page 65: Operation And Work
4. Operation and Work 4-1. Engine start and stop ▶Check each part before starting the engine. ▶Check if there is some other people around before starting. Caution ▶Place all the levers and switches in NEUTRAL or OFF position. (1) Engine start Mechanical type 1. - Page 66 ▶Check each part before starting the engine. ▶Check if there is some other people around before starting. Caution ▶Place all the levers and switches in NEUTRAL or OFF position. HST type 1. Sit in driver’s 2. Place the range gear shift lever 3.
-
Page 67: Start In Cold Weather
▶Only start engine outdoors or in a well ventilated place, as the engine exhaust Warning fumes may cause sickness or death. ▶To avoid an explosion, never use starting fluid to start engine. ▶Start engine only from the driver’s seat with placing all the transmission gear levers in NEUTRAL ▶DO NOT start engine by shorting across the terminals of the starter motor. -
Page 68: Engine Stop
(3) Engine Stop Pull the throttle lever backward to reduce the Throttle lever engine speed and place the key switch on “OFF” position to stop the engine. Key switch ▶ To stop the engine after finishing heavy work, run engine for 5 minutes in low idle Notice rpm. -
Page 69: How To Drive And Stop
4-2. How to drive and stop (1) How to drive Mechanical type Main gear shift lever 1. Pull position control lever backward to lift the implement after starting engine. Position control lever 2. Press clutch pedal fully and place all the transmission gear levers (main, range, shuttle lever) on the suitable position. - Page 70 HST type 1. Pull position control lever back to lift the implement up after starting engine. Position control lever 2. Set the engine speed more than 1500 rev/min. Range gear shift lever 3. Place the range gear shift lever to the suitable position.
-
Page 71: Changing Speed
(2) Changing speed Mechanical type Depress the clutch pedal fully and operate all the shift lever correctly. Before operating all the transmission gear levers including main gear shift lever, HAVE TO STOP the tractor completely. Clutch pedal HST type Just pressing the HST forward/reverse pedal makes it possible to travel forward or in reverse. -
Page 72: Emergency Stop
(3) Emergency Stop Mechanical type 1. Press the clutch pedal and brake pedals at Throttle lever the same time to stop the tractor. Turn off the Key switch key switch. Parking brake lever 2. DO NOT release clutch pedal until all moving parts have been stopped. -
Page 73: Stopping Tractor
(4) Stopping tractor Mechanical type Throttle lever 1. Press clutch and brake pedals. Place all the transmission gear levers in neutral and PTO Key switch switch to OFF and release the clutch pedal. Parking brake lever 2. Lower implements to the ground and turn PTO switch key switch to OFF position. -
Page 74: Driving Tractor On The Road
(5) Driving tractor on the road When facing downhill, DO NOT place the gear lever in NEUTRAL position. When driving the tractor on a unpaved road by attaching an implement to 3-point linkage, place the gear lever to low speed and DO NOT lift the implement up to the highest position. When the tractor bumps an obstacle, it may cause the jolting of the implement and the failure of hydraulic system. -
Page 75: Parking
(6) Parking Stop the tractor on a level surface, not a slope. Disengage PTO and place all the transmission shift levers in NEUTRAL position. Lower the mounted implements on the ground. Apply parking brake. Stop engine and remove ignition key. Before you leave the operator’s station, wait for engine and all moving parts to stop. -
Page 76: How To Handle New Tractor
4-3. How to handle new tractor (1) Check points ※ For new tractor, the following must be checked once again even though there was sufficient quality management, inspection, regulating of each part in the factory. Appearance check - Is there any damage while transporting? Engine cooling system check - Is there anti-freeze solution in the radiator? And any leakage? -
Page 77: Attaching Implement
4-4. Attaching Implement (1) 3-point linkage ⑥ ⑤ ⑦ ① Lift rod (LH) ② Stabilizer ④ ③ Lower link ④ Lift rod (RH) ⑤ Upper link ① ② ⑥ Lift rod pin ⑦ Upper link pin ③ When attaching the implement, comply with the followings. 1. - Page 78 ① Upper link installation and ⑥ adjustment ④ Select the suitable attaching hole(2) depending on the implement. ③ ⑤ Adjust the length of the upper link by turning the sleeve(4) after releasing the locking nut (3). ② Fasten the locking nut (3). Adjustment range : 400~750mm (15.7~29.5 in) Upper link ▶...
- Page 79 ④ Reference of Implement installation part (MAX) (MIN) (MAX) (MIN) 19.3 44.5 22.4 CAT1 (0.74) (0.75) (1.73) (2.99) (2.71) (1.75) (0.86) (0.88) (1.38) (1.53) (0.47) (26.8) Unit : mm(inch) 4 - 15...
- Page 80 ⑤ Handling of the 3-point linkage ⑥ ⑤ ⑦ ① Lift rod (LH) ② Stabilizer ④ ③ Lower link ④ Lift rod (RH) ⑤ Upper link ① ② ⑥ Lift rod pin ⑦ Upper link pin ③ When driving without attached implement, comply with the followings. 1.
-
Page 81: Power Take-Off (Pto) Shaft
(2) Power take-off (PTO) shaft ① Safety precautions When PTO shaft is rotating, NEVER APPROACH the shaft. Check if PTO shield is attached correctly. If the shield is removed or damaged, replace it with a new one. Suitable Clothes & Protect Entanglement : When checking or attaching implement to the PTO shaft, wear tight fitting clothes and safety equipment instead of loose or long clothes. - Page 82 ③ Specification and Dimension of the middle PTO shaft (optional) MID PTO 1 speed gear (15T) PTO / Engine speed 2000 / 2545 rpm Rotation direction Counter clockwise (When looking at PTO shaft end) Module : DP 16/32 Number of Teeth : 15T Shaft dimension (Unit : inch) (0.94 in.)
-
Page 83: Hitch And Drawbar (Optional)
(3) Hitch and Drawbar (optional) When attaching towing equipments, use the hitch or drawbar. DO NOT use the 3-point linkage or other parts. If so, the tractor could be overturned. Insert the hitch pin and snap pin correctly after attaching/detaching equipment. Hitch pin DO NOT exceed maximum permissible vertical and horizontal load as below. -
Page 84: 7-Pole Connector (Optional)
(4) 7-Pole connector (optional) The one of the standard 7-pole trailer connectors is provided and is mounted at the rear of the tractor. The connections of the 7-pole connector (viewed from the rear of the tractor) are as follows; ASAE Version Pin No. -
Page 85: Technically Maximum Permissible Mass
(5) Technically maximum permissible mass When working with front loader or rear heavy loaded attachments installed to the 3-point linkage, install ballast weights on the counter-part axle to maintain the front and rear weight balance of the tractor. If not, front or rear axle can be strained by the overloaded weight. When working with the front loader, place the attached rear weight to the highest position and turn the down speed control knob to the “lock”... -
Page 86: Tires And Load Capacity
(6) Tires and Load capacity Axle No. Standard tire air pressure Load capacity (x2) Maximum mass(es) Tires (kg/cm2) (kg) (kg) 7-14 4PR 1.8 (180 KPa, 26 psi) 740 (1786 lb) 2495kg (5500 lb) 11.2-24 8PR 2.4 (240 KPa, 35 psi) 2470 (4894 lb) 7-16 4PR 1.8 (180 KPa, 26 psi) -
Page 87: Adjusting Wheel Tracks And Tire Replacement
(7) Adjusting Wheel tracks and tire replacement ① Front wheel The rim and disk assembly of the front wheel is not adjustable type. See next page for the details. ② Rear wheel When altering rear wheel track, check the radial FENDER and lateral clearance between rear tire and tractor chassis as below. - Page 88 ① Front wheel track – 7-14 4PR with rim & disk (W5x14) Unit : mm (inch) 1115(43.9 in.) (Standard track) 1207(47.5 in.) 4 - 24...
- Page 89 ② Rear wheel track - 11.2-24 8PR with rim & disk (W10x24) Unit : mm (inch) 1167(46.0 in.) 1215(47.9 in.) 1215(47.9 in.) 1091 (43.0 in.) (Standard track) 1321(52.0 in.) 1139(44.9 in.) 4 - 25...
-
Page 90: Using Front-End Loader (Optional)
(8) Using Front-end loader (optional) ① Safety precautions Multi-functional joystick lever provides you more convenient operation for front-end loader. Joystick lever When operating the tractor with front-end loader, the center of gravity of the tractor may be higher, and the stability of the vehicle may be worse than unattached vehicle. - Page 91 ② Attaching points for Front-end loader When attaching the front-end loader, refer to the drawings as below. 4 - 27...
-
Page 92: Adjusting Steering Angle
(9) Adjusting Steering Angle ① 4WD models If the front wheel track is altered or front tires are replaced with bigger ones than current specifications, or in case that a front equipment is attached, the steering angle must be checked and/ or adjusted as required. - Page 93 DO NOT attach bigger implements than this specification. For other implements, contact your authorized local dealer. Implements Specification XG3025 / XG3025H Trailer Max vertical load See section 4-4-(3) in this manual (with 4-wheel) Trailer Max vertical load...
-
Page 94: Driving Speed
4-5. Driving speed The driving speed of tractor or the revolution speed of PTO depends on the work, tire and ground condition. For safety, operate the tractor at suitable speed. Table of driving speed (unit : km/h / (mile/h)) Mechanical Type Front tire : 7-14 4PR, Rear tire : 11.2-24 8PR Range gear... -
Page 95: Lubrication And Maintenance
5. Lubrication and Maintenance 5-1. Access for maintenance ① Opening Hood For safety, the hood must be closed and correctly latched before operating the tractor. The hood is hinged at the rear and a gas cylinder is attached to provide easy access to the engine for check and maintenance. -
Page 96: Maintenance Chart
5-2. Maintenance chart Periodic maintenance not only extends the service life of the tractor but also serves to ensure safe operation. The maintenance chart shows the standard service intervals. If you notice any abnormal symptoms, make sure to carry out the inspection and maintenance work, regardless of recommended service intervals in this maintenance chart. Appropriate service intervals vary depending on the usage and operating conditions. - Page 97 Check period (hr) Checking Parts Page No. Daily 2-year ▲ Fuel tank ▲ ● Fuel filter 5-22 ▲ ★ ● Engine oil 5-6, 5-8, 5-18 ★ ● Engine oil filter 5-6, 5-18 ▲ ● Engine coolant 5-11, 5-24 ▲ ■ Radiator screen 5-12, 5-16 ▲...
- Page 98 Periodic maintenance not only extends the service life of the tractor but also serves to ensure safe operation. The maintenance chart shows the standard service intervals. If you notice any abnormal symptoms, make sure to carry out the inspection and maintenance work, regardless of recommended service intervals in this maintenance chart. Appropriate service intervals vary depending on the usage and operating conditions.
- Page 99 Check period (hr) Checking Parts Page No. Daily 2-year ▲ Fuel tank ▲ ● Fuel filter 5-22 ▲ ★ ● Engine oil 5-6, 5-8, 5-18 ★ ● Engine oil filter 5-6, 5-18 ▲ ● Engine coolant 5-11, 5-24 ▲ ■ Radiator screen 5-12, 5-16 ▲...
-
Page 100: Lubricants And Capacity
5-3. Lubricants and Capacity Recommended Lubricants Capacity International Standard products Engine coolant Soft water (50%) + 4.9 L ASTM D5216 (Radiator) (1.3 U.S.gals.) Anti-freeze (50%) Ultra low sulfur 28 L Fuel ASTM D975 No.2 (7.4 U.S.gals.) diesel fuel KIXX DL Engine oil 4.2 L API CF-4 or CG-4... -
Page 101: First 50 Hour Check
5-4. First 50 hour check After using first 50 hours, contact your authorized local dealer for maintenance if possible. - Replace engine oil & engine oil filter. (⇒ Refer to Every 300 hour check.) - Replace hydraulic oil filter. (⇒ Refer to Every 300 hour check.) - Check transmission / rear axle / hydraulics oil level. -
Page 102: Check Before Starting (Daily Check)
5-5. Check before starting (Daily check) Check the following check points before using to avoid a failure. Damage of Headlights, Wheel bolts and Amount of Operation Brake, Clutch Turn signal lights, tightening of engine coolant operation of Indicators Horn etc. each part Condition of air Tire air pressure... -
Page 103: Fuel Tank
(2) Fuel tank ① Using Diesel fuel Use Ultra low sulfur diesel, below 15 ppm. - ASTM D975-08a Grade 2 - EN590 : 2009 Diesel fuel Drum - BS2869 : 2006 Class A2 Impurities - You can use the Bio diesel fuel up to 7% (EN590 2009, ASTM D975) If contaminants like water or dusts are mixed in the fuel, it may cause a severe damage to the... -
Page 104: Turn Signal Lights, Lights And Horn
(4) Turn signal lights, Lights and Horn Check the operation status of light, turn signal lights, horn etc. Light switch Turn signal light switch Horn switch (if fitted) If the light is OFF suddenly when operating the switch, check the problems as followings. 1. -
Page 105: Engine Coolant
(5) Engine coolant See section 5-12-(1), Replacement of engine coolant” in this manual. (6) Air cleaner (Dry type) Primary element ① Cleaning filter element Safety filter Remove the cover and pull the primary element element straight out, ensuring the safety filter element remains in place. -
Page 106: Cleaning Of Radiator And Radiator Screen
(7) Cleaning of Radiator and Radiator screen Remove dust or dry grass stuck to the radiator or radiator screen daily. Loosen the screw and pull radiator screen 스크류 outside. When cleaning the radiator with water, let water flow from the fan side. Radiator screen ▶... -
Page 107: Tightening State Of Bolts And Nuts Of Each Part
(9) Tightening state of bolts and nuts of each part Check if the bolts or nuts of each part are loosened. necessary, tighten it again as referring to the following table. Especially, check the bolts and nuts of the tires before starting engine, if necessary, tighten them. ※... -
Page 108: Adjustment Of Brake Pedal Play
(11) Adjustment of Brake pedal play Check the distance of brake pedal play (A). Brake pedals Normal distance : 50~60mm. (2.0~2.4 in.) If the pedal play distance is over 60mm (2.4 in.), adjust it as below. 1. Loosen the locking nut and turn brake rod to adjust. -
Page 109: Adjusting Hst Control Linkage (Hst Type)
(12) Adjusting HST control linkage (HST type) Run engine and place the range gear shift lever in lowest range. Check if the HST tractor stops by taking the foot off from the pedal while driving. If the tractor does not stop, stop the tractor immediately by using the brake pedal. -
Page 110: Every 50 Hour Check
5-6. Every 50 hour check (1) Lubricating grease nipple Grease nipple ① 4WD Model Steering cylinder pins (4WD model) Front axle pivot (4WD model) Thread or sliding parts on 3-point linkage. Grease nipple Grease nipple Top link Lift-rod Stabilizer (2) Cleaning of Radiator and Radiator screen See section 5-6-(7) in this manual. -
Page 111: Checking Transmission Oil
(3) Checking Transmission oil Stop the tractor on level surface and apply the parking brake and lower implements to the High ground. Clean around oil filling inlet and pull the gauge straight out. <Oil gauge > If oil level is between low and high mark of oil gauge, it means proper amount. -
Page 112: Every 250 Hour Check
5-7. Every 250 hour check (1) Replacing Engine oil and Filter ① Drain Engine oil Run engine for a few minutes to warm oil. Park the tractor on a level surface. Remove both LH and RH drain plugs of oil pan and drain the oil completely. -
Page 113: Replacing Hydraulic Oil Filter
(2) Replacing Hydraulic Oil Filter Park tractor on level surface and apply parking brake and lower implements and stop the engine. Carefully clean around the filter and set a clean container under the filter. Coat clean hydraulic oil on the packing of new filter and check the packing is placed well in the Open Close... -
Page 114: Tension Adjustment Of Engine Belt
(3) Tension adjustment of Engine belt If the tension of fan belt exceeds the standard Adjusting plate value, loosen the bolt and adjust the tension. Bolt - Belt tension : crank shaft pulley ~ alternator pulley - Normal : approx. 10~12mm (0.4~0.5 in) Alternator (if pressed by 98N (22 lb.f)) Cooling water... -
Page 115: Every 500 Hour Check
5-8. Every 500 hour check (1) Changing Front axle oil (4WD) Stop tractor on a level surface and apply parking Oil filling inlet & Oil gauge brake. Clean around oil filling inlet and drain plugs. Remove both LH and RH drain plugs and oil gauge to drain oil completely. -
Page 116: Replacing Fuel Filter Cartridge
(3) Replacing Fuel filter cartridge 1. Stop engine and apply parking brake. Set container under the fuel filter. Fuel tank Prepare the plug to block the fuel hoses. (Return) 2. Disconnect hose-A first, and plug the hose. Bolt 3. Disconnect hose-B and C with the same method. 4. -
Page 117: Adjusting Engine Valve Clearance
(5) Adjusting Engine valve clearance Ask your authorized local dealer to check the valve clearance. Normal : 0.25mm (0.0098 in) Valve clearance If the gap is large, valves makes a loud tapping noise and if the gap is too small, it is hard to compress by which the engine output falls down or burns a valve. -
Page 118: Every 2-Year Check
5-9. Every 2-year check (1) Replacing Engine coolant After cooling down the engine enough, open the Radiator cap radiator cap slowly. Set a clean container under radiator drainage cock. Warning ▶When opening the radiator cap, be careful of the escaping hot water or steam. - Page 119 ※ Anti-freeze The amount of anti-freeze in the engine coolant must be determined on the ambient temperature. If the amount of anti-freeze in the coolant is low, the coolant can be frozen and the engine and radiator may be damaged. Mix the water and anti-freeze with 40%~60% according to operating condition as below table and fill radiator and engine the mixture after checking the volume and capacity.
-
Page 120: General Maintenance (When Required)
5-10. General maintenance (When required) (1) Air-bleeding from Fuel system The air in the fuel may cause weak injection or the failure of engine start or stop. To prevent such failure, bleed the air from fuel system. Fuel injection pipes Fuel injection nozzle Fuel tank... - Page 121 ② Air-bleeding from Fuel Injection Air-bleed bolt pump 1. Turn key switch to “ON” position. 2. Loosen the Air-bleed bolt. 3. After clean fuel without bubble comes out from the Air-bleed bolt, turn key switch to “OFF” position. And tighten the Air-bleed bolt again. Tightening torque : 8 N.m (5.9 lb-ft) Notice ▶...
-
Page 122: Fuse & Main Fuse
(2) Fuse & Main fuse ① Fuse check and replacement Fuse box for chassis How to change the fuse 1. Remove the cover of fuse box. 2. Check each fuse and remove the damaged fuse. 3. Change with new one same as damaged one. Chassis fuse box is installed inside front console in the right figure. - Page 123 ② Main fuse (SLOW BLOW FUSE) check and replacement Main fuse is attached to the wiring of right side of the engine. If main fuse is damaged, remove it from the wiring and replace with a genuine part. Main fuse As main fuse is a device to protect the electric system and wiring, if damaged, check if there is trouble in the electric system.
-
Page 124: Battery Handling And Notices
▶ Charge the battery in an area with good ventilation and DO NOT charge a frozen battery. ▶ Replace it with LS tractor genuine products or the battery with the same capacity. 5 - 30... - Page 125 ▶Replaced old battery must be disposed of in a suitable manner, according to the national legislation or local regulations. Contact your authorized local dealer. ▶ Replace it with LS tractor genuine products or the battery with the same capacity. 5 - 31...
- Page 126 ③ Notices in charging the battery using separate charger As the battery fluid makes poisonous gas which can explode during the charging, comply with the following instructions. 1. Detach battery from the tractor. 2. Wait until the battery is warmed to room temperature.
- Page 127 ④ How to use jumper cables If the battery which is attached to the tractor is discharged and needs to connect a auxiliary battery, ※ follow the instructions as below. ⓐ Connecting Jumper cables Check the followings before connecting the Red cable cables.
-
Page 128: Troubleshooting
5-11. Troubleshooting ▶ To avoid injury due to sudden start, apply parking brake and place the Warning transmission gear in NEUTRAL position before checking and repairing. System Faults Possible causes Solutions ▲ Start safety switch is not ▲ Depress the clutch pedal contacted fully ▲... - Page 129 System Faults Possible causes Solutions ▲ Lack of engine coolant ▲ Supplement ▲ Bad fan belt tension or broken ▲ Adjust belt tension or Engine overheat replace ▲ Dirt attached to the radiator ▲ Clean ▲ Air cleaner clogged ▲ Wash element The color of exhausted ▲...
- Page 130 System Faults Possible causes Solutions ▲ Wrong brake pedal play ▲ Adjust Brake does not work or ▲ Lining worn or broken ▲ Replace only one side works. ▲ Left/right pedal play is different ▲ Adjust Brake After brake pedal ▲...
- Page 131 System Faults Possible causes Solutions ▲ Repair or replace ▲ Pump worn or part damaged ▲ Repair or replace ▲ Steering unit damaged or worn Hydraulic steering ▲ Repair ▲ Oil leakage by steering system does not work. cylinder piston seal damaged or worn ▲...
- Page 132 System Faults Possible causes Solutions ▲ Check and repair ▲ Low pressure relief set is too ▲ High pressure relief set is too ▲ Check and repair When operating HST ▲ HST charger valve fault pedal, tractor dose not ▲ Replace start.
- Page 133 System Faults Possible causes Solutions ▲ Abnormal wiring ▲ Check the tightening state of terminals and ground ▲ Alternator failure ▲ Repair or replace Battery does not charge ▲ Lack of fan belt tension or ▲ Adjust fan belt tension or broken replace ▲...
-
Page 134: Dimension And Specification
6. Dimension and Specification ① 4WD model (Unit : mm) * Front tires 7-14 4PR / Rear tires : 11.2-24 8PR 6 - 1... - Page 135 XG3025 XG3025H 1104kg 1120kg Roll-bar type (2434 lb) (2469 lb) Cabin type Bumper 21kg (46.3 lb) (optional) Front weight 20kg (44.1 lb) x 4 (optional) Model S3L2-W461GT Type Indirect, Swirl Chamber No. of cylinder Diameter x stroke 78 x 92mm (3.07x3.62 in.) Displacement 1,318cc (80.4 in³)
- Page 136 XG3025 XG3025H Type Independent rear PTO / MID PTO(optional) No. of speed 1 speed gear PTO / Engine 540 rpm / 2509 rpm 3 Point linkage CAT1 Draft load detection Lowering speed control and cylinder Down speed control valve fixing device...
- Page 137 XG3025 XG3025H Rated output 12V - 50A Voltage control Built-in (IC type) Voltage Capacity 80AH Output power 12V, 1.6kW Operation Solenoid type Headlights 12V 55W / 60W (Low / High beam) Turn signal lights 12V 21W / 10W / Side lights (front)
- Page 138 Lubricants and Capacity Recommended Lubricants Capacity International Standard products Engine coolant 4.9 L Soft water (50%) + ASTM D5216 (Radiator) (1.3 U.S.gals.) Anti-freeze (50%) 28 L Ultra low sulfur Fuel ASTM D975 No.2 (7.4 U.S.gals.) diesel fuel KIXX DL Engine oil 4.2 L API CF-4 or CG-4 (Manufacturer :...
- Page 139 FOREWORD Emission Warranty The following warranty applies to the engines that have been certified to the emission regulation of the U.S. Envi- ronmental Protection Agency. Warranty coverage Mitsubishi Heavy Industries, Ltd. warrants to the ultimate purchaser and each subsequent purchaser that the new nonroad engine, including all parts of its emission-control system, meets two conditions:(1) It is designed, built, and equipped so it conforms at the time of sale to the ultimate purchaser with applicable regulation of the U.S.
- Page 140 FOREWORD 3. Sensors. 4. Electronic control units. III. The parts below also included in the evaporative emission gas related components: 1. Fuel Tank. 2. Fuel Cap. 3. Fuel Line. 4. Fuel Line Fittings. 5. Clamps*. 6. Pressure Relief Valves*. 7. Control Valves*. 8.
- Page 141 FOREWORD California Emission Control Warranty Statement: your Warranty Rights and Obligations The following warranty applies to the engines that have been certified the emission regulation of the California Air Resources Board (CARB). The California Air Resources Board (CARB) is pleased to explain the emission control system warranty on you 2013 or later engine.
- Page 142 FOREWORD Warranty coverage (a) The warranty period shall begin on the date the engine or equipment is delivered to an ultimate purchaser.The use of alternate fuels shall not void the warranties on any engine certified to use such fuel. (b) Mitsubishi Heavy Industries, Ltd. of each off-road compression-ignition engine shall warrants to the ultimate pur- chaser and each subsequent purchaser of the engine registered in the state of California that the engine is: (1) Designed, built and equipped so as to conform with all applicable regulations adopted by the Air Resources Board pursuant to its authority in Chapters 1 and 2,Part 5,Division 26 of the Health and Safety Code;and.
- Page 143 FOREWORD (C) Selective catalyst reduction.
- Page 144 FOREWORD hardware. (D) Pulleys, belts and idlers. (E) Emission control information labels (F) Any other part with the primary purpose of reducing emissions or that can increase emissions during fail- ure without significantly degrading engine performance (e) Mitsubishi Heavy Industries, Ltd. shall furnish with each new engine written instructions for the maintenance and use of the engine by the owner.
