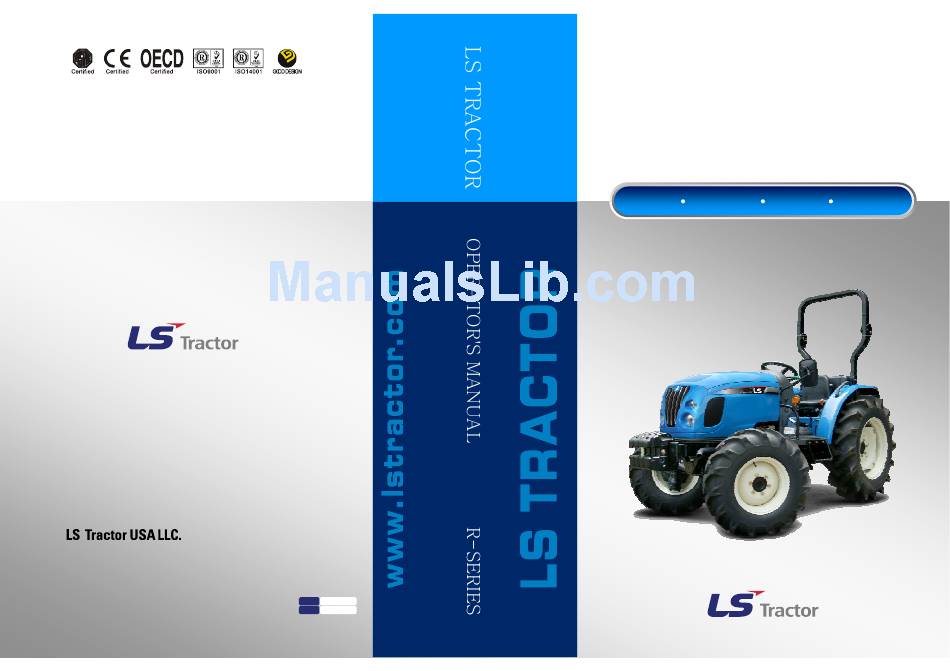

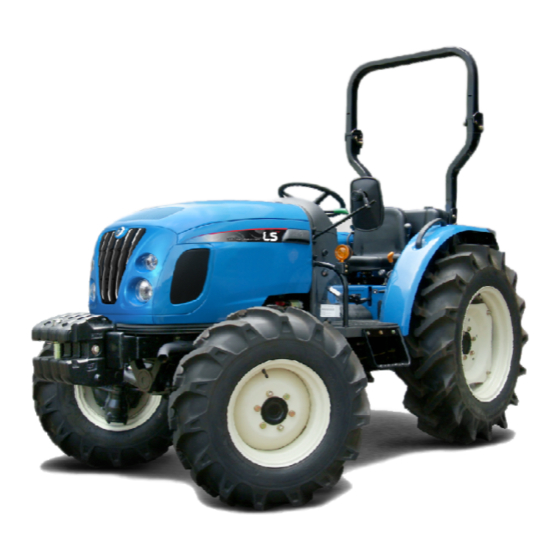

  • Page 1 LS TRACTOR OPERATOR'S MANUAL R4041 R4041H R4047 R4047H P O B o x 7 0 , B a t t l e b o r o , N C 2 7 8 0 9 T e l : 2 5 2 - 9 8 4 - 0 7 0 0 F a x : 2 5 2 - 9 8 4 - 0 7 0 1 w w w .

  • Page 2: Table Of Contents

    Contents 1. General Notices for Safety 1-1. Before using the tractor · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1-1 1-2.
  • Page 3 Contents (8) Engine oil pressure indicator·· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3-3 (9) Battery charging indicator ·...
  • Page 4 Contents (10) Fuse (EZ-Shift) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3-25 (11) Trouble shooting (EZ-Shift) ·...
  • Page 5 Contents 4. Operation and Work 4-1. Engine start and stop (1) Engine start · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-1 (2) Start in cold weather ·...
  • Page 6 Contents 5-6. Check before Starting (Daily check) (1) Engine oil · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5-8 (2) Fuel tank ·...

  • Page 7: General Notices For Safety

    1. General Notices for Safety 1-1. Before using the tractor ※ ※ ※ ※ Read this Operator’s manual carefully, before using the tractor, to understand fully. ◆ ◆ ◆ ◆ General information for right use Your tractor is designed and manufactured to be used for agriculture. Do not use the product for improper purpose out of the intention of manufacturer, and follow the safety instructions provided by this Operator’s manual.
  • Page 8 ◆ ◆ ◆ ◆ Product Identification Your tractor has a exclusive chassis number and engine number marked with product serial number tag to identify the product. (See Fig.1-1) In case of requesting service or parts from your dealer Dealer will need chassis serial number, engine Chassis No.

  • Page 9: Safety Precautions (Read This For Safety Before Using)

    1-2. Safety Precautions - read this for safety before using. (1) Notices before using For Safety Instruction : Before using the tractor, read this Operator's Manual carefully and Refer to Operator’s understand the instructions fully for the safety Manual. prevention and right usage of the tractor and then use the tractor safely according to the instructions.
  • Page 10 Tire air pressure, Wheel bolts, Toe-in, Electrical wirings, other items related to the safety. Genuine Parts : When replacing parts, you must use “Genuine Parts” of LS tractor. Contact your authorized dealer. If not, it may cause a reduction of product life, failure and serious injury.

  • Page 11: Notices When Starting Engine

    Safety Structure : For the safety of the driver, various protection structures are attached on the tractor. If these structures are changed or detached by user arbitrarily, it may cause serious accident. Such behaviors are prohibited strictly. ▶ D o not disassemble or drill the Bonnet (Hood), Fan cover, PTO cover, PTO shaft cover, Safety frame (Roll Bar) or Cabin etc.

  • Page 12: Notices While Operating/Using The Tractor

    (3) Notices while operating/using the tractor Ventilation Warning I t is very dangerous to work in ▶ a closed area. The poisonous exhaust gas may cause serious damage to the human body. If you should work in this area, make sure to ventilate well and put on the protective mask.
  • Page 13 Obey the traffic rules while driving on public roads. Do not exceed the local legal speed limit. Use a sign beacon or slow moving vehicle (SMV) to indicate that the vehicle is slow moving. If you can not drive the tractor due to a failure, move the tractor to a safe place and install troubled vehicle (safety tripod).

  • Page 14: Notices When Connecting Implement

    (4) Notices when connecting Implement Attach or detach the implement on wide and level ground. Do not stand between tractor and implement. Use hitch or drawbar for towing. Do not tow by connecting with any other structures. When connecting heavy implements, apply the parking brake and use the wheel chock.

  • Page 15: Notices When Transporting The Tractor

    (6) Notices when transporting the tractor When transporting the tractor by truck, trailer, etc, use suitable equipment or facilities to load or unload the tractor. Fix the tractor tightly to the vehicle with heavy- duty straps or chains. When fixing the rear of the tractor, use the hitch or hitch support.

  • Page 16: Notices When Checking Tractor After Work

    (8) Notices when checking tractor after work The check and maintenance must be performed after stopping the engine and cooling down the engine sufficiently. DO NOT pour water into the radiator or engine when the engine is hot. The engine or radiator may crack.

  • Page 17: Notices When Handling Diesel Fuel

    (9) Notices when handling Diesel Fuel Do not mix gasoline, alcohol or blended fuels to diesel fuel. These mixtures are explosive in fuel tank. Never remove the fuel cap or refuel with the engine running or hot. Do not smoke while refueling the tractor or when standing near fuel. Keep any type of flame away. Maintain control of the fuel filler nozzle when filling the fuel tank.

  • Page 18: Long-Term Storage

    1-3. Long-term storage (1) Preparation for storage Wash the tractor cleanly and follow the procedure ※ as below. Apply grease or lubricant oil or spray paint to the non-painted metal to avoid corrosion. Keep the tractor in a covered, dry and well-ventilated place. Temperature : 10 ~ 35 ~ 95...

  • Page 19: Check & Maintenance During Storage

    (2) Check & Maintenance during storage Apply grease or lubricant oil to non-painted metal to avoid corrosion. Check the leakage of fuel, oil and coolant. If necessary, repair the damaged part. The battery should be charged about once a month not to be discharged entirely. Check the tire air pressure and maintain the proper pressure.

  • Page 20: Notices For "Use & Disposal" Related To Environment Preservation

    1-4. Notices for ”Use & Disposal” related to Environment preservation Soil, Air and Water are essential elements for human life. To contribute to environment preservation of the Earth, we are trying to minimize the environment pollution necessitated by general business activity such as product design, manufacturing, distribution, etc. Several substances and products derived from chemical and petrochemical products are major portion of environment pollution and must be disposed of according to environment laws or related regulations, and common sense.

  • Page 21: Symbols

    1-5. Symbols The followings show the symbols and its meaning used for the tractor. Refer to User’s Gear Neutral Low speed Manual. Caution! Forward/Rearward High speed Engine speed Battery charging Forward control (throttle) Engine speed Engine speed Fuel level Fuel level Backward Backward control (throttle)

  • Page 22: Safety Decals

    1-6. Safety Decals (1) Handling and Maintenance of Safety Decals For right use and personal safety of the operator, the safety decals (labels) are attached to the parts related with safety operation. Before operating or maintenance of the parts, check the position and read the instructions carefully. The instructions described on the safety decals are very important for the safety of ▶...
  • Page 23 1. Position : Fuel Cap 2. Position : Starting motor 3. Position : PTO Cover 4. Position : Cooling fan 5. Position : Fender 6. Position : Fender 7. Position : Radiator 8. Position : Air cleaner 9. Position : Fender 10.

  • Page 24: Frame Type

    2. The Name of Each Part (1) Frame type Safety frame (Roll bar) Fender Fuel tank Driver’s seat Steering wheel Instrument panel Hood (Bonnet) Tire Sub step Headlight Bumper Front weight 2 2 2 2 - 1...

  • Page 25: Key Switch

    3. Instruments and Controls 3-1. Instrument panel and Switches (1) The name of each part (Mechanical / HST) Turn signal Turn signal Differential lock Tachometer Cold start aid indicator (LH) indicator (RH) indicator indicator Cruise control PTO operation indicator indicator Parking brake Quick turn indicator...

  • Page 26: Tachometer And Hour Meter

    (4) Tachometer and Hour meter The tachometer shows the engine revolutions per minute (“30” means 3000rpm). The operating hour 0005.3 means the tractor has been operated for 5.3hr (5 hours and 18 minutes). Tachometer Hour meter (5) Engine coolant temperature gauge This gauge indicates the temperature of coolant This gauge indicates the temperature of coolant...

  • Page 27: Turn Signal Light Switch

    (7) Turn signal light switch This switch is used when turning to the left or right. If turning the switch to clockwise, the right turn signal light and the indicator are blinking. - If turning the switch to counter-clockwise, the left turn signal light and the indicator are blinking.

  • Page 28: Light Switch

    (11) Light switch - Instrument panel and all lights OFF - Instrument panel and side lights ON - Instrument panel, side lights and headlights (Low beam) ON - Instrument panel, side lights and High beam indicator headlights (High beam) ON Light switch When passing with other vehicles in the opposite lane at night, turn the headlights ▶...

  • Page 29: Work Light Switch

    (14) Work light switch There is a switch to turn on the rear work light. ON – place the switch to the right direction and the work light shall be ON. OFF – place the switch to the left direction and the work light shall be OFF.

  • Page 30: Pto Operation Indicator

    (17) PTO operation indicator When the key switch is “ON” and PTO switch is operation “ON”, this indicator will be ON. indicator ON : PUSH AND TURN OFF : PUSH PTO switch (17) PTO switch The engine starts only when PTO switch is placed in “OFF” position for safety. The engine starts only when PTO switch is placed in “OFF”...

  • Page 31: Operating Levers And Pedals

    3-2. Operating Levers and Pedals Important to owner, read carefully. Mechanical type Shuttle lever Clutch pedal Throttle lever Parking brake lever Brake pedal 4WD lever Throttle pedal Throttle pedal Range gear shift lever Ground PTO lever Differential (if fitted) lock pedal PTO gear lever Main gear (if fitted)
  • Page 32 (1) Shuttle lever (Mechanical type) It is used to select Forward / Reverse. Forward If you push the lever forward, it runs forward and if you pull the lever back, it runs backward. Before moving tractor backward, lower the engine rpm and check behind you. Shuttle lever Backward T he operation of shuttle lever must be done after the tractor has stopped...
  • Page 33 (4) Clutch pedal (Mechanical type) This is used to engage or disengage the main Clutch pedal transmission clutch for starting engine and shifting transmission gear. Depress the clutch pedal quickly and fully and release it slowly. If the PTO mode switch (if fitted) is placed on “MANUAL”, the PTO shaft will NOT stop and if the switch is placed on “INDEP”, the PTO shaft will stop, when the clutch pedal is fully...

  • Page 34: Main Gear Shift Lever

    (6) Parking brake lever If you pull the parking brake lever while pressing the brake pedals, the parking brake shall be Parking brake applied. lever Release the brake pedals slowly to check slippage of the tractor. It can be also used for emergency stopping. To release the parking brake, press the brake pedals first and press the button of parking brake and push the lever down.

  • Page 35: Range Gear Shift Lever

    (8) Range gear shift lever 4 4 4 4 Mechanical type 3 3 3 3 Four stage speed selection is available. N N N N Range gear shift lever should be operated after 2 2 2 2 the tractor has stopped completely. 1 1 1 1 1 1 1 1 HST type...

  • Page 36: 4Wd Lever

    (10) 4WD lever If you push the lever down, the front wheels are driven. Before driving front axle, depress the clutch pedal and stop the tractor completely and then operate the lever. 4WD lever Front wheel drive (4WD) is effective for the followings.

  • Page 37: Hst Forward/ Reverse Pedal (Hst Type)

    Regarding the function of the differential lock HST type HST type HST type HST type pedal, HST type is identical with the mechanical one except that each pedal is located at both different sides of platform. Differential lock pedal (12) HST forward/ reverse pedal (HST type) (HST type) forward...

  • Page 38: Driver's Seat (Hst Type)

    (14) Driver’s seat (HST type) At the lower end of the seat, there is a switch to Seat switch detect that operator is sitting in seat. If the operator gets up from the seat while engine is running, the engine will stop automatically for safety in case of ;...

  • Page 39: Tilt Steering Wheel

    (16) Tilt steering wheel Pull the tilt lever upward to release the steering column and tilt the steering wheel to desired position. And, push the tilt lever downward to lock the Release steering column in place, and check to make sure column does not move forward and backward.

  • Page 40: Ez-Shift (Automated Mechanical Transmission) (If Fitted)

    3-3. EZ-Shift (Automated Mechanical Transmission) (If fitted) EZ-Shift (Automated mechanical transmission) calls an advanced transmission that electronic control systems are mixed to the conventional gear train and clutch linkage system to improve the operational convenience. EZ-Shift shuttle lever can be shifted without using clutch pedal, and also you can shift the main gear shift lever by using a main clutch control switch without pressing clutch pedal.
  • Page 41 ►Even though the EZ-Shift system is considered and designed for operator’s safety, it is necessary to reduce the driving speed before shifting the shuttle lever. Especially, ON A SLOPE, when shifting the shuttle lever in reverse/forward, the driving speed sometimes goes faster than before shifting the shuttle lever by rolling down.

  • Page 42: Clutch Pedal (Ez-Shift)

    (3) Clutch pedal (EZ-Shift) This pedal is used to engage or disengage the engine power for engine start, transmission shift and stopping the vehicle. If the main clutch control switch is pressed, operating force of the clutch pedal shall be reduced considerably.

  • Page 43: Instrument Panel (Ez-Shift)

    (5) Instrument panel (EZ-Shift) Quick turn Reverse Neutral Forward Tachometer Low speed Not used indicator indicator indicator indicator indicator indicator High speed (option) (option) Not used PTO operation indicator Parking indicator Eng. coolant temperature Engine oil gauge pressure indicator Not used Not used Pre-heat Battery...

  • Page 44: Time Clock Adjustment (Ez-Shift)

    (6) Time clock adjustment (EZ- Shift) ① Remove the two knob bolt(1) and remove the dash under cover. Turn the ignition key ON. Use the 3 pin connector which is located under dash to adjust the time clock. No. 1 : Male, Black No.

  • Page 45: Error Diagnosis Code (Ez-Shift)

    (7) Error Diagnosis Code (EZ-Shift) If the sensor or actuator relating to the EZ-Shift system has failed, the error code shall be displayed on the Instrument panel as shown in the right figure. In case of several errors, the errors shall be displayed repeatedly every 1 second.

  • Page 46: Electrical Switch & Sensor Check (Ez-Shift)

    (8) Electrical Sensor & Switch High speed indicator Check (EZ-Shift) Low speed indicator Before starting engine, check the electrical switches or sensors - clutch pedal sensor, main clutch control switch, range gear sensor related to EZ-Shift control. After turning the key switch to “ON” position, check them as follows.

  • Page 47: Automatic Calibration (Ez-Shift)

    (9) Automatic calibration (EZ-Shift) When using the EZ-Shift shuttle lever or main clutch control switch, If the main clutch pad or relating parts is worn out considerably, it may cause a trouble like as gearing shock and noise due to uncompleted disengagement of the main clutch.
  • Page 48 ► During the calibration, do not connect the calibration connector again and do not any other operation. ►If an alarming buzzer does not sound after connecting calibration connectors, it means failure of the engine rpm sensor or calibration connectors. After repairing the Caution parts, calibrate the system again.

  • Page 49: Fuse (Ez-Shift)

    (10) Fuse (EZ-Shift) ① ① ① ① Fuse check and replacement How to replace the fuse ? 1. Remove the cover of fuse box. 2. Check each fuse and remove the damaged fuse. 3. Replace it with a new one having same capacity. Rated capacity and function of each fuse is described in the cover of the fuse box.

  • Page 50: Trouble Shooting (Ez-Shift)

    (11) Trouble shooting (EZ-Shift) To avoid injury due to sudden start, apply parking brake and place the ▶ Warning transmission gear in “Neutral”. System Faults Possible causes Solutions Start safety switch is not Depress clutch pedal fully ▲ ▲ contacted. The start motor does PTO switch is not in “OFF”...
  • Page 51 System Faults Possible causes Solutions Speed sensor error Replace ▲ ▲ Automatic calibration error Comply with instruction. ▲ ▲ Traction is getting lower considerably. ▲ Clutch actuator damaged ▲ Replace ▲ EZ-Shift controller error ▲ Replace Replace ▲ ▲ Forward/reverse lever error When the EZ-Shift ▲...

  • Page 52: Hydraulic System

    3-4. Hydraulic system (1) Steering system As the steering system of your tractor has a hydraulic pump, valve and etc., it provides you more convenience to operate the steering wheel. And the non-load reaction system was applied to avoid the moving of the steering wheel by the impact of the front wheels on rough ground. Notices when using the steering system.
  • Page 53 ① ① ① ① Position control This mode sets the position of implements freely by position control lever operation. Generally, Position this mode is used for tiller, fertilizer distributor, control lever mower, rake etc. In this case, operate the lever as follows.

  • Page 54: Down Speed Control Knob

    (3) Down speed control knob Turn the valve knob to the clockwise to lower the implement slowly and to the counter-clockwise to rise speed faster. If turning clockwise fully, the implement is fixed and even If lowering down the control lever, the implement does not let down. Fast Tiller : Slow in down speed Slow...

  • Page 55: Joystick Lever (If Fitted)

    (5) Joystick lever (if fitted) ※ Remote joystick lever helps to operate front ① loader comfortably. ② When connecting hydraulic hoses, comply with the ③ instruction as below. loader down - opening ► ① ④ ► loader up - opening ②...

  • Page 56: Hydraulic System Diagram

    (6) Hydraulic System Diagram Mechanical type 7. Front outlet valve 1. Hydraulic oil filter 11. Hydraulic lift cylinder Front loader valve (if fitted) 2. Steering pump 12. Safety valve 8. Remote control valve 3. Steering unit 13. In-line filter (if fitted) 9.
  • Page 57 13. Down speed control valve 1. Hydraulic filter 8. Hydraulic lift pump 14. Safety valve 2. Steering pump 9. Front outlet valve 15. Hydraulic lift cylinder 3. Steering unit Front loader valve (if fitted) 16. In-line filter (option) 4. Steering cylinder 10.

  • Page 58: Safety Device

    3-5. Safety Device (1) Seat belt Always wear the seat belt before operating the tractor and adjust the belt to fit the operator. 1. Insert the seat belt end into the buckle until a ‘click’ indicates it is properly engaged. 2.

  • Page 59: Operation And Work

    4. Operation and Work 4-1. Engine start and stop ▶ C heck each part before starting engine. C heck if there is some other ▶ Caution people around before starting. P lace all the levers and switches in ▶ NEUTRAL or OFF position. (1) Engine start Mechanical type Mechanical type...
  • Page 60 C heck each part before starting ▶ engine. C heck if there is some other ▶ Caution people around before starting. P lace all the levers and switches in ▶ NEUTRAL or OFF position. HST type HST type HST type HST type 1.

  • Page 61: Start In Cold Weather

    O nly start engine outdoors or in a well ventilated place, as the engine exhaust ▶ Warning fumes may cause sickness or death. . T o avoid an explosion, never use starting fluid to start engine. ▶ S tart the engine ONLY from the driver’s seat with placing all the transmission gear ▶...

  • Page 62: How To Drive And How To Stop

    4-2. How to drive and how to stop (1) How to drive Mechanical type 1. Pull the position control lever back to lift the implement up after starting engine. Position control lever 2. Set the engine speed at 1500 rpm. rpm.
  • Page 63 HST type 1. Pull the position control lever back to lift the implement up after starting engine. Position control lever 2. Set the engine speed more than 1500 rev/min. 3. Place the range gear shift lever in desired position. Brake pedal Throttle lever 5.

  • Page 64: Changing Speed

    (2) Changing speed Mechanical type Clutch pedal Depress the clutch pedal fully and operate all the shift lever correctly. For more information, refer to “Operating Levers and Pedals” in the Section 3-2. (See page 3-7) HST type Just pressing the HST forward / reverse pedal respectively makes it possible to travel forward and in reverse.

  • Page 65: Emergency Stop

    (3) Emergency Stop Mechanical type 1. Press the clutch pedal and brake Throttle pedal at the same time to stop the tractor. lever Turn OFF the key switch. 2. DO NOT release clutch pedal until all moving parts have stopped. Clutch Clutch Brake...

  • Page 66: Stopping Tractor

    (4) Stopping tractor Mechanical type Throttle lever 1. Press the clutch and brake pedal. Place the shuttle lever, main gear shift lever in NEUTRAL and PTO switch to OFF position. Clutch Brake 2. Push the position control lever forward pedal pedal to lower implements to the ground.

  • Page 67: Driving Tractor On The Road

    (5) Driving tractor on the road When facing downhill, DO NOT place the gear lever in NEUTRAL position. When driving the tractor on a unpaved road by attaching an implement to 3-point linkage, place the gear lever to low speed and DO NOT lift the implement up to the highest position. When the tractor bumps an obstacle, it may cause the jolting of implement and the failure of hydraulic system.

  • Page 68: Parking

    (6) Parking Stop the tractor on a level surface, not on a slope. Disengage PTO and place all the transmission shift lever in NEUTRAL position and apply the parking brake. Stop engine and remove ignition key. Before you leave the operator’s station, wait for engine and all moving parts to stop.

  • Page 69: How To Handle New Tractor

    4-3. How to handle new tractor (1) Check points For new tractor, the followings must be checked once again even though there was sufficient quality ※ management, inspection, regulating of each part in the factory. Appearance check - Is there any damage while transporting? Engine cooling system check - Is there anti-freeze solution in the radiator? And any leakage? Fuel system check...

  • Page 70: Attaching Implement

    4-4. Attaching Implement (1) 3-point linkage ⑦ ⑦ ⑦ ⑦ ⑤ ⑤ ⑤ ⑤ ⑥ ⑥ ⑥ ⑥ ① Lift rod (LH) ② Stabilizer ④ ④ ④ ④ ③ Lower link ① ① ① ① ④ ④ Lift rod (RH) Lift rod (RH) ⑤...

  • Page 71: Upper Link Installation And Adjustment

    (2) Upper link installation and adjustment ③ ③ ③ ③ Select the attaching hole depending on the draft ④ ④ ④ ④ load of the implement. ⑦ ⑦ ⑦ ⑦ The upper hole is more sensible than lower one. Adjust the length of the upper link(3) using the ①⑥...

  • Page 72: Reference Of Implement Installation Part

    ② ② ② ② Telescopic type Pull up the link pin (1) and adjust the stabilizer by moving the pin in stabilizer holes. After the adjustment, insert the pin into the desired hole and let it tightened firmly by locking spring.

  • Page 73: Reference Of Pto Shaft

    (6) Reference of PTO shaft PTO gear PTO / Engine speed 540 / 2409 rpm 750 / 2375 rpm 1000 / 2381 rpm Revolution direction Clockwise (direction from which looking at PTO shaft) Ground clearance 620mm (24.4 in) (0.34 in) (0.34 in) Shaft dimension (Unit : inch)

  • Page 74: Hitch And Drawbar

    (8) Hitch and Drawbar (option) When attaching towing equipments, use the hitch or drawbar. DO NOT use the 3-point linkage or other parts. If so, the tractor could turnover. Hitch pin Insert the hitch pin and snap pin correctly after attaching/detaching equipment.

  • Page 75: 7-Pole Connector (Option)

    (9) 7-Pole connector (option) The one of the standard 7-pole trailer connectors is provided and is mounted at the rear of the tractor. The connections of the 7-pole connector (viewed from the rear of the tractor) are as follows; EC Version Pin No.

  • Page 76: Technically Maximum Permissible Mass

    (10) Technically maximum permissible mass When working with front loader or rear heavy loaded attachments installed to the 3-point linkage, install ballast weights on the counter-part axle to maintain the front and rear weight balance of the tractor. If not, front or rear axle can be strained by the overloaded weight. When working with the front loader, place the attached rear weight to the highest position and turn the down speed control knob to the “lock”...

  • Page 77: Adjusting Wheel Tracks And Tire Replacement

    (11) Adjusting Wheel tracks and tire replacement (Rear wheel) Track between rear wheels 1094mm (43.1in.) ~ 1262mm (49.7in.) If the front wheel track is adjusted, check the clearance between tires and tractor body case “A” by case. If necessary, the steering angle must be adjusted as following page.

  • Page 78: Tires And Load Capacity

    (12) Tires and Load capacity Axle No. Load capacity (x2) Tires Standard tire air pressure (kg) 9.5-16 6PR 207 KPa, 30 psi 810 (1786 lb) 12.4-24 4PR 110 KPa, 16 psi 2220 (4894 lb) 8-16 4PR 160 KPa, 23 psi 950 (2094 lb) 12.4-24 6PR 160 KPa, 23 psi...

  • Page 79: Adjusting Steering Angle

    (13) Adjusting Steering angle If the front wheel track is adjusted or front tires are replaced with new tires having bigger diameter or width, or one of the front equipments is attached, the steering angle must be adjusted as below. 1) Loosen the locking nut on both sides.

  • Page 80: Driving Speed

    The driving speed of tractor or the revolution speed of PTO depends on the work, tire and ground condition. For safety, operate the tractor at suitable speed. Table of driving speed (unit : Km/h -> Mile/h) Mechanical Type R4041 / R4041 EZ Range gear Main gear 13.5...
  • Page 81 Driving speed (unit : Km/h -> Mile/h) HST Type R4041H Range gear 0~4.6 0~10.5 0~24.0 Forward (0~2.88) (0~6.49) (0~14.91) 0~4.6 0~10.5 0~24.0 Reverse (0~2.88) (0~6.49) (0~14.91) Note) Engine rated speed : 2600 rev/min, Dynamic load radius : 540mm (21.3 in.) R4047H Range gear 0~4.8...

  • Page 82: Lubrication And Maintenance

    5. Lubrication and Maintenance 5-1. Checking of Each Part (1) Checking parts Mechanical type 5 5 5 5 - 1...
  • Page 83 HST type HST type HST type HST type 5 5 5 5 - 2...

  • Page 84: Maintenance Table

    (2) Maintenance Table Mechanical type Checking period (time) Capacity & Checking part Type Dimension Daily 1200 ▲ Fuel tank See page 5-5 See page 5-5 ● Fuel filter Element ▲ ● Engine oil See page 5-5 7.0 L (1.9 U.S.gals.) ★...
  • Page 85 HST type Checking period (time) Capacity & Checking part Type Dimension Daily 1200 ▲ Fuel tank See page 5-5 See page 5-5 ● Fuel filter Element ▲ ● Engine oil See page 5-5 7.0 L (1.9 U.S.gals.) ★ ● Engine oil filter Element ▲...

  • Page 86: Lubricants And Capacity

    (Crank case) (Crank case) (1.9 U.S.gals.) (1.9 U.S.gals.) Spring/ Fall : Spring/ Fall : SAE 15W/40, SAE 20 LSTH570 (LS Tractor Transmission oil T/M & Hyd. oil) (common use for 43 L API GL4 Manufacturer : GS hydraulic lift and (11.4 U.S.gals.)

  • Page 87: Access For Maintenance

    5-3. Access for maintenance For safety, the hood must be closed and correctly latched before operating the tractor. The hood is hinged at the rear and a gas cylinder is attached to provide easy access to the engine for check and maintenance. To open the hood, pull the hood opening knob and lift the hood up.

  • Page 88: When The Warning Indicator Lights

    5-5. When the warning indicator lights (1) Drain water from Fuel filter 1. Loosen the drain plug and drain water inside of Drain plug the filter. (Approx. 150cc(9.1 in³)) 2. Tighten the drain plug and bleed the air from the fuel filter.
  • Page 89 5-6. Checking Before Starting (Daily check) Before starting engine, check the followings carefully to avoid any failure or damage. Damage of Headlights, Wheel bolts and Amount of Brake, Clutch Fuel Turn signal lights, tightening of engine coolant operation level Horn etc. each part Cleanness of Condition of air...

  • Page 90: Engine Oil

    (2) Fuel tank ① ① ① ① Tank capacity : 36 L (9.5 U.S.gals.), 32 L (8.5 U.S.gals.) (option) ② ② ② ② Using Fuel Use low sulfuric diesel. Drum If contaminants like water or dusts are mixed in Impurities the fuel, it may cause a severe damage to the engine.

  • Page 91: Turn Signal Lights, Lights And Horn

    (4) Turn signal lights, Lights, Horn Check the operation of lights, turn signal lights, horn etc. Turn signal Light switch switch If the light is OFF suddenly when operating the switch, check the problems as followings. 1. Check the corresponding fuse in the fuse box. Horn switch 2.

  • Page 92: Air Cleaner (Dry Type)

    (6) Air cleaner (Dry type) Cover ① ① ① ① Cleaning filter element Remove the cover and pull the primary element straight out, ensuring the safety filter element Evacuator remains in place. (Fig. 1) valve When cleaning the element in the working field, Primary Safety filter element...

  • Page 93: Cleaning Of Radiator And Radiator Screen

    The tire pressures vary depending on the load weighing on the axles. ▶ ② ② ② ② Standard air pressure – for further information, see page 4-20 Model Tire Air pressure R4041/R4041H 9.5-16 (6PR) 207 KPa (30 psi) Front wheel R4047/R4047H 9.5-16 (6PR) 207 KPa (30 psi) R4041/R4041H 12.4-24 (4PR)

  • Page 94: Tightening State Of Bolts And Nuts Of Each Part

    (9) Tightening state of Bolts and Nuts of each part Check if the bolt or nut of each part is loosened and If loosened, tighten it again. Check the bolts and nuts of tires before starting engine. (10) Adjustment of Clutch pedal play (Mechanical type) Adjuster Check the distance of clutch pedal play.

  • Page 95: Adjusting Hst Control Linkage (Hst Type)

    (11) Adjusting HST control linkage (HST type) Run engine and place the range gear shift lever in lowest range. Check if the HST tractor stops by taking the foot off from the pedal while driving. If the tractor does not stop, stop the tractor immediately by using brake pedal. And, adjust the neutral position as below.

  • Page 96: Adjustment Of Brake Pedal Play

    (12) Adjustment of Brake pedal play Check the distance of brake pedal play. Normal distance : 50~60mm. (1.97~2.36 in.) Brake pedal Locking nut If the pedal play distance is over 60mm (2.36 in.), adjust it as below. Adjuster 1. Loosen the locking nut and turn brake rod to adjust.

  • Page 97: Lubricating Grease Nipple

    5-7. Every 50 hour check (1) Lubricating grease nipple Grease nipple Steering cylinder pins (LH/RH) Front axle holder & Steering arm (LH/RH) 3-point linkage Grease nipple Grease nipple Grease nipple 5 5 5 5 - 16...

  • Page 98: Checking Transmission Oil

    (2) Checking Transmission oil Stop the tractor on level surface and apply the Max. Parking brake and lower implements to the ground. Min. Clean around oil filling inlet and pull the gauge <Oil gauge > straight out. If oil level is between “Max” and “Min” of oil gauge, it means ‘Proper amount’.

  • Page 99: Every 300 Hour Check

    5-8. Every 300 hour check Oil filling inlet (1) Replacing Engine oil and Filter ① ① ① ① Drain Engine oil Run engine for a few minutes to warm oil Park the tractor on a level surface. Remove drain plug of oil pan and drain the oil completely.

  • Page 100: Replacing Hydraulic Oil Filter

    (2) Replacing Hydraulic Oil Filter ① ① ① ① Hydraulic oil filter (Main) Park tractor on level surface and apply parking brake and lower implements and stop the engine. Hydraulic Close oil filter Carefully clean around the filter and set a clean container under the filter.

  • Page 101: Replacing Fuel Filter Cartridge

    (3) Replacing Fuel filter cartridge 1. Loosen the drain plug and drain the fuel inside of the filter. Drain plug 2. Disconnect electric wire of the fuel filter sensor. 3. Remove the element from the body 4. Remove the fuel filter sensor from the element and assemble it to the new element.

  • Page 102: Tension Adjustment Of Fan Belt

    (5) Tension adjustment of Fan belt Check the tension of fan belt. If it’s not normal, Adjusting plate loosen the bolt and adjust the tension. Bolt - Belt tension : crank shaft pulley ~ water pump pulley - Normal : approx. 10~12mm (0.39~0.47in.) (if pressed by 98 N (22.04 lb)) Generator pulley...

  • Page 103: Every 600 Hour Check

    5-9. Every 600 hour check Oil filling inlet (1) Changing Front axle oil Remove left/right drain plug and oil filling inlet to drain oil completely. Wrap the sealing tape on the plug and tighten the drain plug. Add new oil into the oil filling inlet with checking if the oil flows out through the oil check port.

  • Page 104: Replacement Of Engine Coolant

    (3) Replacement of Engine Coolant ① ① ① ① Capacity : 6.1 L ( 1.6 U.S.gals.) Radiator cap ② ② ② ② Check Check the coolant of radiator and expansion tank whether it is insufficient or not. Do not open the radiator cap except to check the coolant or change it.

  • Page 105: Adjusting Engine Valve Clearance

    (4) Adjusting Engine Valve 0.25mm clearance Ask your authorized dealer to check the valve clearance. Clearance : 0.25mm (0.0098 inch) If the gap is big, the noise increase and if the gap is small, the engine power can be low. (5) Checking Nozzle injection pressure Contact your authorized dealer.

  • Page 106: General Maintenance (When Required)

    5-10. General maintenance (When required) (1) Air-bleeding from Fuel system The air in the fuel system may cause weak injection and the failure of engine start or stop. To prevent such failures, bleed the air from fuel system. Fuel injection pipe Fuel injection nozzle Fuel return pipe Fuel injection pump...
  • Page 107 ② ② ② ② Air-bleeding from Fuel injection pump 1. Turn key switch to the “ON” position. Air bleed bolt 2. Loosen the air-bleed bolt by using a spanner and turn it by hands until it stops. 3. If clean fuel without bubbles comes out, turn the key switch to “OFF”...

  • Page 108: Fuse & Main Fuse

    (2) Fuse & Main fuse ① ① ① ① Fuse check and replacement How to replace the fuse 1. Remove the cover of fuse box. 2. Check each fuse and remove the damaged fuse. 3. Replace the new one same as damaged one. Capacity and function of each fuse is described in the cover of fuse box.
  • Page 109 ② ② ② ② Main fuse (SLOW BLOW FUSE) check and replacement Main fuse is attached to the wiring of right side of the engine. If main fuse is damaged, remove it from the Main fuse wiring and replace with a genuine part. As main fuse is a device to protect the electric system and wiring, if damaged, check if there is trouble in the electric system.

  • Page 110: Battery Handling And Notices

    Get medical attention immediately. Charge the battery in an area with good ventilation and DO NOT charge a frozen ▶ battery. Replace it with LS tractor genuine products or the battery with the same capacity. ▶ 5 5 5 5 - 29...
  • Page 111 R eplaced old battery must be disposed of in a suitable manner, according to the ▶ national legislation or local regulations. Contact your authorized dealer. Replace it with LS tractor genuine products or the battery with the same capacity. ▶ 5 5 5 5 - 30...
  • Page 112 ③ ③ ③ ③ Notices in charging the battery using separate charger As the battery fluid makes poisonous gas which can explode during the charging, comply with the following instructions. 1. Detach battery from the tractor. 2. Wait until the battery is warmed to room temperature.
  • Page 113 ④ ④ ④ ④ How to use jumper cables if the battery which is attached to the tractor is discharged and needs to connect a auxiliary battery, ※ follow the instructions as below. ⓐ ⓐ ⓐ ⓐ Connecting Jumper cables Check followings before connecting the cables.

  • Page 114: Troubleshooting

    5-11. Troubleshooting To avoid injury due to sudden start, apply parking brake and place the ▶ Warning transmission gear in “Neutral”. System Faults Possible causes Solutions Start safety switch is not Depress clutch pedal fully ▲ ▲ contacted. PTO switch is not in “OFF” Place PTO switch in “OFF”...
  • Page 115 System Faults Possible causes Solutions Fault of injection pump Repair ▲ ▲ Engine stops at low Valve gap is not correct Adjust the gap ▲ ▲ speed revolution. Poor nozzle pressure Repair ▲ ▲ Lack of coolant Supplement ▲ ▲ Bad fan belt tension or broken Adjust belt tension or ▲...
  • Page 116 System Faults Possible causes Solutions Wrong brake pedal play. Adjust ▲ ▲ Brake does not work or Lining worn or broken Replace ▲ ▲ only one side works. Left/right pedal play is different Adjust ▲ ▲ Brake After brake pedal Return spring damaged Replace the spring ▲...
  • Page 117 System Faults Possible causes Solutions Repair or replace Pump worn or part damaged ▲ ▲ Repair or replace Steering unit damaged or worn ▲ ▲ Hydraulic steering Repair Oil leakage by steering ▲ ▲ system does not work. cylinder piston seal damaged or worn Oil leakage by pipe damage ▲...
  • Page 118 System Faults Possible causes Solutions Check and repair ▲ Low pressure relief set is too ▲ High pressure relief set is too Check and repair ▲ ▲ When operating HST HST charger valve fault ▲ pedal, tractor dose not Replace ▲...
  • Page 119 System Faults Possible causes Solutions Abnormal wiring Check the tightening state ▲ ▲ of terminals and ground Alternator failure Repair or replace Battery does not ▲ ▲ charge Lack of fan belt tension or Adjust fan belt tension or ▲ ▲...

  • Page 120: Dimension And Specification

    6. Dimension and Specification 6 6 6 6 - 1...
  • Page 121 R4041 / R4047 / R4041H R4047H R4041 EZ R4047 EZ 1620kg 1640kg 1650kg 1680kg FRAME Type (3571 lb) (3615 lb) (3638 lb) (3704 lb) CAB Type Bumper 21kg (46.3 lb) Front weight 20kg (44.1 lb) x 4 Model S4Q-D30.2kW S4QL-L34.6kW...
  • Page 122 R4041 / R4047 / R4041H R4047H R4041 EZ R4047 EZ Synchro-shuttle Synchro-shuttle Forward / Reverse type type Helical / Helical / Main gear Synchromesh Synchromesh Gear Range gear Spur / Constant mesh type Creeper gear Main gear Gear Range gear...
  • Page 123 R4041 / R4047 / R4041H R4047H R4041 EZ R4047 EZ No. of Quick coupler 4 (option : 2 or 6) Aux. Valve for front Front loader valve / Front outlet block (option) loader Wheel position Center Type Hydrostatic Min. turning radius 2.6m (8.5ft)
  • Page 124 R4041 / R4047 / R4041H R4047H R4041 EZ R4047 EZ Front 9.5-16 (6PR) 9.5-16 (6PR) Rear 12.4-24 (4PR) 12.4-24 (4PR) Stage Front Range Stage 5 Stage Rear 1066~1262mm Range (42.0~49.7 in.) ** These specifications are only general product information and can be changed to improve the...
  • Page 125 (Crank case) (Crank case) (1.9 U.S.gals.) (1.9 U.S.gals.) Spring/ Fall : Spring/ Fall : SAE 15W/40, SAE 20 LSTH570 (LS Tractor Transmission oil T/M & Hyd. oil) (common use for 43 L API GL4 Manufacturer : GS hydraulic lift and (11.4 U.S.gals.)

This manual is also suitable for:

R4041hR4047R4047h

Table of Contents

Save PDF
