FEATURES
• 1/2.9" 2.1 Megapixel Progressive Scan CMOS Sensor
• HD-TVI, AHD, CVI, and CVBS Video Output
• 3.6mm & 2.8mm Fixed Lens Options
• Up to 70' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP66 Weather Resistance
• Supports Up The COAX Control
• Over 1500' HD Video Transmission (Depending on cable characteristics and integrity)
• Optional Junction Box Mounts Available
• 12VDC Operation

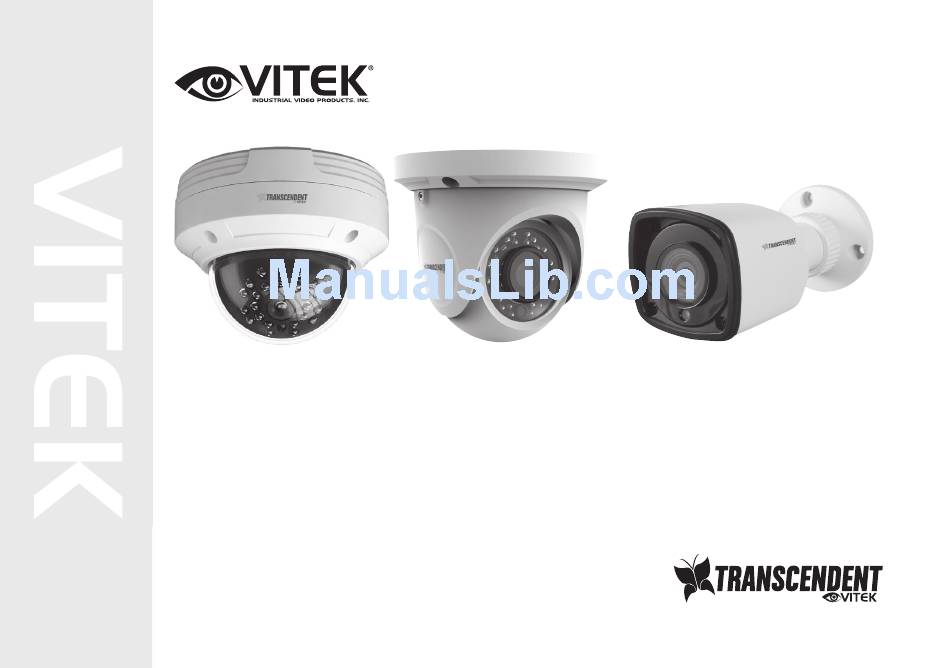

VTD-THD2RFE
VTC-THT2RFE
VTC-THB2RFE
2.1 Megapixel Indoor/Outdoor HD-TVI/
AHD/CVI/CVBS IR Cameras
Advertisement
Table of Contents
Related Manuals for Vitek VTD-THD2RFE
Summary of Contents for Vitek VTD-THD2RFE
- Page 1 VTD-THD2RFE VTC-THT2RFE VTC-THB2RFE 2.1 Megapixel Indoor/Outdoor HD-TVI/ AHD/CVI/CVBS IR Cameras FEATURES • 1/2.9” 2.1 Megapixel Progressive Scan CMOS Sensor • HD-TVI, AHD, CVI, and CVBS Video Output • 3.6mm & 2.8mm Fixed Lens Options • Up to 70’ IR Range •...
-
Page 2: Safety Precaution
Limited Product Warranty To prevent electrical shock and risk of fire hazards, do not expose this unit VITEK products carry a three (3) year limited warranty. VITEK warrants to to rain or moisture and only use specified power source.. the purchaser that products manufactured by VITEK are free of any rightful... -
Page 3: Video Connection
VTC-THB2RFE Components Video Connection Connect the BNC video connector to a BNC cable, then to a Camera Screws recorder. Monitor Manual Drill Template Overview This camera series supports both fixed and varifocal lenses. Please note that the zoom and focus features mentioned below are only available on the varifocal lens version. -
Page 4: Installation
Installation Before you begin, please make sure that the wall or ceiling is strong 3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then enough to withstand 3 times the weight of the camera. The mounting tighten the mount lock to secure the viewing angle adjustments. -
Page 5: Power Connection
VTC-THT2RFE Components Video Connection Connect the BNC video connector to a BNC cable, then to a recorder. Monitor Camera Hex Wrench Manual Mounting Plate Screws Rubber Plug Overview This camera series supports both fixed and varifocal lenses. Please note Video that the zoom and focus features mentioned below are not features of the fixed lens version. - Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 7 VTD-THD2RFE Components Video Connection Connect the BNC video connector to a BNC cable, then to a recorder. Camera Screws Monitor Manual Hex Wrench Drill Template Overview Video **NOTE: This camera must be connected to a DVR that supports calling up the camera’s OSD menu via CoC.
- Page 8 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Adjust the Three-axis camer bracket to obtain the optimium enough to withstand 3 times the weight of the camera. The mounting viewing angle. steps are as follows: 1.
-
Page 9: Camera Osd Menu
OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The following menu toolbar will pop up by right-clicking the mouse when using VITEK Transcendent Series HD DVRs. You will see the following interface by clicking the button. - Page 10 Detailed Specifications VTC-THB2RFE VTC-THT2RFE VTD-THD2RFE Image Sensor 1/2.9” 2.1 Megapixel Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 1920(H) x 1080(V) Resolution HD-TVI / HD-CVI / AHD: 1080p/720p (2.1 MegaPixel) / CVBS: 960H Video Output HD-TVI / HD-CVI / AHD & CVBS (Selectable) Lens 3.6 mm (2.8mm Also Available)
- Page 11 VARIFOCAL TRANSCENDENT CAMERAS VTC-TTAT2HR2V VTD-TTAD30R2V VTC-TTAB36R2V Transcendent Series 2.1 Megapixel Transcendent Series 2.1 Megapixel Transcendent Series 2.1 Megapixel Outdoor HD-TVI/AHD/CVBS Turret Outdoor HD-TVI / AHD / CVBS Outdoor HD-TVI/AHD/CVBS Camera Camera with 2 High Power IR LED Vandal Dome Camera with 30 IR LED with 36 IR LED Illumination Illumination Illumination...
- Page 12 Version 2.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 September 2017 WWW.VITEKCCTV.COM...
