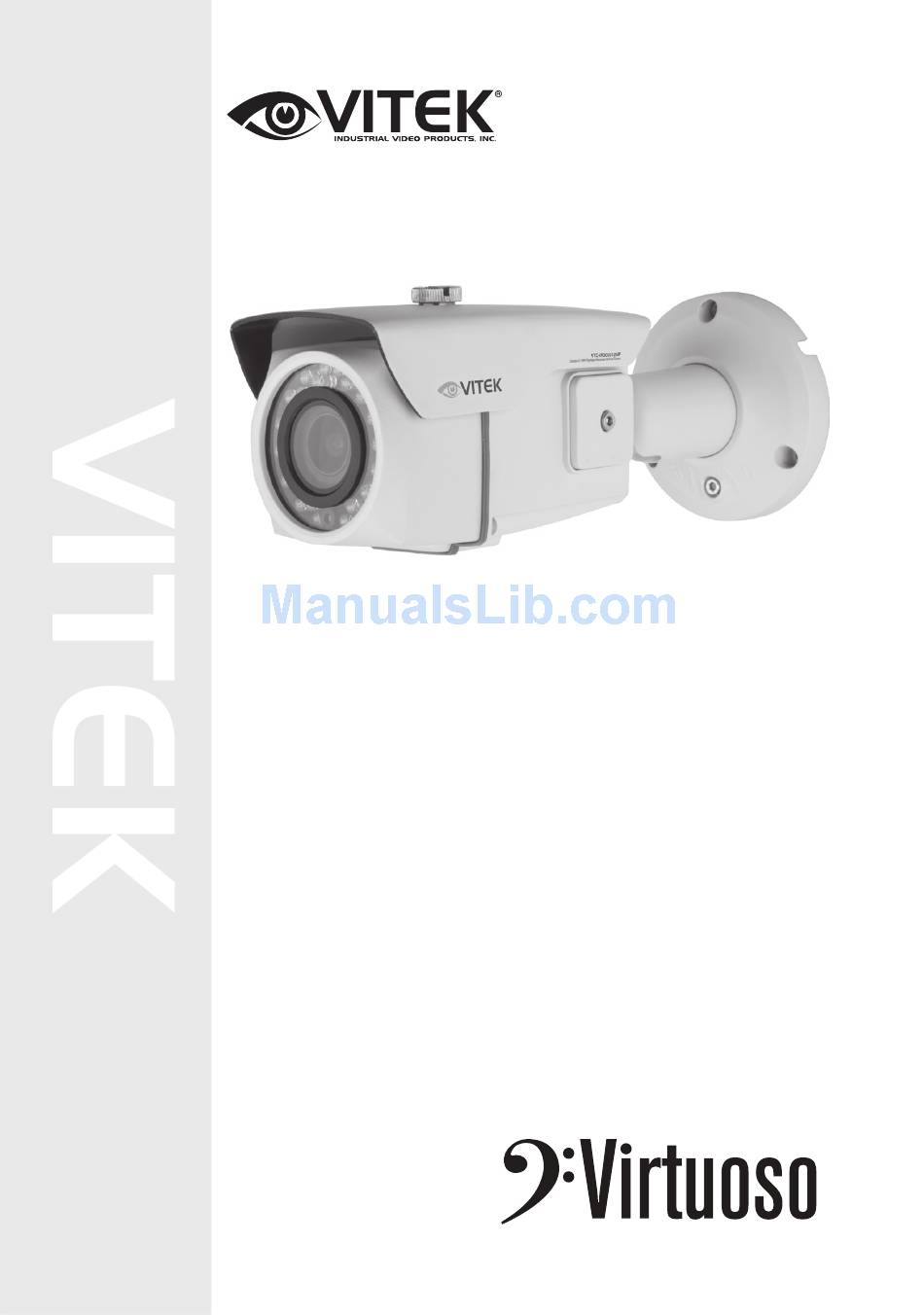

Virtuoso series 3.15mp wdr ip camera with 30 ir leds

Advertisement

Quick Links

INSTALLATION GUIDE

FEATURES:
• Sony® 1/2.8" Progressive Scan CMOS Sensor
• Up to 30fps live view @ 2048 x 1536 (3.15 MegaPixel)
• MegaPixel IR Corrected 2.8-12mm Motorized Varifocal Lens with 1 click
focus for easy Configuration
• 30 Dynamic Infrared LEDs at 850nm enable viewing in total darkness up to
100 feet
• Dual Glass Compartments to Eliminate IR Reflection
• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
• True Day/Night by ICR - Dual Filter Switch
• Triple Streaming (H.264/MJPEG) offering Extensive Integration Possibilities
• Real-time Lens Distortion Correction (LDC) for an optically correct picture
• Compliance with the latest Onvif Profile S
• On-board network security with IP address filtering
• Advanced OSD Features including Image Stabilization & Corridor Mode
• MicroSD memory card slot for Local recording supporting up to 128GB
MicroSDXC cards
• 3-Axis mount with Simple One Turn Positioning Lock for Ease of Installation
• IP-67 Rated Water Resistance
• 12VDC, 24VAC and PoE (Power over Ethernet) Operation
VTC-IR303-212NP
Virtuoso Series 3.15MP WDR
IP Camera with 30 IR LEDs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-IR303-212NP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vitek VTC-IR303-212NP

  • Page 1: Installation Guide

    VTC-IR303-212NP Virtuoso Series 3.15MP WDR IP Camera with 30 IR LEDs INSTALLATION GUIDE FEATURES: • Sony® 1/2.8” Progressive Scan CMOS Sensor • Up to 30fps live view @ 2048 x 1536 (3.15 MegaPixel) • MegaPixel IR Corrected 2.8-12mm Motorized Varifocal Lens with 1 click focus for easy Configuration •...
  • Page 2 Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 3 Composition Cable Signal Mounting Template Sticker Camera Plastic Anchor: 6 x 30mm (3pcs) Coupler for Operating Instruction RJ45 Cable (1pc) Mounting Screw: 4 x 40mm (3pcs) Torque Wrench: 3mm (1pc) Wiring Connector (1pc) Dimensions 3.17” 9.72” 9.29”...
  • Page 4: Part Names

    Part Names SUNSHIELD BOLT SUNSHIELD POWER CABLE DUAL WINDOW BRACKET REAR CASE Cover Open FRONT CASE Micro SD Card Slot Reset Button CAUTION • Extreme care should be taken NOT to scratch the window in front of lens. • Care should be taken that the cable is NOT damaged, kinked or exposed in. •...
  • Page 5 Installation Instructions 1. Place the mounting template at the installation position and drill the ceiling or wall if needed. 2. Route the Power cable to the connecting place. 3. Place the camera bracket on pre-drilled position and attach using mounting screws (4x40mm). 4.
  • Page 6 Installation Instructions 90° 90° • on the wall • on the ceiling 3) Inclination limit (Horizontal image alignment): Inclination limited to +/-90° max. ±90° Torque Lock/Unlock wrench Screw ■ Adjustment of viewing angle with one-touch 3-Axis bracket Installation Instructions • Make sure the power is removed before installation. •...
  • Page 7 Detailed Specifications Sensor Sony 1/2.8” Progressive Scan CMOS Sensor Resolution 3.15 MegaPixel (2048x1536) Video Encoding H.264 / MJPEG triple streaming Frame Rate 30fps max IR Illuminators 30 850nm Dynamic Intensity IR LEDs IR Range 100’ Lens 2.8-12mm Motorized Varifocal Lens with 1 click focus for easy Configuration Corridor Format 90°...
  • Page 8 Version 1.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 November 2015 WWW.VITEKCCTV.COM...
