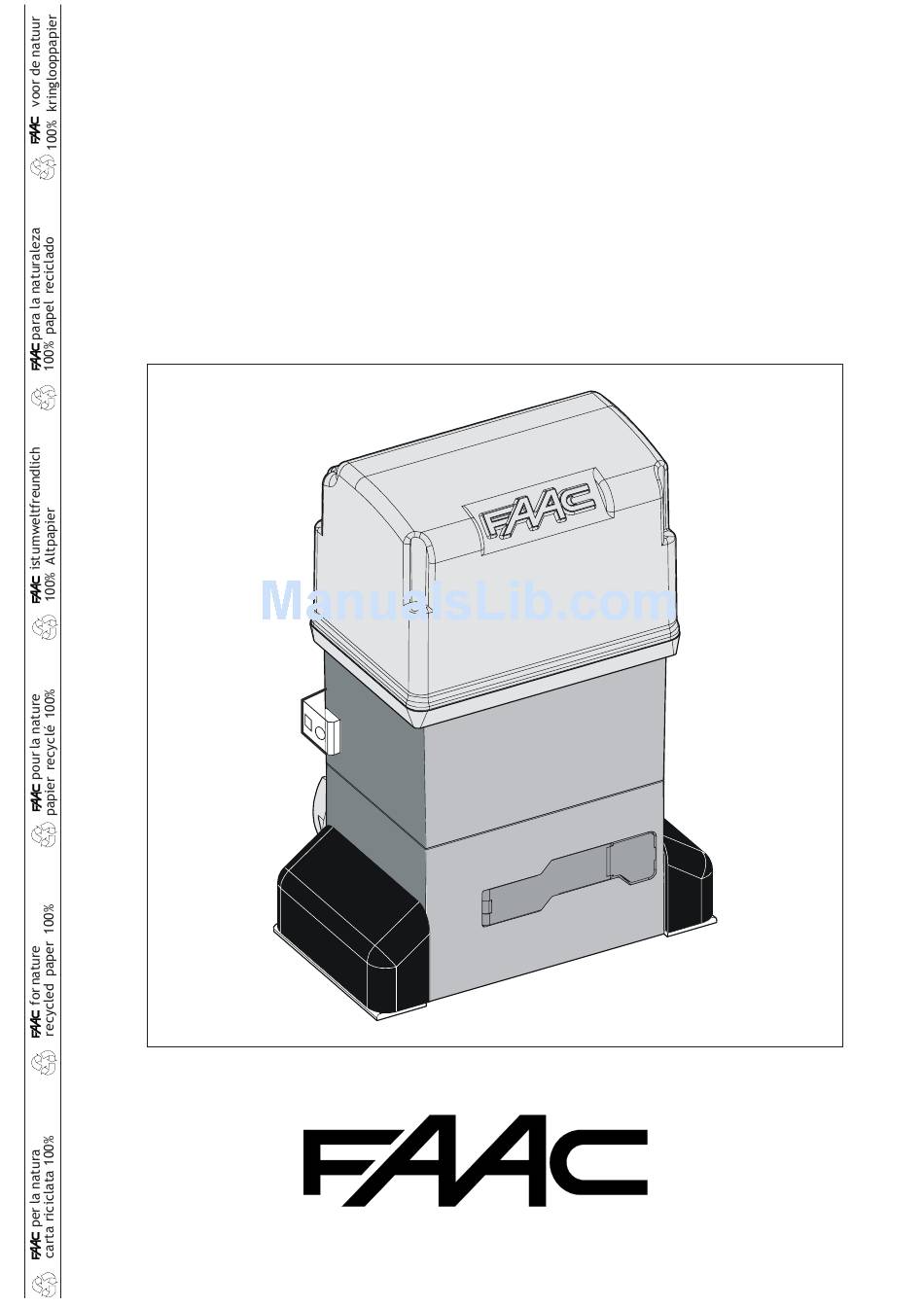

  • Page 1 844R 844R...

  • Page 2: Ec Declaration Of Conformity For Machines

    19) Do not in any way modify the components of the automated system. 6) FAAC declines all liability caused by improper use or use other than that for which the automated system was intended. 20) The installer shall supply all information concerning manual operation of...
  • Page 3 These instructions apply to the following model: Calculation formula: 844R 3Ph Ta + Tc The FAAC mod. 844R 3Ph automation for sliding gates is an %F = X 100 electromechanical operator powered by three-phase voltage, Ta + Tc + Tp + Ti...

  • Page 4: Electrical Equipment

    DIMENSIONS 3) Prepare a foundation plinth as in Fig.7 and enclose the foundation plate in a wall providing one or more sheaths for routing electric cables. Using a spirit level, check if the plate is perfectly level. Allow the cement to set. 4) Lay the electrical cables for connection to the accessories and power supply as in Fig.3.

  • Page 5: Mechanical Installation

    4.3. MECHANICAL INSTALLATION 1) Assemble, on the operator, the securing corners and the anti- max 5 mm. Fig. 11 vibration spacers as shown in Fig. 8. 2) Open the cover, unscrewing the securing screws. 3) Fit the operator on the plate, using the supplied washers and nuts as shown in Fig.
  • Page 6 4.5. INSTALLING THE CHAIN PINIONS In the chain application versions, a Z16 or Z20 chain pinion has to be assembled. Proceed as follows: - Fit the elastic pin on the shaft, using a hammer (Fig. 18) - Install the chain pinion on the shaft, making the pinion seats coincide with the elastic pin, and tighten the screws with the washers (Fig.

  • Page 7: Electric Connections

    START-UP 6.1. ELECTRIC CONNECTIONS ! ! ! ! ! Before attempting any work on the control unit (connections, programming, maintenance), always turn off power supply. Observe points 10, 11, 12, 13 and 14 of the GENERAL SAFETY OBLIGATIONS. Make all the electric connections on the board as shown in chapter 5, including earthing the operator (Fig.

  • Page 8: Final Operations

    FINAL OPERATIONS After completing installation, remove the breather screw (see fig. 24) and apply the danger signal tape on the top of the cover (Fig. 25). Fit the side panels by pressure, and secure the cover with the supplied screws. Hand the “User’s Guide”...

  • Page 9: Topping Up Oil

    MAINTENANCE Run a functional check of the system at least every 6 months, For repairs, contact FAAC authorised Repair Centres. with special attention to the efficiency of the safety devices (Including the thrust force of the operator) and release devices.

  • Page 10: General Safety Regulations

    Do not make any alterations to the components of the automation. Do not attempt any kind of repair of direct action whatever and contact qualified FAAC personnel only. Call in qualified personnel at least every 6 months to check the efficiency of the automation, safety devices and earth connection.
  • Page 11 Le descrizioni e le illustrazioni del presente manuale non sono impegnative. La FAAC si riserva il diritto, lasciando inalterate le caratteristiche essenziali dell’apparecchiatura, di apportare in qualunque momento e senza impegnarsi ad aggiornare la presente pubblicazione, le modifiche che essa ritiene convenienti per miglioramenti tecnici o per qualsiasi altra esigenza di carattere costruttivo o commerciale.
