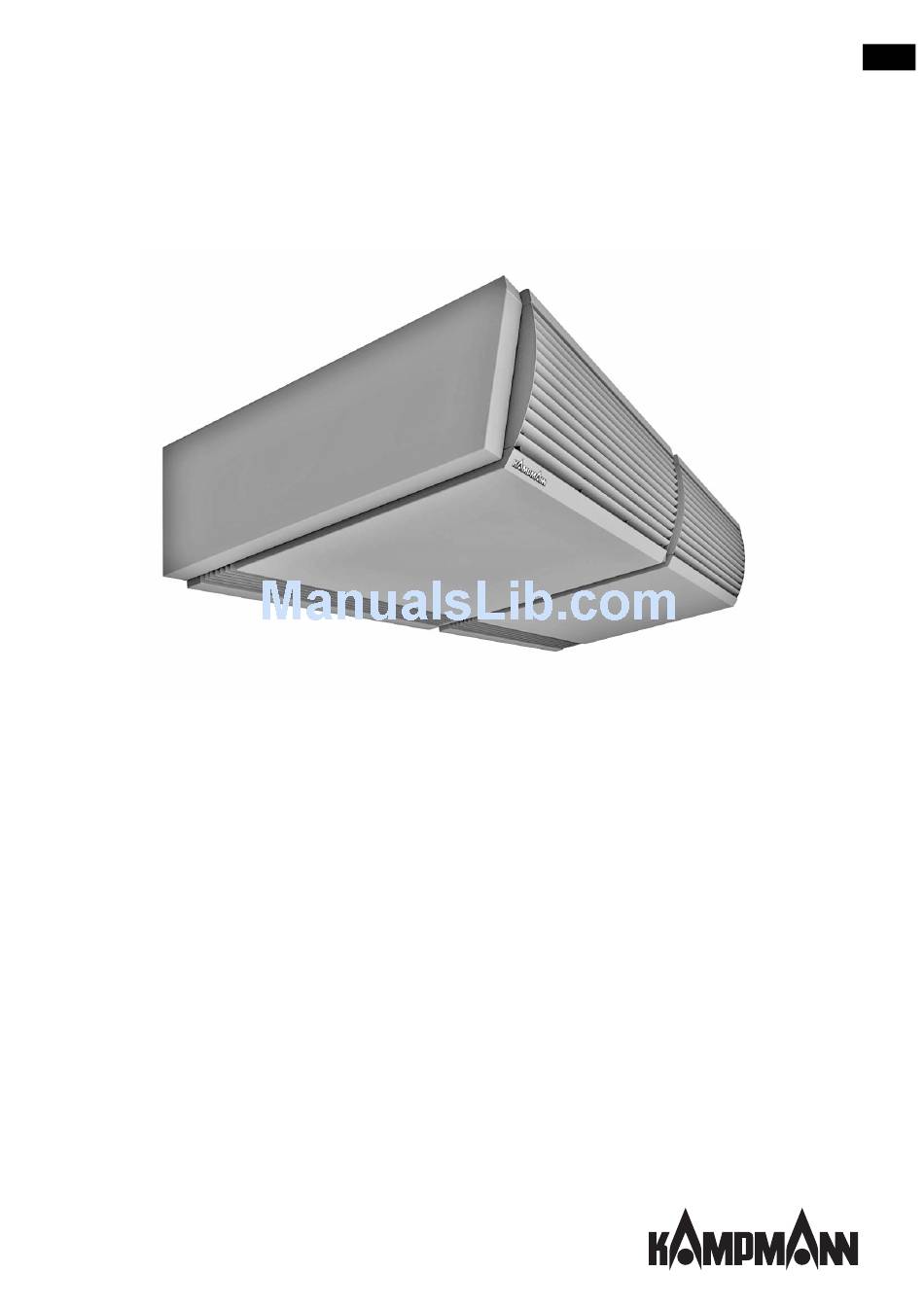

- Page 1 Door Air Curtain 2.51 Tandem 300-Electro Door Air Curtain Assembly and Installation Instructions Keep these instructions in a safe place for future reference! I 120/01/12/1 GB...
-
Page 3: Table Of Contents
Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions Table of Contents Explanation of the symbols: Caution! Danger! 1. Designated Use ............ -
Page 4: Designated Use
Assembly and Installation Instructions 1. Designated Use The Kampmann 300-Electro door air curtain has been built according to the latest state of technology and recognised safety regulations. Nonetheless, the use may be hazardous to persons or may have an adverse effect on the device or other material, if the devices are not installed and put to operation in an expert manner or if they are employed for undesignated use. -
Page 5: Transportation And Storage
Observe the valid fire-protection standards and guidelines. Modifications on the device Do not carry out any modifications, conversions or additions to the Tandem 300-Electro cassette door air curtain without prior harmonisation with the manufacturer as this may impair the safety and operation. Do not carry out any work on the device unless it has been described in these instructions. - Page 6 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions 3. Mounting points and minimum gaps x = Gap to be provided for installation and servicing of electrical connections! Tandem 300 1000 Tandem 300...
-
Page 7: Installing The Casing
Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions 4. Installation Casing extension Standard installation alternative Model Article-No. Piece 000011368070 (Pipe clip) 10, 15, 20, 25 000031513192 (Connecting panel) 000031513190 (Connecting panel) -
Page 8: Installation Of The Wall And Ceiling Brackets
Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions 5. Installation of the Wall and Ceiling Brackets Installation of the slot-in rail Detail Installation of the wall brackets, type 100990 Installation of the ceiling brackets, type 100995... -
Page 9: Technical Data
Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions 6. Installation of basic unit casing Please keep to the order of installation as described below! Caution! Please refer to page 6 if you are fitting a casing extension. Page 6! - Page 10 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions Install right-hand part Step 1 Step 2: tighten Caution! Part must be fitted before the possible installation if part Refer to the description of the following page.
- Page 11 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions Install part klick! Step 1 Step 2: tighten...
- Page 12 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions Install left-hand part Install parts (Part not illustrated) Step 1...
- Page 13 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions (Part not illustrated) Step 2 (Detail) (Part not illustrated) Step 3: tighten...
- Page 14 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions Install part...
- Page 15 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions Install part Step 1 Step 2...
- Page 16 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions Install parts (Part not illustrated) Step 1 klick! (Part not illustrated) Step 2...
-
Page 17: Maintenance
Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions 9. Maintenance Disable the unit prior to all maintenance work and protect it from being re-enabled. Caution! To avoid serious burns, make sure to allow the electric heating coil to cool down... -
Page 18: Electrical System
Lay the electric cables according to the enclosed component drawings. Safety temperature limiter Tandem 300-Electro door air curtains are equipped with safety temperature limiters (STL). They are used to protect the heat exchanger and the unit from overheating. The STL turns off the electric heating coil if the temperature controller fails and the temperature exceeds 50 °C +/- 5 K. -
Page 19: Radio Remote Control
Assembly and Installation Instructions Turning on the equipment Turn on the mains voltage. Start up the Tandem 300-Electro door air curtain using the connected radio remote control unit. Check the different fan stages by switching through them on the selector switch. - Page 20 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions 12.2 Operation via radio remote control Speed Summer mode, selection (air Description of the control panel: 0-1-2-3 recirculation) The control panel (emitter) has the following functions:...
- Page 21 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions Digital input 2 (fan min. limit) You can block fan stages 0 and 1 via an external, voltage-free make contact, e.g., a room or external thermostat.
- Page 22 Tandem 300-Electro Door Air Curtain 2.51 Door Air Curtain with Electric Heater Coils Assembly and Installation Instructions Radio remote control wiring, Tandem 300-Electro door air curtain Emitter Receiving aerial (in scope of supply) Radio remote control Type _ _ _ _ _ _ W...
- Page 24 Kampmann.de Kampmann GmbH . Friedrich-Ebert-Straße 128-130 . 49811 Lingen (Ems) . Germany Phone +49 591 7108-0 . info@kampmann.de 01-2012 GB All rights reserved. Reproduction, even of exceprts, is only permitted with the express approval of the manufacturer.
