3.3 Wiring

Proper grounding and wiring of all electrical equipment is important to help ensure the optimum
operation of the IXrouter and to provide additional electrical noise protection for your application.
Power Supply
The IXrouter is supplied with 12 or 24 VDC from an external power source. Be sure you use a safety
Low Power Supply (LPS) in accordance with clause 2.5 of UL/IEC 60950-1 Ed2. Standard: certified for
60°C and for altitudes up to 2000m. The safety LPS power supply is not part of the delivery.

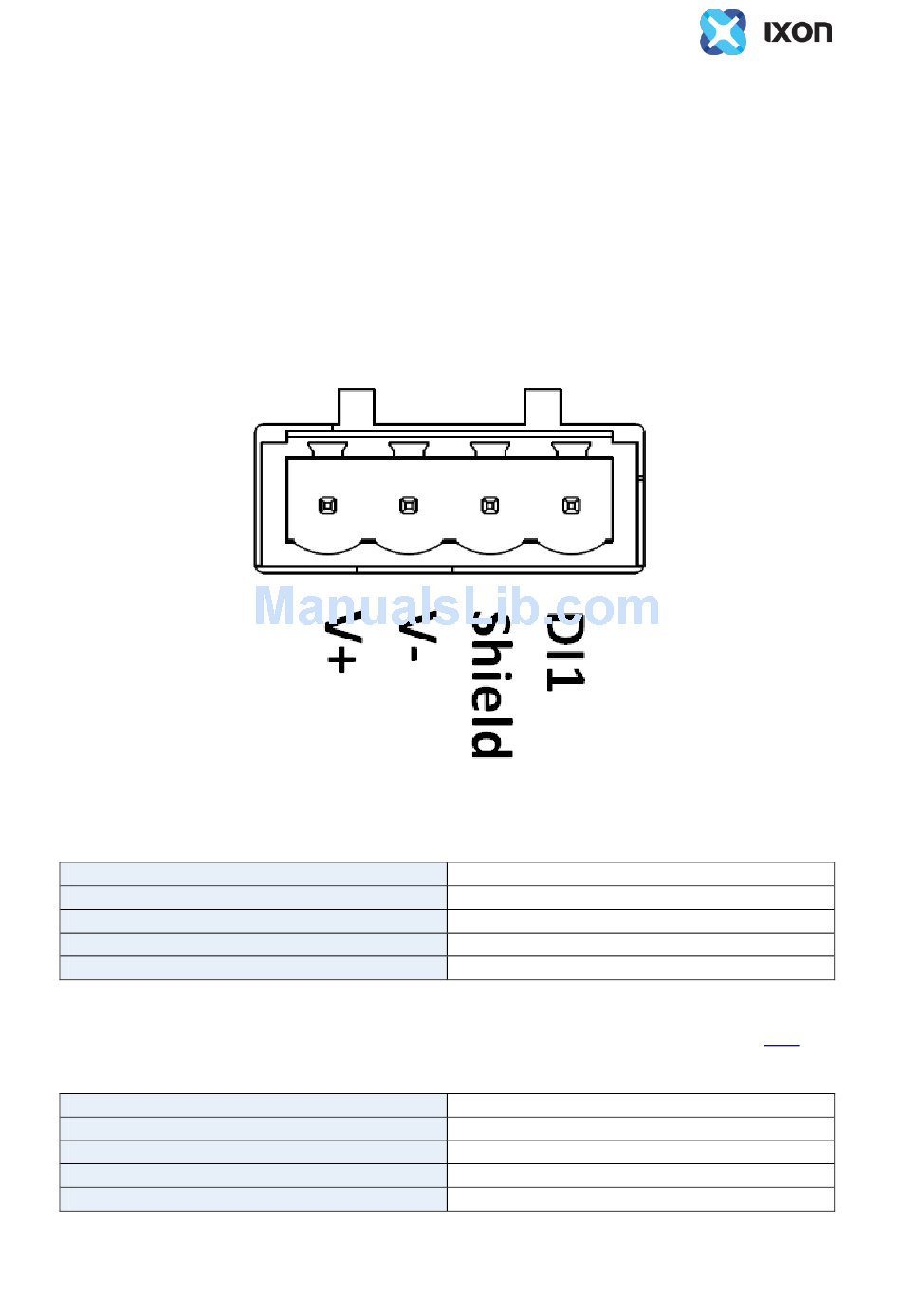

Image below shows the pin-out for the connector.
The IXrouter comes with a female 4-pin plug-in connector with screw connection (type: Weidmuller
BL 5.08/04/180 SN BK BX). The optimal wire diameter is 1.5mm² (22AWG - 12AWG).
Power supply voltage
Max input power
Internal voltage protection
Input protection
Isolation
Digital input
The function of the digital input is configurable via the IXplatform. Instructions can be found here.
The V- from the power supply is used as common ground
Type
DI voltage range
DI OFF state voltage range
DI ON state voltage range
DI ON state current range
12-24 VDC +/- 20%
10W max
29V max
Protected against polarity inversion
1.5 kV
Optocoupler
0-29 VDC
0-3 VDC
7-29 VDC
2-5 mA (typically)
