Label - Ixon IXrouter2 Installation Manual

Shield
Connect the Shield pin of the IXrouter with the protective earth conductor (PE), min. core diameter
Cu 1.5 mm².
Antenna
The antenna connector is a standard SMA screw connector. Contact your sales agent for optional
external antennas.

The product complies with the R&TTE directive, the FCC, the IC and Japan regulations related
to the GSM modems.

Absolute maximum antenna gain as per FCC's rules and regulations, 47 CFR:
o Part 22H : 5.22dBi;
o Part 27 : 3.31dBi;
o Part 24E : 6.45dBi.

Modifications cannot be made by the user if it influences the normal behavior of the device.

The user shall be informed about modem identification numbers according to their national
authorities:
This product contains part identified as follows by national authorities:
o FFC ID: XMR201510UC20
o IC ID: 10224A-201510UC20
o GITEKI (MIC) ID: 006-00382
o JATE ID: AD160001007

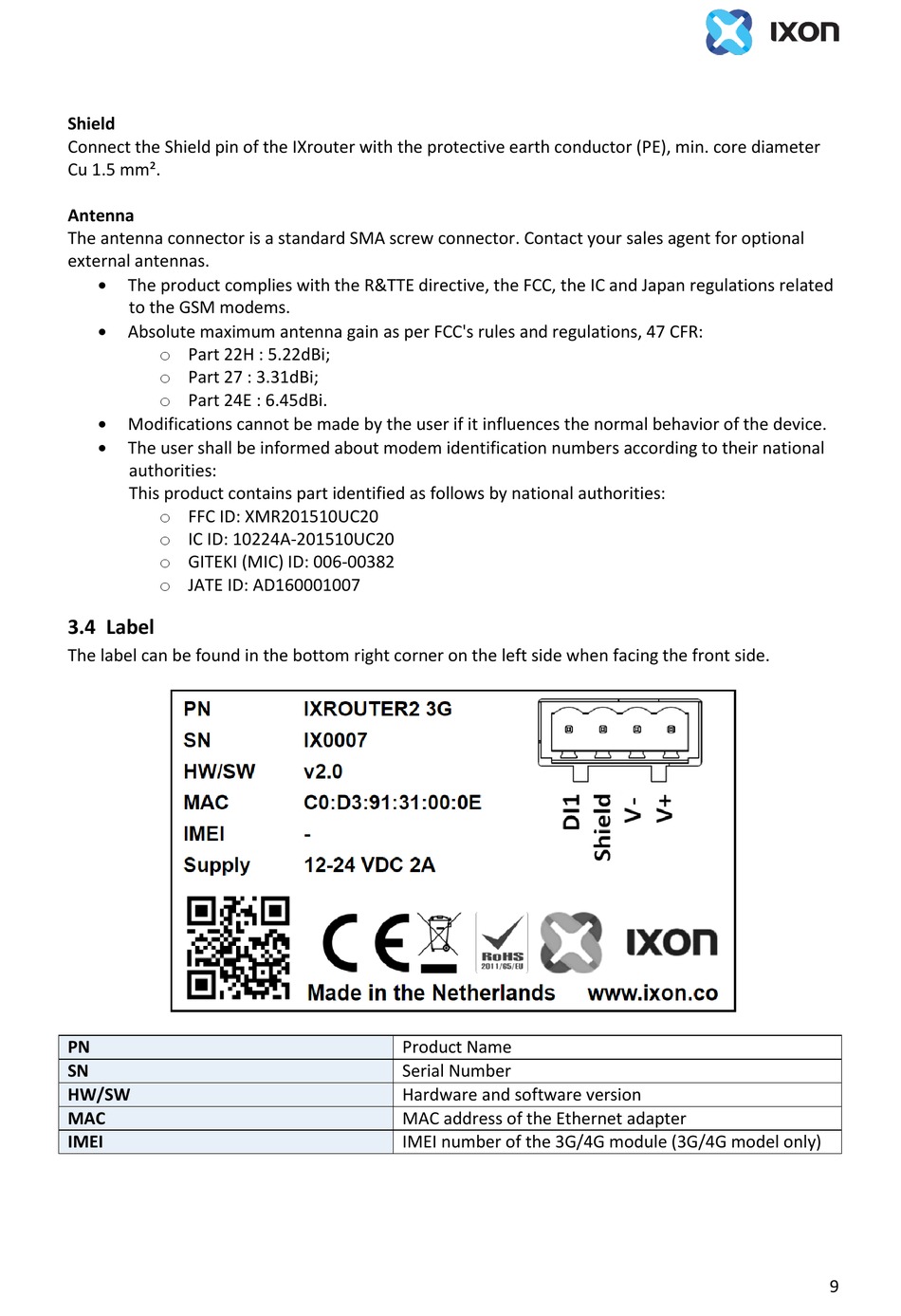

3.4 Label

The label can be found in the bottom right corner on the left side when facing the front side.
PN
SN
HW/SW
MAC
IMEI
Product Name
Serial Number
Hardware and software version
MAC address of the Ethernet adapter
IMEI number of the 3G/4G module (3G/4G model only)
9
