- Page 1 ES-1008PHE / GS-1008PHE Quick Installation Guide 07-2014 / v1.0...
- Page 2 COPYRIGHT Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
-
Page 3: Product Introduction

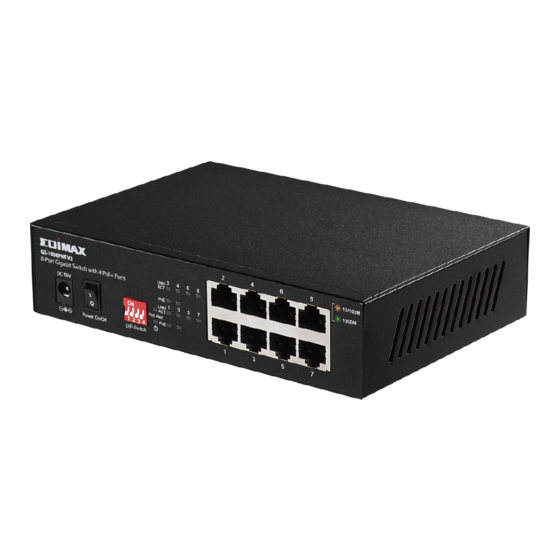

PRODUCT INTRODUCTION Model no.: ES-1008PHE: 8-Port Fast Ethernet Switch with 4 PoE Ports GS-1008PHE: 8-Port Gigabit Ethernet Switch with 4 PoE Ports Package Contents Before you start using this router, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): ... - Page 4 Front Panel Please refer to the following description for the front panel: *ES-1008PHE *GS-1008PHE LED Definitions: LED Name Light Description Status Switch powered on Switch not powered The port is connected to 100M network LINK/ACT The port is not connected or connected to 10M network Flashing The port is transmitting /receiving data.
- Page 5 Back Panel: *ES-1008PHE *GS-1008PHE Power Connector: Plug in the DC power plug from provided power adaptor to the 48V DC IN jack and plug the AC power plug to the wall socket using the included power cord. Terminal Block: Used for connection to auxiliary backup DC power,...
-
Page 6: Product Specifications
Product Specifications: Model ES-1008PHE GS-1008PHE IEEE 802.3 10BaseT IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3af PoE IEEE 802.3af PoE Standards IEEE 802.3x Flow Control IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient IEEE 802.3az Energy Efficient... -
Page 7: Product Installation
1. PRODUCT INSTALLATION I. Install the switch on a level surface that can support the weight of the unit and the relevant components, and attach the rubber feet to the bottom. The rubber feet cushion the switch and helps protect the case from scratches. II. - Page 8 Appendix: The standard RJ-45 Introduction RJ-45 Pin: Below is an indication of a standard RJ-45 socket and plug, and definition for the pins. RJ-45 Connector pin signal: RJ-45 Connector pin signal Pin no. MDI-II signal MDI-X signal POE - POE - POE - POE - POE +...
-
Page 9: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 10: Eu Declaration Of Conformity
Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanovení mi směrnic 2004/108/EC and 2006/95/EC Polski: Niniejszym (Edimax) oświadcza, że (ES-3305P / ES-3308P/ ES-3116P) jest zgodne z zasadniczymi wymaganiami oraz innymi stosownymi postanowieniami dyrektywy 2004/108/EC and 2006/95/EC Română: Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale... -
Page 11: Declaration Of Conformity
Declaration of Conformity We, Edimax Technology Co., LTD., declare under our sole responsibility, that the equipment described below complies with the requirements of the European Council directive (2004/108/EC and 2006/95/EC). Equipment : 8-Port Fast / Gigabit PoE Switch Model No.
